Home /Products/Servo Systems/Allen-Bradley 2094-BMP5-S 4A Kinetix 6000 Servo Drive Axis Module 324-528V rms 650V DC

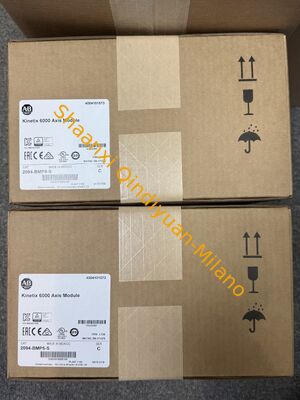

Allen-Bradley 2094-BMP5-S 4A Kinetix 6000 Servo Drive Axis Module 324-528V rms 650V DC

1
MOQ
Negotiable
Price
Allen-Bradley 2094-BMP5-S 4A Kinetix 6000 Servo Drive Axis Module 324-528V rms 650V DC
Features Gallery Product Description Chat Now
Features
Specifications
Protection Features: Overload, Overvoltage, Overtemperature
Carrier Frequency: 0.5khz-16khz
Controlmode: Position, Speed, Torque
Supply Voltage Type: AC
Package: 100% Original Package
Communication Protocol: CANopen, EtherCAT, Modbus
Color: Normal
Mountingtype: DIN Rail / Panel Mount
Ac Voltage: 208-230 / 240 V,220/380V,60V,AC220V
Type: Eletronic Component
Ratedcurrent: 10A
Voltage Level: AC220V/380V+-15%
Mounting Type: DIN Rail, Panel Mount
Power Rating: 2000W
Frequency: 50/60Hz
Highlight:

Kinetix 6000 servo drive module

,

Allen-Bradley 2094-BMP5-S servo drive

,

650V DC servo drive axis module
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley
Model Number: 2094-BMP5-S 4A
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 5PCS 1week
Product Description
Product Specifications
Part Number 2094-BMP5-S
Brand Allen-Bradley
Product Series Kinetix 6000
Product Type Servo Drive Axis Module
Input Voltage (3-Phase) 324-528V rms
Nominal Input Voltage DC 650V DC
Nominal Drive Voltage (3-Phase) 360/480V AC
Continuous Output Current (RMS) 2.8A
Continuous Output Current (0-Peak) 4.0A
Peak Output Current (RMS, Series A) 4.2A
Peak Output Current (RMS, Series B/C) 7.0A
Peak Output Current (0-Peak, Series A) 5.9A
Peak Output Current (0-Peak, Series B/C) 9.9A
Continuous Output Power 1.8kW
Voltage Class 400V
PWM Frequency 8kHz
Velocity Loop Bandwidth 500Hz
Current Loop Bandwidth 1300Hz
Internal Shunt (Continuous Power) 50W
Internal Shunt (Peak Power) 5.6kW
Internal Shunt Resistor 115Ω
Capacitance 75μF
Capacitive Energy Absorption 10J
Short-Circuit Current Rating 200000A (rms) symmetrical
Efficiency 98%
Protection Class IP30
Dimensions (WxHxD) 132mm×105mm×52mm
Net Weight 2.72kg (6.00 lbs)
Mounting Type 35mm DIN Rail Mount
Safety Feature Integrated Safe Torque-Off (STO)
Safety Certification ISO 13849-1 PLe / SIL 3
Operating Temperature -10~+70℃ (Wide Temp: -40~+85℃)
Storage Temperature -40~+80℃
Relative Humidity ≤90% RH (No Condensation)
Key Interfaces 2×Registration Input,1×Home Input,2×Over-Travel Input,1×Axis Enable Input; EtherNet/IP,EtherCAT,Profinet,Modbus
Life Cycle Status End of Life
Replacement Part Number 2198-D012-ERS3
