Home /Products/Servo Systems/1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class

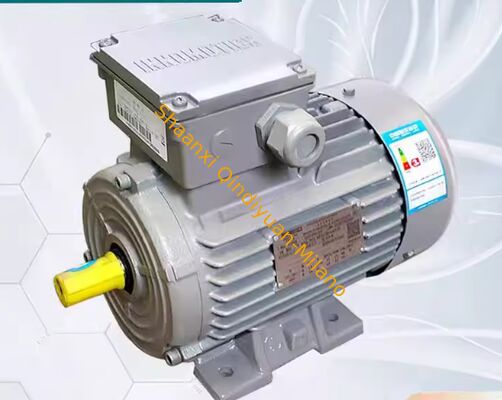

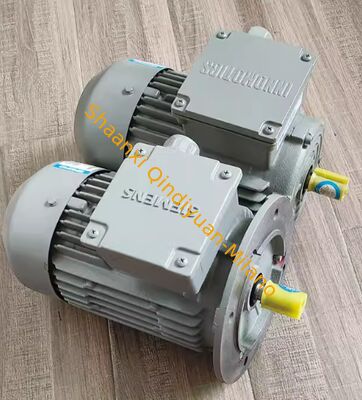

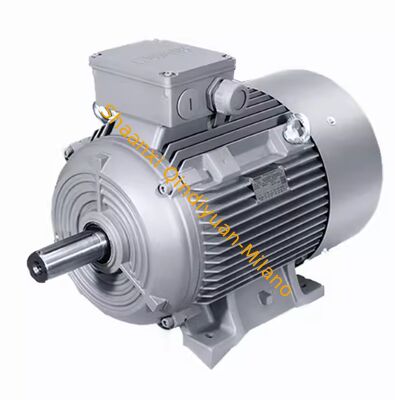

1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class

1pcs
MOQ
648USD/PCS
Price
1LE0003-1BA23-3FB4 Siemens Motor 4.0KW 50Hz 380V 3AC IE3 Efficiency Class
Features Gallery Product Description Chat Now
Features
Specifications
Depth: 105
Rated Current: 8A
Gear Ratio: 1/45.569
Lead Time: Approx 7 Days Normally
Thermal Resistance: 0.65 ℃/W
Servo Type: Analog Servo
Input Power Supply: 200 V AC
Speed: 3000 RPM
Temperature Rise: 80degree Max
Media Compatibility: Air, Gas, Water, Oil
Shaft Type: Straight Shaft
Torque: 0.64 Nm
Torque Constant: 0.35 Nm/A Rms
Material: Cast Iron
Rated Power: 400W
Highlight:

1LE0003-1BA23-3FB4

,

Siemens Motor 4.0KW

,

Siemens Motor IE3
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 1LE0003-1BA23-3FB4
Document: 1LE0001_1LE0003_motor_selec...de.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
Siemens 1LE0003-1BA23-3FB4 4.0KW 50Hz, 380V 3AC IE3 (IEC 60034-30) IC411 (Self-ventilated) as standard
Product Specifications
Model Number Poles (50Hz) Rated Power (kW) Mounting Type Cooling Type Protection Class Insulation Class Efficiency Class Duty Type
1LE0003-0DA22-1FA4 2 0.75 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA32-1FA4 2 1.1 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0EA02-1FA4 2 1.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0EA42-1FA4 2 2.2 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1AA42-1FA4 2 3.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1BA23-3FA4 2 4.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA03-3FA4 4 5.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA13-3FA4 4 7.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1DA23-3FA4 4 11.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1DA33-3FA4 4 15.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA22-1FB4 2 0.75 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA32-1FB4 2 1.1 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA03-3FB4 4 5.5 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA13-3FB4 4 7.5 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
Key Features
High efficiency IE3 class motors compliant with IEC 60034-30
Self-ventilated IC411 cooling system for reliable operation
IP55 protection class for dust and water resistance
Class F insulation for enhanced thermal performance
Available in multiple mounting configurations (B3 and B35)
Continuous duty type S1 for industrial applications
Power range from 0.75kW to 15.0kW for various requirements
