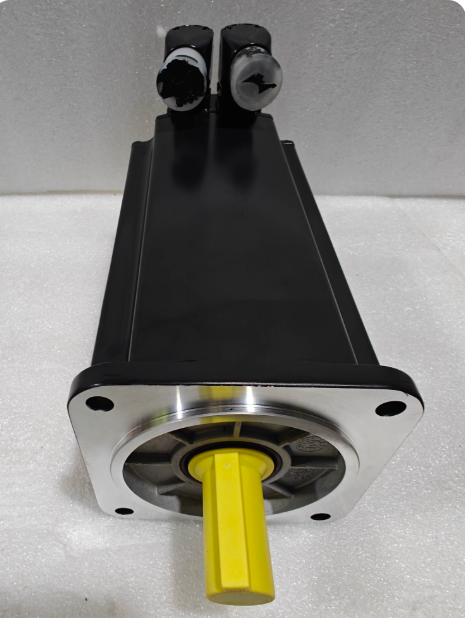

MSK061B-0300 Synchronous Servo Motor 3000 Rpm IP65 High Torque Density

1 pcs
MOQ
999 USD
Price
MSK061B-0300 Synchronous Servo Motor 3000 Rpm IP65 High Torque Density
Features Gallery Product Description Chat Now
Features
Specifications
Efficiency: IE 2
Working Voltage: DC6-28V
Hollow Shaft Diameter: Ø140 Mm - Ø340 Mm
Stock: Rich
Stepper Motor: 4 Wire Stepper Motor
Rated Torque: 1.27N.m
Rated Power: 750W
Frequency: 50HZ/60HZ
Width: 600
Condition: Brand New
Sample: Charged Sampled Available
Productgroup Id: 4,6
Shaft Diameter: 8 Mm
Rotation Angle: 360°
Weight: 1.5 Kg
Highlight:

MSK061B-0300

,

Synchronous Servo Motor 3000 Rpm

,

Synchronous Servo Motor IP65
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: MSK061B-0300
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 PCS
Product Description

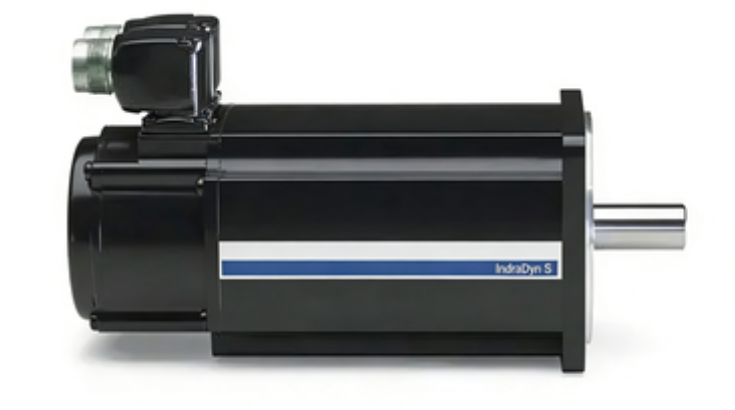

MSK061B-0300 Servo Motor
Complete Model Configuration
MSK061B-0300-NN-M1-UG0-NNNN
Model Breakdown
  • MSK - IndraDyn S Series Synchronous Servo Motor
  • 061 - Frame Size (61 mm diameter)
  • B - Medium Frame Length (optimal torque and dynamics balance)
  • 0300 - Maximum Speed 3000 min⁻¹
  • NN - Natural Cooling, No Oil Seal
  • M1 - Multi-Turn Absolute Encoder (Hiperface, 128 signal cycles/turn)
  • UG0 - No Electromagnetic Brake, Optical Shaft (No Keyway)
  • NNNN - No Additional Options
Technical Specifications
Parameter Value Description
Maximum Speed 3000 min⁻¹ Model "0300" specification
Continuous Stall Torque 14.0 Nm Rated operating torque at 100K
Maximum Torque 42.0 Nm Peak torque (3x continuous rating)
Rated Power 4.4 kW At 3000 rpm
Continuous Current 8.5 A Rated operating current at 100K
Maximum Current 25.5 A Peak current capability
Winding Inductance 4.8 mH Typical value
Moment of Inertia 0.00044 kg·m² Rotor inertia
Weight 12.5 kg Basic version without brake
Protection Rating IP65 Dustproof and water-resistant
Thermal Rating 155℃ Class F per EN 60034-1
Cooling Method Natural Cooling Fanless operation
Encoder Multi-turn Absolute Hiperface interface
Shaft End Optical Shaft No keyway, no oil seal
Brake None Electromagnetic brake-less design
Key Features
  • High Torque Density - Compact design delivers high torque output for space-constrained equipment
  • High Precision Positioning - Multi-turn absolute encoder with power-off position memory, eliminating zeroing requirements
  • High Dynamic Response - Low inertia enables rapid acceleration and deceleration for frequent start-stop applications
  • Robust Protection - IP65 rating ensures reliable operation in dusty and humid industrial environments
  • Strong Compatibility - Seamless integration with IndraDrive series drives, supporting Profinet, EtherCAT, and other bus systems
  • Flexible Installation - Encoder connector rotates 240° for simplified wiring and installation
Typical Applications
  • Small and medium-sized CNC machine tools (drilling, milling, grinding machines)
  • Industrial robotics (articulated, handling, palletizing robots)
  • Automated assembly lines and material handling equipment
  • Packaging machinery, printing machinery, and textile machinery
  • Electronic manufacturing and semiconductor equipment
  • Injection molding machines and hydraulic servo systems
