Home /Products/Servo Systems/0.4KW 8 Pole Servo Motor 230V / 400V 3000 Rpm Siemens 1FL6034‑2AF21‑1AA1

0.4KW 8 Pole Servo Motor 230V / 400V 3000 Rpm Siemens 1FL6034‑2AF21‑1AA1

1pcs
MOQ
328USD/PCS
Price
0.4KW 8 Pole Servo Motor 230V / 400V 3000 Rpm Siemens 1FL6034‑2AF21‑1AA1
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 100 X 75 X 60 Mm
CPU_Speed: 100 MHz
Communication_Protocols: Ethernet, Profibus, Modbus
Manufacturer: Siemens
Output_Type: Relay, Transistor, Analog
Power Supply Voltage: 100 – 240VAC.
Supply Voltage Type: AC
Scan_Time: 1 Ms
Number_of_I_O_Points: 32 Inputs / 32 Outputs
Color: Normal
Actual Value: Negotiabled Price
Output Typt: Relay
Programming_Language: Ladder Logic, Function Block Diagram
Output Method: Transistor
Highlight:

0.4KW Servo Motor

,

8 Pole Servo Motor

,

Siemens 1FL6034‑2AF21‑1AA1
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 1FL6034‑2AF21‑1AA1
Document: 1FL6094-1AC61-2AH1_datashee...zh.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description

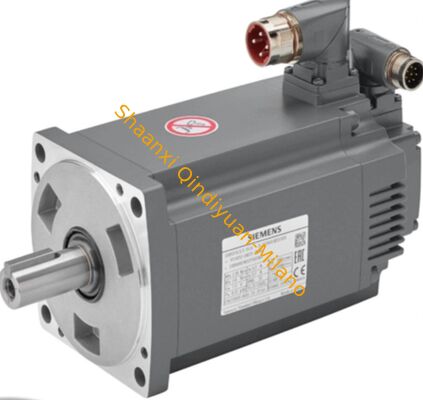

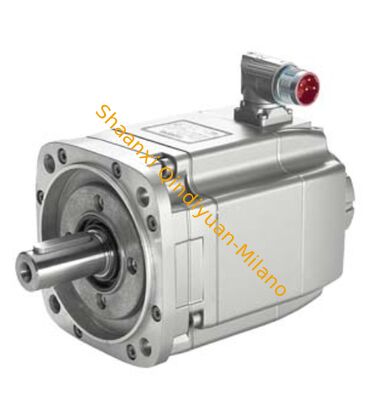

Siemens 1FL6034‑2AF21‑1AA1 0.4KW 8‑pole Motor body IP65; cable connector IP20 230V / 400V, 3000 rpm
Siemens 1FL6 Series Servo Motors Technical Specifications
Model Inertia Type Rated Power (kW) Rated Speed (rpm) Rated Torque (Nm) Peak Torque (Nm) Rated Current (A) Peak Current (A) Moment of Inertia (10^-4 kg*m²) Protection Degree Encoder Type Shaft Height (mm) Mounting Voltage (VAC)
1FL6022-2AF21-1AA1 Low Inertia 0.05 3000 0.16 0.48 0.25 0.75 0.031 IP65 Incremental 2500ppr 20 IM B5 230
1FL6024-2AF21-1AA1 Low Inertia 0.1 3000 0.32 0.96 0.5 1.5 0.052 IP65 Incremental 2500ppr 25 IM B5 230
1FL6032-2AF21-1AA1 Low Inertia 0.2 3000 0.64 1.92 0.8 2.4 0.105 IP65 Incremental 2500ppr 30 IM B5 230
1FL6034-2AF21-1AA1 Low Inertia 0.4 3000 1.27 3.81 1.4 4.2 0.214 IP65 Incremental 2500ppr 35 IM B5 230
1FL6042-1AF61-0AA1 Low Inertia 0.4 3000 1.27 3.81 1.4 4.2 0.351 IP65 Absolute 20bit 45 IM B5 400
1FL6042-1AF61-2AH1 Low Inertia 0.4 3000 1.27 3.81 1.4 4.2 0.351 IP65 Incremental 2500ppr 45 IM B5 400
1FL6044-1AF61-0AA1 Low Inertia 0.75 3000 2.39 7.17 2.6 7.8 0.52 IP65 Absolute 20bit 45 IM B5 400
1FL6052-1AF61-0AA1 Low Inertia 0.75 3000 2.39 7.17 2.6 7.8 0.897 IP65 Absolute 20bit 55 IM B5 400
1FL6054-1AF61-0AA1 Low Inertia 1.0 3000 3.18 9.54 4.7 14.2 1.15 IP65 Absolute 20bit 55 IM B5 400
1FL6062-1AC61-0AA1 High Inertia 1.0 2000 4.77 14.3 6.3 18.9 2.04 IP65 Absolute 20bit 65 IM B5 400
1FL6064-1AC61-0AA1 High Inertia 1.5 2000 7.16 21.5 10.6 31.8 2.62 IP65 Absolute 20bit 65 IM B5 400
1FL6066-1AC61-2LG1 High Inertia 1.75 2000 8.36 25.1 11.6 34.8 3.2 IP65 Absolute 20bit 65 IM B5 400
1FL6072-1AC61-0AA1 High Inertia 2.0 2000 9.55 28.7 13.2 39.6 4.5 IP65 Absolute 20bit 75 IM B5 400
1FL6074-1AC61-0AA1 High Inertia 2.5 2000 11.9 35.7 16.5 49.5 6.2 IP65 Absolute 20bit 75 IM B5 400
1FL6082-1AC61-0AA1 High Inertia 3.0 2000 14.3 42.9 19.8 59.4 8.5 IP65 Absolute 20bit 85 IM B5 400
1FL6084-1AC61-0AA1 High Inertia 3.5 2000 16.7 50.1 23.1 69.3 11.2 IP65 Absolute 20bit 85 IM B5 400
1FL6092-1AC61-2AB1 High Inertia 3.5 2000 16.7 50.1 23.1 69.3 14.8 IP65 Incremental 2500ppr 90 IM B5 400
1FL6094-1AC61-0AA1 High Inertia 4.0 2000 19.1 57.3 26.4 79.2 18.5 IP65 Absolute 20bit 90 IM B5 400
Additional Product Specifications
  • Motor Type: Permanent‑magnet synchronous servo motor
  • Poles: All models are 8‑pole (standard for 1FL6 series)
  • Protection: Motor body IP65; cable connector IP20
  • Mounting: Standard IM B5 (flange mount); also available IM V1 / IM V3
  • Voltage: 230 VAC (low power) / 400 VAC (medium/high power)
