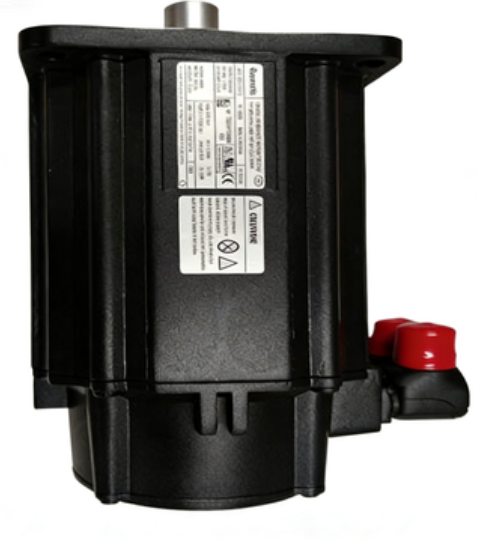

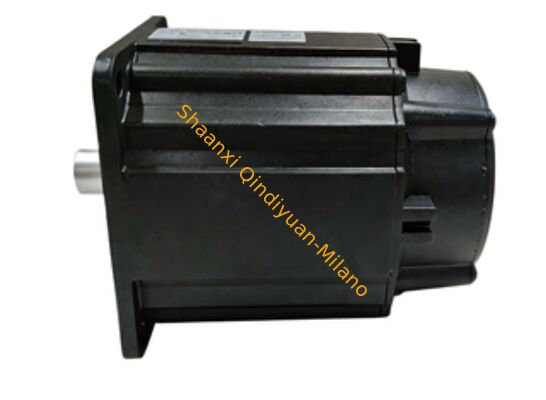

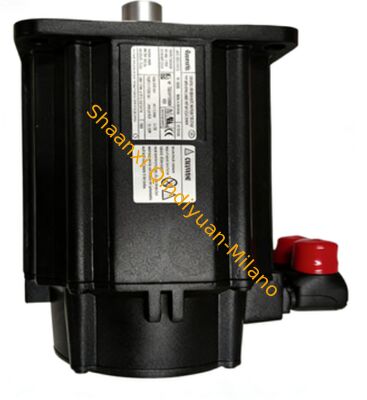

3000 Rpm IP65 Synchronous Servo Motor MSK100B-0300-NN-M1-AG0-NNNN

1 pcs
MOQ
999 USD
Price
3000 Rpm IP65 Synchronous Servo Motor MSK100B-0300-NN-M1-AG0-NNNN
Features Gallery Product Description Chat Now
Features
Specifications
Maximum Speed: 8000 Rpm
Speed Fbk Sel: Incremental
The Gear Material: Metal
Rated Speed: 1500rpm
Factory Outlet: Factory Outlet
Power Supply Voltage: +5 V, +12 V, +5 VSBY
Temperature Rise: 80degree Max
Motor Type: Coreless Motor
Use: Industrial
Continuous Torque: 1.41 Nm
Sample: Charged Sampled Available
Ac Voltage: 208-230 / 240 V
Quality: High Quality
Motor: Stepper Motor
Shipping Date: Within 3 Days After Payment
Highlight:

MSK100B-0300-NN-M1-AG0-NNNN

,

3000 Rpm Synchronous Servo Motor

,

IP65 Synchronous Servo Motor
Basic Infomation
Brand Name: Rexroth
Certification: Brand new original
Model Number: MSK100B-0300-NN-M1-AG0-NNNN
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
MSK100B-0300-NN-M1-AG0-NNNN Servo Motor Technical Specifications
Core Technical Parameters
Parameter Item Value Description
Maximum Speed   3000 min⁻¹ Model "0300" Corresponds
Continuous Stall Torque (100K) 33.0 Nm Rated Operating Torque
Maximum Torque (Peak) 102.0 Nm Approximately 3 times the continuous torque
Rated Power   Approximately 10.4 kW Calculated at 3000 rpm
Continuous Current (100K) 20.5 A Rated Operating Current
Maximum Current   78.3 A Peak Current
Winding Inductance   5.5 mH Typical Value
Moment of Inertia   Approximately 0.012 kg・m² Rotor Inertia
Weight   Approximately 32 kg Basic Version without Brake
Protection Rating   IP65 Dustproof and Water Jet Proof
Thermal Rating   155℃ (F Class) EN 60034-1
Cooling Method   Natural Cooling Fanless / Liquid Cooling
Encoder M1 (Multi-turn Absolute Value)   Hiperface interface, 128 signal cycles/revolution
Shaft End   with keyway (DIN standard) Standard mechanical interface
Brake None (AG0)   No electromagnetic brake
Model Number Breakdown
MSK: IndraDyn S series synchronous servo motor
100: Frame size (diameter approximately 100mm)
B: Frame length (medium length, balancing torque and dynamics)
0300: Maximum speed 3000 rpm
NN: No holding brake, no oil seal
M1: Multi-turn absolute encoder (Hiperface)
AG0: No built-in brake (basic configuration)
NNNN: No additional options (no explosion-proof, no liquid cooling, no special communication)
Product Features
  • Ultra-high torque density: Small size, high torque output, suitable for heavy-duty equipment with limited space
  • High-precision positioning: Multi-turn absolute encoder, power-off position memory, no need for zeroing
  • High dynamic response: Low inertia, rapid acceleration and deceleration, suitable for frequent starts and stops and precise positioning
  • High protection: IP65 rating, suitable for dusty and humid industrial environments
  • Strong compatibility: Compatible with IndraDrive series drives, supports Profinet and EtherCAT Bus-type bus
  • Flexible installation: The encoder connector is rotatable for easy wiring
Typical Applications
  • Heavy-duty CNC machine tools (gantry milling machines, machining centers, grinding machines)
  • Industrial robots (articulated, handling, palletizing)
  • Automated assembly lines, heavy material handling equipment
  • Packaging machinery, printing machinery, textile machinery
  • Injection molding machines, die-casting machines, hydraulic servo systems
  • Heavy-duty production lines in papermaking, printing, tobacco, etc.
