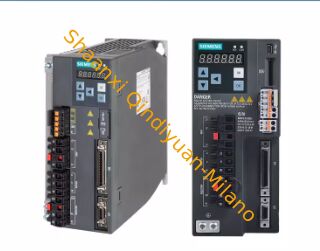

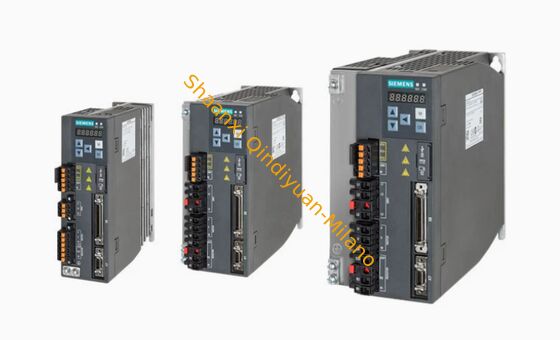

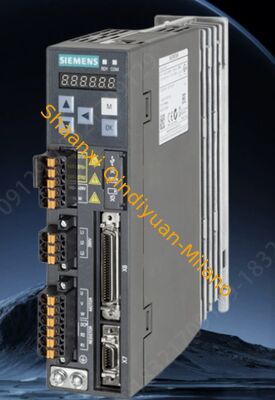

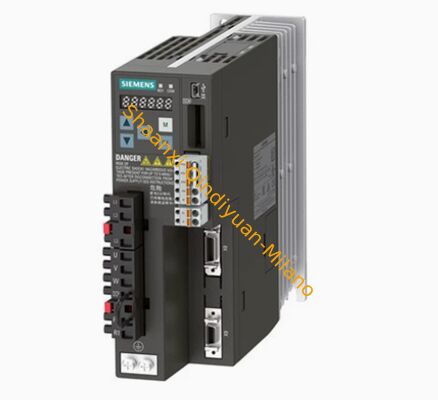

Siemens 6SL3210-5FB10-4UA1 Servo Drive 0.4kW 200 - 240V 1/3 Phase AC PROFINET Interface

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-5FB10-4UA1 Servo Drive 0.4kW 200 - 240V 1/3 Phase AC PROFINET Interface
Features Gallery Product Description Chat Now
Features
Specifications
Point: 14 (8DI+6DO)
Expansion_Modules_Supported: True
Part Type: Sysmac CPM2A
Input_Voltage: 24 V DC
Part No: 767-1501
Number_of_Inputs: 14
Manufacturer: Siemens
Actual Price: Based On Offer
Mounting_Type: DIN Rail
Model: S7-1200
Operating_Temperature_Range: -20°C To 60°C
Output Method: Transistor
Output Typt: Relay
CPU_Type: Microprocessor-based
Weight: 0.5 KG
Highlight:

6SL3210-5FB10-4UA1

,

Servo Drive 0.4kW

,

Servo Drive 240V
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB10-4UA1
Document: A700000007270925.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Product Specifications
General Information
Product Series SINAMICS V90
Order Number 6SL3210-5FB10-4UA1
Product Description Servo Drive, 0.4 kW, 200-240 V 1/3-phase AC, PROFINET interface, Size B
Product Status Active (PM300)
Frame Size Size B
Cooling Type Natural Convection Cooling
Electrical Input
Input Voltage 200-240 V AC, 1/3-phase
Voltage Tolerance -15% / +10%
Input Frequency 45-66 Hz
Input Current (Single-phase) 5.0 A
Input Current (Three-phase) 3.0 A
Output Specifications
Output Voltage 0 - Input Voltage (Max. 212 V)
Rated Output Current (I2N) 2.6 A
Peak Output Current 7.8 A (3 sec)
Output Frequency 0-330 Hz
Output Power 0.4 kW
Output Phase 3-phase AC
Control & Interfaces
Control Modes Position Control, Speed Control, Torque Control
Communication Interfaces PROFINET IO, MODBUS RTU, USS
Digital Inputs 10 DI
Digital Outputs 6 DO
Analog Inputs 2 AI
Analog Outputs 2 AO
Mechanical Data
Width (W) 55 mm
Height (H) 170 mm
Depth (D) 170 mm
Weight Approx. 1.7 kg
Mounting DIN Rail / Wall Mount
Environmental Conditions
Operating Temperature -10°C to +40°C
Storage Temperature -25°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Protection Class IP20 (enclosed)
Altitude Up to 2000 m (no derating)
Standards & Approvals
CE Mark Yes
UL Certification Yes
CSA Certification Yes
RoHS Compliance Yes
