FANUC A05B-2256-C100 Robot Handheld Device with 16 Digital Inputs IP67 Protection and LED Status Indicator

1
MOQ
230$
Price
FANUC A05B-2256-C100 Robot Handheld Device with 16 Digital Inputs IP67 Protection and LED Status Indicator
Features Gallery Product Description Chat Now
Features
Specifications
Features: High Resolution
Frequency: 50/60 Hz
Ingress Protection: IP67
Safety Outputs: 3 N/O, 1 N/C
Mpu Points: 12 (8DI + 4DO)
Operating Voltage: /
Wide Power Range: 230V / 400V / 480V
Industry: Manufacturing
Response Frequency: Other
Indicator: LED Status Indicator
Numberofoutputchannels: 16
Productname: Industrial Control Automation
Category: Automation Equipment
Installationtype: Panel Mounted, Rack Mounted
Numberofinputs: 16 Digital Inputs
Highlight:

FANUC robot handheld device with IP67 protection

,

FANUC A05B-2256-C100 with 16 digital inputs

,

industrial handheld device with LED status indicator
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A05B-2256-C100
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC A05B-2256-C100 ROBOT HANDHELD DEVICE REPAIR

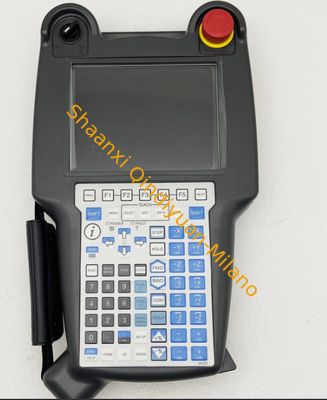

The FANUC A05B-2256-C100 is a handheld programming and operation terminal (teach pendant) used with FANUC industrial robot systems. Repair services for this device typically cover fault diagnosis, component-level repairs, system testing, and preventive maintenance.
Common Failure Modes
Due to harsh industrial environments and prolonged usage, the following issues are frequently encountered:
Category Typical Symptoms
Display failures White screen, black screen, flickering, distorted graphics, no backlight, or dim display
Touchscreen / keypad issues Unresponsive touch, partial touch failure, stuck or non-responsive physical buttons, delayed input
Communication faults No connection to the robot controller, intermittent disconnection, communication timeout errors
Physical damage Cracked screen glass, broken housing, damaged emergency stop button, worn keypad membrane, broken or frayed cables
Power / board failures Device fails to power on, random reboots, burning smell, or visible capacitor/component damage on the mainboard
Troubleshooting & Repair Procedure
A systematic approach is followed for diagnosis and repair:
  1. Safety & Preparation
    • Disconnect the teach pendant from the robot controller.
    • Use anti-static measures (ESD wrist strap, mat) before opening the unit.
    • Back up all robot programs and system parameters via the controller before any software reset.
  2. External Inspection
    • Check the connecting cable for breaks, kinks, or worn insulation.
    • Inspect the connector pins for bending, corrosion, or oxidation.
    • Test with a known-good cable and power supply if available.
  3. Display Repair
    • Re-seat or clean the LCD flex cable connector.
    • Test backlight inverter / LED driver circuits.
    • If the LCD panel is cracked or defective, replace it with an identical FANUC-compatible panel.
  4. Keypad & Touchscreen Repair
    • Clean carbon contacts on the rubber keypad membrane.
    • Replace worn or torn membrane sheets.
    • For resistive touchscreens, recalibrate or replace the touch panel if the digitizer is faulty.
  5. Mainboard & Circuit Repair
    • Visually inspect for swollen capacitors, burnt traces, or damaged ICs.
    • Check voltage regulation circuits (fuses, DC-DC converters).
    • Re-solder dry or cracked solder joints.
    • Replace faulty power management or communication driver chips.
  6. Software / Firmware
    • Reload or upgrade firmware if corruption is suspected (requires FANUC tools and authorization).
    • Perform system reset only as a last resort, and only after full data backup.
  7. Post-Repair Testing
    • Power-on test and verify display, backlight, and keypad functions.
    • Connect to a test robot controller to confirm communication (RS-422 / Ethernet, depending on version).
    • Run functional tests: E-stop, enable switch, mode selector, and all programming keys.
    • Perform burn-in test for 24–48 hours to ensure stability.
Professional Repair Services
Many third-party service providers offer specialized repair for this model, often with faster turnaround and lower cost than OEM. Typical services include:
Service Details
On-site diagnosis Initial evaluation and quotation
Component-level repair Board-level troubleshooting and replacement
Replacement parts Genuine or compatible LCD, touch panels, keypads, cables, and connectors
Refurbishment Full cleaning, housing replacement, and firmware update
Warranty Usually 3–12 months on repaired units
Note: When choosing a third-party repair vendor, verify they have experience with FANUC systems and access to proper test equipment (e.g., test racks with FANUC controllers).
Preventive Maintenance Tips
To extend the lifespan of the A05B-2256-C100:
  • Keep the pendant in a clean, dry environment when not in use.
  • Use a protective cover or holster to prevent drops and impact.
  • Avoid using sharp objects (screwdrivers, pens) on the touchscreen.
  • Regularly inspect and gently clean the cable and connectors.
  • Replace worn membrane keypads proactively before they fail.
Where to Get Repair Services
If you are in China, providers such as Guangzhou FANUC Robot Repair, Shanghai Yangguang Electronics, and others offer mail-in or on-site repair. For international locations, FANUC authorized service centers and certified independent repair shops are available.
Additional Resources Available
Let me know if you need:
  • A formal repair quotation template in English
  • A checklist for shipping the pendant for repair
  • Technical pinout details for the communication cable
  • Step-by-step disassembly guide (with caution notes)
