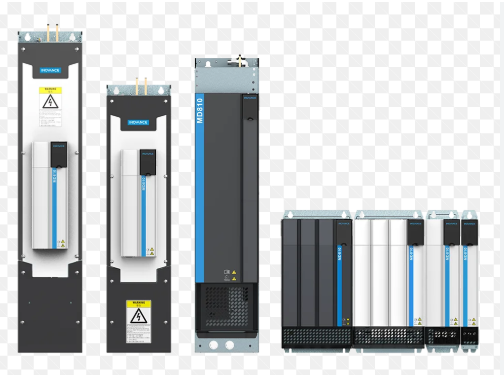

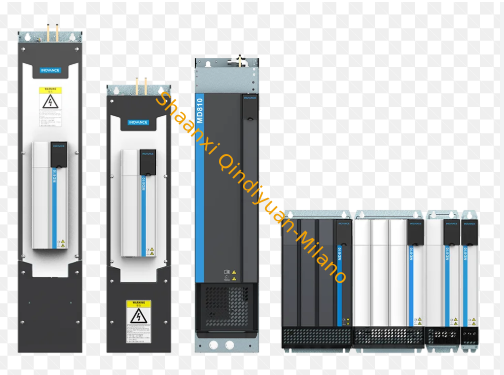

INOVANCE MD810-50M4TD1.5G200 Compact Dual-Axis Drive EtherCAT High-Density Module

The MD810-50M4TD1.5G200 is a compact dual-axis precision servo drive module from INOVANCE’s MD810 series, rated at 50A with integrated twin-axis output in a single book-type housing with 220V class three-phase input. By packaging two independent servo axes into one module with shared DC-bus and EtherCAT real-time communication, this drive maximizes cabinet density for space-constrained multi-axis machines. It is ideally suited for compact pick-and-place modules, laboratory automation instruments, medical diagnostic equipment, semiconductor die bonders, small-part assembly workcells, 3C electronic manufacturing lines and multi-head dispensing systems where ultra-compact footprint, simplified wiring and precision dual-axis control within tight machine envelopes are essential design and performance requirements.

Compact Dual-Axis Drive — Two independent high-precision servo axes integrated into one ultra-compact book-type module with 24-bit encoder support per channel, achieving maximum axis density for space-critical machine designs.

EtherCAT High-Density Module — Single EtherCAT node controlling both axes with deterministic sub-millisecond synchronization halves the network node count, simplifies topology and accelerates commissioning for multi-axis systems.

Shared DC-Bus Efficiency — Common DC-bus architecture with intelligent energy sharing between both channels recovers regenerative energy internally, reducing thermal stress and improving overall system energy efficiency.

Independent Per-Channel Control — Dedicated auto-tuning per axis with independent inertia identification, adaptive notch filtering and gain scheduling ensures optimal dynamic performance for each connected motor and load combination.

Reduced Wiring & Assembly — Single power connection, single EtherCAT cable and shared cooling reduce panel wiring by up to 40% versus discrete single-axis drives, accelerating machine assembly and minimizing potential failure points.

Dual-Channel Functional Safety — Independent STO (SIL3/PLe) per axis with SS1 and SS2 integrated as standard, enabling per-axis safe torque disabling for collaborative and semi-automated precision manufacturing cells.

Compact Pick-and-Place & Linear Transfer Modules, Laboratory Automation & Liquid Handling Instruments, Medical Diagnostic & In-Vitro Testing Equipment, Semiconductor Die Bonding & Wire Bonding Systems, Small-Part Assembly & Screw Driving Workcells, 3C Electronic Component Manufacturing Lines, Multi-Head Dispensing & Adhesive Application Systems, Precision Optics Alignment & Lens Assembly Equipment.
