Home /Products/Variable Frequency Drives VFD/Schneider ATV320U07N4C Variable Frequency Drives VFD 0.75KW 1HP IP20 Protection Rating

Schneider ATV320U07N4C Variable Frequency Drives VFD 0.75KW 1HP IP20 Protection Rating

1 pcs
MOQ
Negotiable
Price
Schneider ATV320U07N4C Variable Frequency Drives VFD 0.75KW 1HP IP20 Protection Rating
Features Gallery Product Description Chat Now
Features
Specifications
Starting Torque: 150% At 0.5 Hz
Input Voltage: 200-480 V AC
Overload Capacity: 150% For 1 Minute
Dimensions: Varies By Model
Output Frequency: 0-400 Hz
Input Frequency: 50/60 Hz
Operating Temperature Range: -10°C To 50°C
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Display Type: LCD Or LED Display
Communication Protocols: Modbus, Profibus, Ethernet/IP
Harmonic Distortion: <5%
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP54
Cooling Method: Forced Air Cooling
Output Voltage: 0-480 V AC
Highlight:

Schneider ATV320U07N4C

,

Variable Frequency Drives VFD 0.75KW

,

Variable Frequency Drives VFD 1HP
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: ATV320U07N4C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

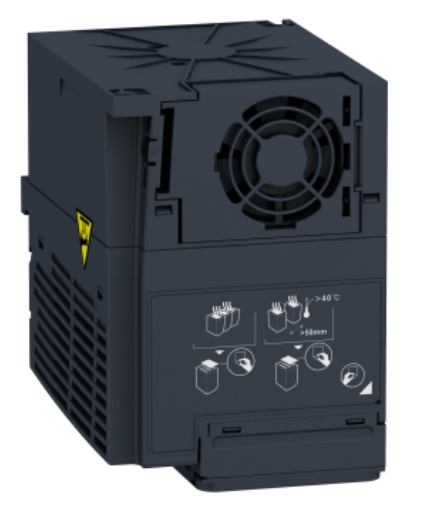

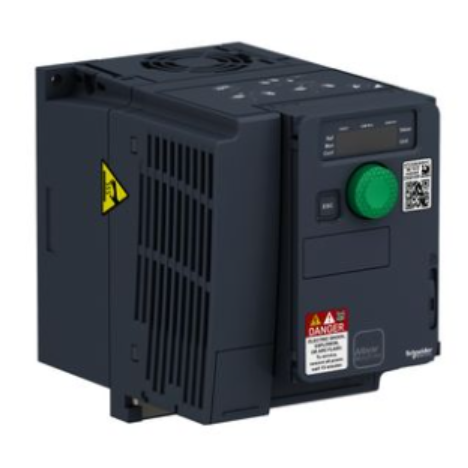

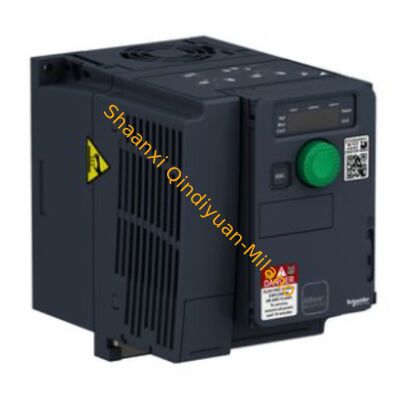

Schneider ATV320U07N4C Variable Frequency Drive
Electrical Specifications
Parameter Value
Rated Power 0.75 kW (1 HP)
Rated Current 2.3 A
Input Voltage Three-phase 380–500 V AC
Output Frequency 0.1–599 Hz
Control Method Sensorless Vector Control (SVC), V/F Control
Protection Rating IP20 (NEMA 1)
Cooling Method Natural Air Cooling
Installation Method Vertical Installation (±10°)
Communication Interface Modbus, CANopen (standard); optional EtherNet/IP, Profinet, EtherCAT
Safety Functions 5 built-in safety functions (STO, etc.)
Physical and Logistics Specifications
  • Net Weight: 1.2 kg
  • Gross Weight (including standard packaging): Approx. 1.7 kg
  • Dimensions (W*H*D): 105 * 142 * 158 mm
  • Packaging Dimensions: Approx. 150 * 200 * 200 mm
  • Volume: Approx. 0.006 m³
  • Battery: No battery, no built-in battery
Model Designation Breakdown
ATV320U07N4C
  • ATV320: Altivar Machine 320 Series
  • U: Compact
  • 07: 0.75 kW power rating
  • N: 380–500 V three-phase input
  • 4: 4-level control (standard Modbus/CANopen)
  • C: Standard version (IP20)
Certifications and Standards
CE, UL, CSA, EAC, RCM, NOM, KC
Complies with IEC 61800-5-1, IEC 61800-3, IEC 60721-3-3 3C3 coating
