Home /Products/Variable Frequency Drives VFD/Schneider ATV320U22N4C 2.2kW Variable Frequency Drives VFD With Modbus Communication

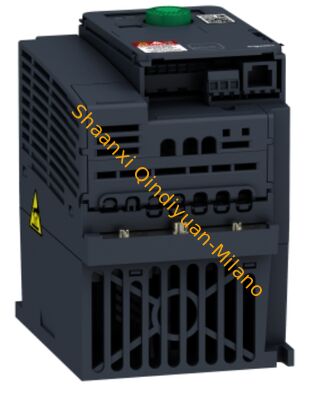

Schneider ATV320U22N4C 2.2kW Variable Frequency Drives VFD With Modbus Communication

1 pcs
MOQ
Negotiable
Price
Schneider ATV320U22N4C 2.2kW Variable Frequency Drives VFD With Modbus Communication
Features Gallery Product Description Chat Now
Features
Specifications
Starting Torque: 150% At 0.5 Hz
Input Voltage: 200-480 V AC
Overload Capacity: 150% For 1 Minute
Dimensions: Varies By Model
Output Frequency: 0-400 Hz
Input Frequency: 50/60 Hz
Operating Temperature Range: -10°C To 50°C
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Display Type: LCD Or LED Display
Communication Protocols: Modbus, Profibus, Ethernet/IP
Harmonic Distortion: <5%
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP54
Cooling Method: Forced Air Cooling
Output Voltage: 0-480 V AC
Highlight:

Schneider ATV320U22N4C

,

2.2kW Variable Frequency Drives VFD

,

Modbus Variable Frequency Drives VFD
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: ATV320U22N4C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

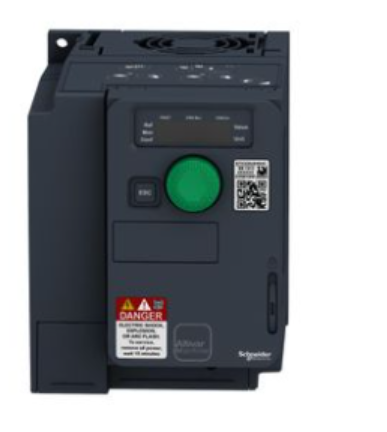

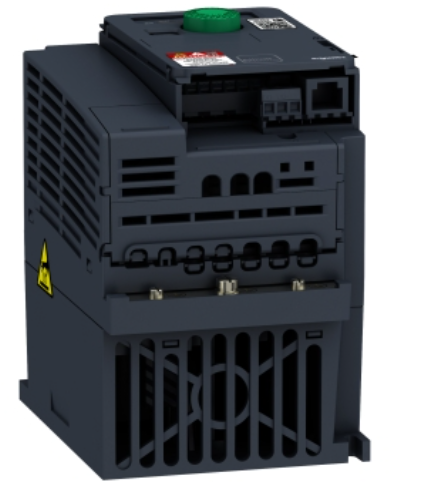

Schneider ATV320U22N4C Variable Frequency Drive
Core Electrical Specifications
Parameter Specification
Rated Power 2.2 kW (3 HP)
Rated Output Current 6.6 A
Maximum Output Current 8.7 A
Input Voltage Three-phase 380–500 V AC (±10%), 50/60Hz
Output Frequency 0.1–599 Hz
Control Method Sensorless Vector Control (SVC), V/F Control, Energy Saving Mode
Overload Capacity 150% Rated Current (60s), 200% Rated Current (2s)
Protection Rating IP20 (NEMA 1)
Cooling Method Natural Air Cooling
Installation Method Wall Mount / Rail Mount, Vertical (±10°)
Communication Interface Standard: Modbus RTU (RS485), CANopen; Optional: Profibus, Profinet, EtherCAT, EtherNet/IP
Safety Functions Built-in STO (Safe Torque Off), SS1, SLS, etc.
EMC Filter Built-in C2 EMC Filter
Ambient Temperature -15℃ to +60℃ (without derating)
Physical and Logistics Specifications
  • Net Weight: 2.6 kg
  • Gross Weight (including standard packaging): Approx. 3.1 kg
  • Dimensions (W×H×D): 140 × 228 × 158 mm
  • Packaging Dimensions: Approx. 180 × 250 × 200 mm
  • Volume: Approx. 0.009 m³
  • Battery: No built-in battery
Model Number Breakdown (ATV320U22N4C)
  • ATV320: Altivar Machine 320 Series
  • U: Compact
  • 22: 2.2 kW Power Rating
  • N: 380–500 V Three-Phase Input
  • 4: Standard Modbus/CANopen Communication
  • C: Standard Version (IP20, Built-in EMC Filter)
Certifications and Standards Compliance
CE, UL, CSA, EAC, RCM, KC, NOM, ATEX
Compliant with IEC 61800-5-1, IEC 61800-3, IEC 60721-3-3 (3C3 Coating), ISO 13849-1
