Schneider ATV930D22N4 Variable Frequency Drive (VFD)

1. Product Overview

The ATV930D22N4 belongs to Schneider Altivar Process ATV930 series, a high‑performance wall‑mount variable frequency drive for 3‑phase asynchronous and synchronous motors. It precisely regulates motor speed & torque for heavy‑duty industrial process equipment. This unit supports flexible IP upgrade from IP20 up to IP54 protection grade, embedded braking chopper, rich fieldbus communication, built‑in energy metering and asset predictive diagnosis. It connects with PLC / DCS systems to realize centralized factory automation control, widely used for energy‑saving speed‑variation and process protection of pumps, fans, compressors and heavy‑load machinery.

2. Key Product Advantages

✅ 2‑rating power design: 22 kW Normal Duty / 18.5 kW Heavy‑Duty overload capability, fits variable & heavy‑load process conditions

✅ Flexible IP protection: Base IP21, optional upgrade kit to achieve IP20‑IP54 for harsh on‑site environment

✅ Multiple industrial communication: Native Modbus Serial RS485 / Modbus TCP; expandable Profibus‑DP V1, PROFINET, EtherCAT via option slots

✅ Complete safety functions: STO (Safe Torque‑Off, SIL 3 / PL e), SS1, SLS safety monitoring to satisfy machine safety standards

✅ Integrated braking chopper: Ready for fast stop & frequent deceleration working scenarios

✅ Built‑in energy dashboard: Real‑time power consumption statistics, Stop‑Go energy‑saving function for fluid equipment

✅ Asset condition monitoring: Drift detection, wear & fault early warning, reduce unplanned downtime

✅ Advanced motor control: Support asynchronous motor, permanent magnet synchronous motor & synchronous reluctance motor control profiles

✅ Rich I/O resources: 10 digital inputs, 3 analog inputs, 2 analog outputs, 3 relay outputs for on‑site logic expansion

✅ Graphic local HMI: Onboard display for parameter setting, real‑time monitoring and fault diagnosis

3. Technical Parameters

4. Application Industries & Scenarios

Main Industries

• Water & Wastewater: Process pump, sewage pump, large blower
• Oil & Gas: Process pump, compressor, ventilation fan
• Mining & Minerals: Heavy‑duty fan, auxiliary process machinery
• Chemical & Petrochemical: Agitator, circulating pump, conveying equipment
• HVAC & Building Utilities: Large air‑handling fan, chilled‑water pump
• Food & Beverage: High‑power mixer, material handling system

Typical Equipment: Pumps, fans, blowers, compressors, agitators, heavy‑duty conveying machinery.

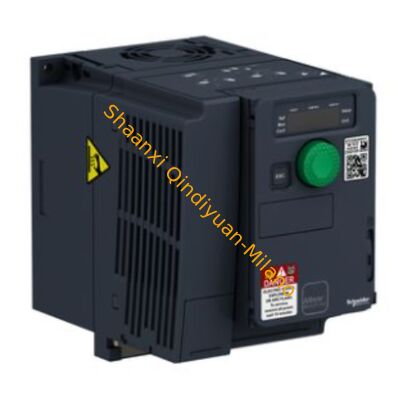

1. Main product photo (VFD front view with HMI panel)
