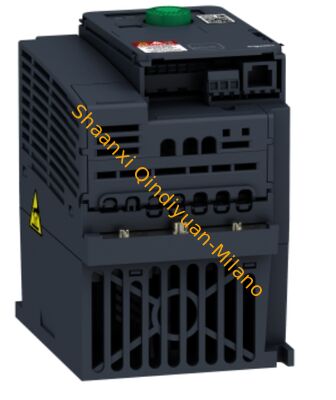

ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power

1 pcs
MOQ
Negotiable
Price
ATV930D11N4 Schneider Variable Frequency Drives VFD With 11KW Rated Power
Features Gallery Product Description Chat Now
Features
Specifications
Starting Torque: 150% At 0.5 Hz
Input Voltage: 200-480 V AC
Overload Capacity: 150% For 1 Minute
Dimensions: Varies By Model
Output Frequency: 0-400 Hz
Input Frequency: 50/60 Hz
Operating Temperature Range: -10°C To 50°C
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Display Type: LCD Or LED Display
Communication Protocols: Modbus, Profibus, Ethernet/IP
Harmonic Distortion: <5%
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP54
Cooling Method: Forced Air Cooling
Output Voltage: 0-480 V AC
Highlight:

ATV930D11N4

,

Schneider Variable Frequency Drives VFD

,

Variable Frequency Drives VFD 11KW
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: ATV930D11N4
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
Schneider ATV930D11N4 Variable Frequency Drive
Electrical Specifications
Parameter Value
Rated Power 11 kW (15 HP, light load); 7.5 kW (10 HP, heavy load)
Rated Output Current 23.5 A (4kHz, light load); 16.5 A (4kHz, heavy load)
Maximum Transient Current 28.2 A (light load 60s); 24.8 A (heavy load 60s)
Input Voltage Three-phase 380–480 V AC (±10%), 50/60Hz
Output Frequency 0.1–599 Hz
Control Method DTC Direct Torque Control, Sensorless Vector Control, V/F, Energy Saving Mode, Permanent Magnet Motor Control
Overload Capacity 120% Light Load (60s); 150% Heavy Load (60s)
Protection Rating IP21 (NEMA 1)
Cooling Method Forced Air Cooling
Installation Method Wall Mounted / Cabinet-mounted, vertical (±10°)
Communication & Safety Features
Communication Interfaces
Standard: Ethernet/IP, Modbus TCP/RTU
Optional: Profinet, EtherCAT, CANopen, Profibus DP
Safety Functions
Built-in STO (Safe Torque Off), compliant with SIL2/PLd
EMC
Built-in C2/C3 EMC filter
Braking Unit
Built-in braking chopper (can be connected to an external braking resistor)
Physical Specifications
Net Weight
12.5 kg
Gross Weight
Approx. 13.5 kg
Dimensions (W×H×D)
236 × 450 × 250 mm
Packaging Dimensions
Approx. 300 × 520 × 320 mm
Volume
Approx. 0.05 m³
Power Source
No battery, no built-in battery
Operating Environment
Ambient Temperature
-15℃ to +50℃ (no derating); +60℃ (derating)
Model Designation: ATV930D11N4
  • ATV930: Altivar Process 930 Series (High-Performance Process Type)
  • D: With built-in brake chopper
  • 11: 11 kW light-load power rating
  • N: 380–480 V three-phase input
  • 4: Standard Ethernet + Modbus communication
Certifications & Standards Compliance
CE UL CSA EAC RCM KC ATEX ISO 13849-1 IEC 61508 (SIL2)
Compliant with IEC 61800-5-1, IEC 61800-3, EN 954-1
