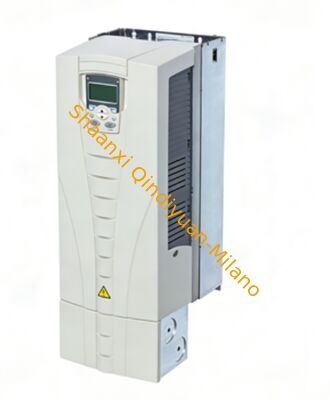

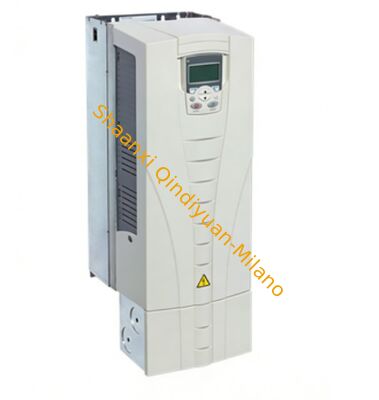

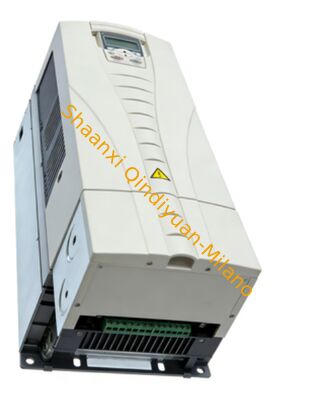

ABB ACS580-01-106A-4 LV AC General Purpose Wall Mounted Drive IEC: Pn 55 KW, 106 A

1
MOQ
Negotiable
Price
ABB ACS580-01-106A-4 LV AC General Purpose Wall Mounted Drive IEC: Pn 55 KW, 106 A
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

General Purpose Wall Mounted Drive

,

55 kW variable frequency drive

,

ABB ACS580-01-106A-4
Basic Infomation
Place of Origin: China
Brand Name: ABB
Model Number: ACS580-01-106A-4
Document: 2pdf.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
ABB ACS580-01-106A-4 LV AC Drive
General purpose wall-mounted drive, IEC: 55 kW power rating, 106 A current rating
Product Classification
Customs Code85044087
HS Code850440 - Electrical transformers, static converters and inductors
Invoice DescriptionACS580-01-106A-4 PN:55kW, IN:106A
Minimum Order Quantity1 piece
Sales UnitPiece
Physical Dimensions
Weight37 kg
Length295 mm
Height732 mm
Width203 mm
Technical Specifications
Number of Phases3-phase
Protection RatingIP21
NEMA TypeType1
Frequency Range47.5 ... 63 Hz
Frame SizeR5
Input Voltage380 … 480 V
Mounting TypeWall-mounted
Efficiency LevelIE2
Output Performance
Normal Use Current (In)106 A
Light Overload Current (ILD)100 A
Heavy Duty Current (IHD)87 A
Normal Use Power (Pn)55 kW
Light Overload Power (PLD)55 kW
Heavy Duty Power (PHD)45 kW
Drive Module Efficiency (IEC 61800-9-2)
Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %325 W0.4 %92.5 %
0 / 50 %449 W0.6 %94.5 %
0 / 100 %864 W1.2 %94.6 %
50 / 25 %359 W0.5 %95.9 %
50 / 50 %521 W0.7 %96.8 %
50 / 100 %1023 W1.4 %96.9 %
90 / 50 %606 W0.8 %97.9 %
90 / 100 %1290 W1.8 %97.8 %
