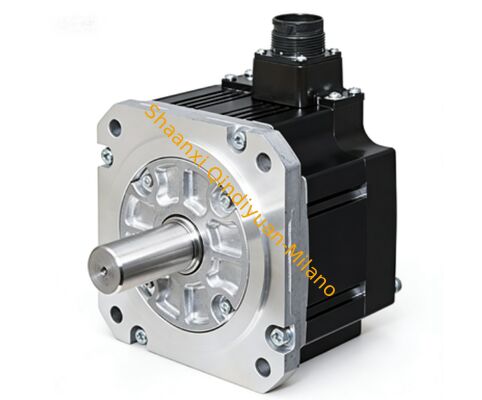

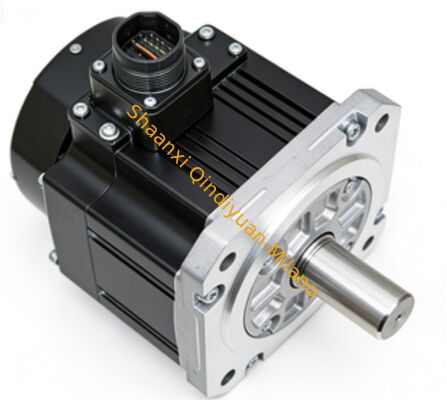

MITSUBISHI HK-ST102WJ Servomotor Power 1kW Torque 4.8 Nm Max. 14.3 Nm

1
MOQ
350$
Price
MITSUBISHI HK-ST102WJ Servomotor Power 1kW Torque 4.8 Nm Max. 14.3 Nm
Features Gallery Product Description Chat Now
Features
Specifications
Comprehensive Accuracy: ±0.5%FS
Maximum Speed: 8000 Rpm
Rated Speed: 3000 RPM
Gear Type: All Metal Gear
Warranty: 1 Year
The Gear Material: Metal
Voltage: 12V
Material Quality: Metal
Highlight:

Servomotor 1kW

,

MITSUBISHI HK-ST102WJ

,

Servomotor 4.8 Nm
Basic Infomation
Place of Origin: China
Brand Name: MITSUBISHI
Model Number: HK-ST102WJ
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

MITSUBISHI HK-ST102WJ Servomotor Product Specification (ECER Standard, Full English Version)

HK-ST102WJ Servomotor

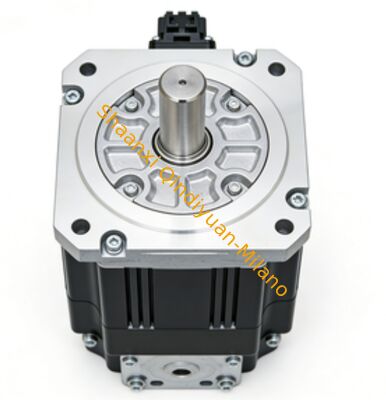

Product Front View

1. Product Overview

HK-ST102WJ belongs to Mitsubishi MELSERVO-J5 medium inertia AC brushless servo motor lineup, a core motion control component matched with MR-J5 series servo driver. It converts electrical input into precise rotary mechanical output to realize closed-loop control of position, speed and torque for automated equipment, delivering stable 1kW continuous power with 4.8Nm rated torque and 14.3Nm peak overload torque, widely adopted to calibrate accurate motion trace of automated production machinery, processing axis and transmission mechanism. Built-in 26-bit battery-free absolute encoder eliminates origin reset after power cut, realizing full-range precise positioning for industrial automation assembly lines.

2. Core Product Advantages & Key Features

✅ Ultra-high Position Accuracy: 26-bit absolute encoder (67,108,864ppr resolution), no zero-point homing required after power-off, micron-level positioning precision

✅ Strong Overload Capacity: 3x peak torque output (Max 14.3Nm vs rated 4.8Nm), stable startup under heavy instantaneous load impact

✅ IP67 Premium Protection Grade: Full enclosure dustproof & splash-proof structure with built-in shaft oil seal, adaptable to humid, dusty workshop working conditions

✅ Medium Inertia Optimized Design: Balanced dynamic response and load adaptability, smooth low-speed operation without crawling phenomenon

✅ Quick-lock Single-cable Wiring: Plug-and-play power & encoder connector design, shorten on-site wiring and equipment debugging cycle

✅ Global Certification Compliance: CE, UL, cURus, TUV certified, fully meets EU ECER industrial electrical safety specifications for cross-border equipment export

3. Detailed Technical Parameters

表格



Item Specification Data
Brand MITSUBISHI ELECTRIC
Model HK-ST102WJ
Series MELSERVO-J5, Medium Inertia Rotary Servomotor
Rated Output Power 1.0kW
Rated Torque 4.8 N·m
Peak Max Torque 14.3 N·m
Rated Rotating Speed 2000 rpm
Max Allowable Speed 4000 rpm
Input Power Supply AC200V Class
Rated Input Current 5.3A
Max Instant Current 18A
Encoder Specification 26-bit Battery-free Absolute Encoder
Protection Class IP67
Mounting Flange Size 130×130mm Standard Flange Installation
Overall Dimension H173.8mm × W130mm × D181.5mm
Operating Ambient Temp 0℃ ~ +60℃
Storage Temperature -25℃ ~ +70℃
Shaft Form Standard Straight Shaft, Without Electromagnetic Brake
Matching Driver MR-J5-100A-RJ / MR-J5-100G-RJ

4. Application Industry & On-site Scenario Description

Main Application Industries

  1. 3C Electronic Automation Equipment: PCB routing machine, automatic component insertion equipment, precision dispensing axis control
  2. Packaging & Printing Machinery: Carton forming machine, high-speed labeling machine, printing roller servo driving system
  3. CNC Automated Machining: Small precision milling machine, drilling tapping center feed axis
  4. Automated Logistics & Conveyance: Intelligent sorting conveyor, automated palletizing manipulator joint drive
  5. New Energy Manufacturing: Lithium battery winding & cutting production line positioning control
Warehouse Stock Storage View

Warehouse Storage Description

Products are packed with shockproof foam inside independent export carton, stored in constant-temperature dry industrial warehouse with moisture-proof pallet stacking; finished goods undergo pre-delivery power-on inspection before outbound shipment, available for bulk spot delivery and OEM bulk order arrangement.

5. ECER Compliance Remark

This servo motor conforms to EN60034-1, EN61800-3, ECER industrial motor safety directives, with complete formal certification documents for European market customs clearance and equipment whole-machine CE matching verification.
Need I to compress this content into short ECER listing brief version for platform publish?
