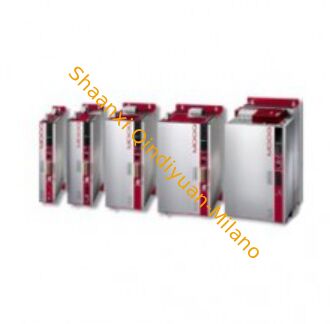

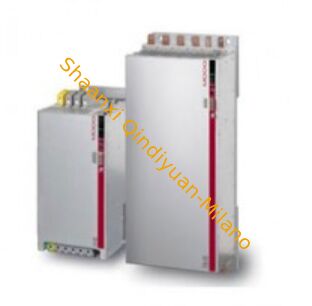

MOOG G393-016 Frequency Converter with 16 A Rated Current Modbus Communication and IP20 Protection Variable Frequency Drive

1 pcs
MOQ
Negotiable
Price
MOOG G393-016 Frequency Converter with 16 A Rated Current Modbus Communication and IP20 Protection Variable Frequency Drive
Features Gallery Product Description Chat Now
Features
Specifications
Ambient Temperature Range: -10°C To 50°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Output Voltage: 0-480 V AC
Cooling Method: Forced Air Cooling
Display Type: LCD Or LED
Mounting Type: Wall-mounted Or Panel-mounted
Safety Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit Protection
Input Frequency: 50/60 Hz
Overload Capacity: 150% For 1 Minute
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Input Voltage: 200-480 V AC
Harmonic Mitigation: Built-in Or External Filters
Power Rating: 0.5 KW To 500 KW
Output Frequency: 0-400 Hz
Protection Class: IP20 To IP54
Highlight:

16 A Rated Current Frequency Converter

,

Modbus Communication Variable Frequency Drive

,

IP20 Protection VFD
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: G393-016
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
MOOG G393-016 Frequency Converter
Electrical Performance
Parameter Specifications Remarks
Rated Current (Irms) 16 A 8 kHz Switching frequency, 565 VDC operating condition
Peak Current (Irms) 33.6 A Short-time overload capacity, suitable for high dynamic loads
Bus Voltage Range 560 VDC ~ 770 VDC Requires MSD series AC-DC power supply unit
Switching Frequency 4/8/12/16 kHz Software programmable, balancing losses and dynamics
Control Interface EtherCAT/PROFINET Optional fieldbus, supports multi-axis synchronization
Feedback Type Incremental encoder, Resolver, SSI Supports high-precision position/speed closed loop
Physical and Environmental Specifications
Parameter Specifications Remarks
Cooling Method Air cooling / Liquid cooling Dual options available, liquid cooling can improve continuous output
Weight Approx. 4.9 kg (10.8 lb) Includes basic module, excludes accessories
Dimensions (W × H) 90 mm × 345 mm Size 3 (Standard size, suitable for dense rack mounting)
Protection Rating IP20 Rack mounting requirements
Operating Temperature 0°C to +45°C Air cooling; liquid cooling up to +55°C
Safety Certification IEC/EN 61800-5-2 Integrated Safe Torque Off (STO), no external safety PLC required
Structure and Core Features
  • Modular Design: Supports multi-axis splicing, enabling power sharing between modules via DC-L bus cables, reducing wiring complexity, suitable for multi-axis equipment integration.
  • High Reliability: Built-in overcurrent, overvoltage, overheat, and undervoltage protection; supports motor temperature sensor (PTC) connection, extending equipment lifespan.
  • Flexible Configuration: Optional internal braking resistor and conformal coating, suitable for harsh industrial environments.
  • Ease of Use: Equipped with 7-segment display + buttons, USB and Ethernet interfaces, supporting local debugging and remote diagnostics, reducing maintenance costs.
Typical Application Scenarios
  • Industrial automated production lines (multi-axis robots, CNC machine tools)
  • Materials testing machines, hydraulic testing benches (high-precision force/position control)
  • Aerospace ground equipment, automotive manufacturing (high-dynamic operating conditions)
  • Wind power, new energy equipment (medium-power actuator drives)
