Home /Products/Variable Frequency Drives VFD/6SL3315-1TE32-1AA3 Siemens SINAMICS S120 Converter Power Module 24V DC

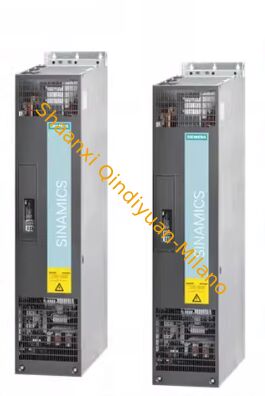

6SL3315-1TE32-1AA3 Siemens SINAMICS S120 Converter Power Module 24V DC

1pcs
MOQ
Negotiable
Price
6SL3315-1TE32-1AA3 Siemens SINAMICS S120 Converter Power Module 24V DC
Features Gallery Product Description Chat Now
Features
Specifications
Output Typt: Relay
Input Points: 36 Points.
Condition: New Original With Sealed
Actual Price: Based On Offer
Mounting_Type: DIN Rail
Output Points: 16DO
Number_of_Inputs: 14
Total Points: 60 Points.
Memory_Size: 50 KB
Operating_Temperature_Range: -20°C To 60°C
Power Supply Voltage: 100 – 240VAC.
Actual Value: Negotiabled Price
Color: Normal
Input_Voltage: 24V DC
Output Method: Relay
Highlight:

6SL3315-1TE32-1AA3

,

Siemens SINAMICS S120

,

Converter Power Module 24V DC
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3315-1TE32-1AA3
Document: 6SL3315-1TE32-1AA3.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Product Specifications
General Information
Product Type Designation SINAMICS S120 Converter Power Module
Order Number 6SL3315-1TE32-1AA3
Construction Type Chassis (Built-in), liquid cooling
Included Accessories DRIVE-CLiQ cable, mounting plate for CU310
Safety Integrated Support Yes (Extended Safety Functions)
Product Status Current Product
Input Specifications
Input Voltage Range 380-480 V 3AC
Input Frequency 50/60 Hz
Input Voltage Tolerance -15% / +10%
Input Connection Type 3-phase with protective conductor
Output Specifications
Rated Output Current 210 A
Rated Output Power (400V 50Hz) 110 kW (150 hp)
Output Voltage Range 0...0.97 × Uline
Output Frequency Range (Vector Control) 0...650 Hz
Output Frequency Range (V/f Control) 0...599 Hz
DC Link
DC Link Voltage (50Hz 400V) 540 V DC (typical)
DC Link Voltage (60Hz 460V) 620 V DC (typical)
DC Link Capacitor Integrated
Overload Protection
Overload Capacity (S1 Duty) 100% of rated current continuously
Overload Capacity (S2 Duty 60s) 150% of rated current
Overload Capacity (S2 Duty 3s) 200% of rated current
Cooling System
Cooling Type Liquid Cooling
Coolant Type Deionized water or water-glycol mixture (max 60% glycol)
Coolant Inlet Temperature Range 10°C to 40°C
Coolant Flow Rate Approx. 12 L/min
Coolant Pressure Range 0.5 to 3 bar
Max Coolant Pressure Drop 0.3 bar
Communication Interface
Interface Type DRIVE-CLiQ (for connection to Control Unit)
Protocol Supported PROFIBUS DP, PROFINET (via Control Unit)
Safety Functions
Safety Rating SIL 2 (EN 61508), PL d (EN ISO 13849-1)
Integrated Safety Functions Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Operating Stop (SOS), Safe Brake Control (SBC)
Electrical Characteristics
Power Factor (cos φ 1) >0.96 (at rated load)
Efficiency >98% (at rated load)
Power Loss (max) Approx. 1.8 kW
Electronics Power Supply 24 V DC (-15% / +20%)
Dimensions
Width 410 mm
Height 392 mm
Depth 292 mm
Weights
Net Weight Approx. 95 kg (209.4 lb)
Ambient Conditions
Operating Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -25°C to 70°C (-13°F to 158°F)
Max Altitude 2000 m (6562 ft) above sea level
Relative Humidity (non-condensing) 5% to 95% (25°C)
Protection Class IP00 (chassis construction)
Standards Approvals
CE Mark Yes
UL Certification Yes
CSA Certification Yes
RoHS Compliance Yes
Control Modes Supported
Vector Control Yes
V/f Control Yes
Servo Control Yes (with appropriate Control Unit)
Additional Features
Regenerative Capability No (requires braking module for energy dissipation)
Line Regulator Integrated (non-regenerative)
EMC Filter Optional (external)
I/O Interface Through Control Unit (CU310/CU320)
