Phoenix 2907071 QUINT4-UPS/24DC/24DC/20 Uninterruptible Power Supply
Product ID: 2907071
Product Overview

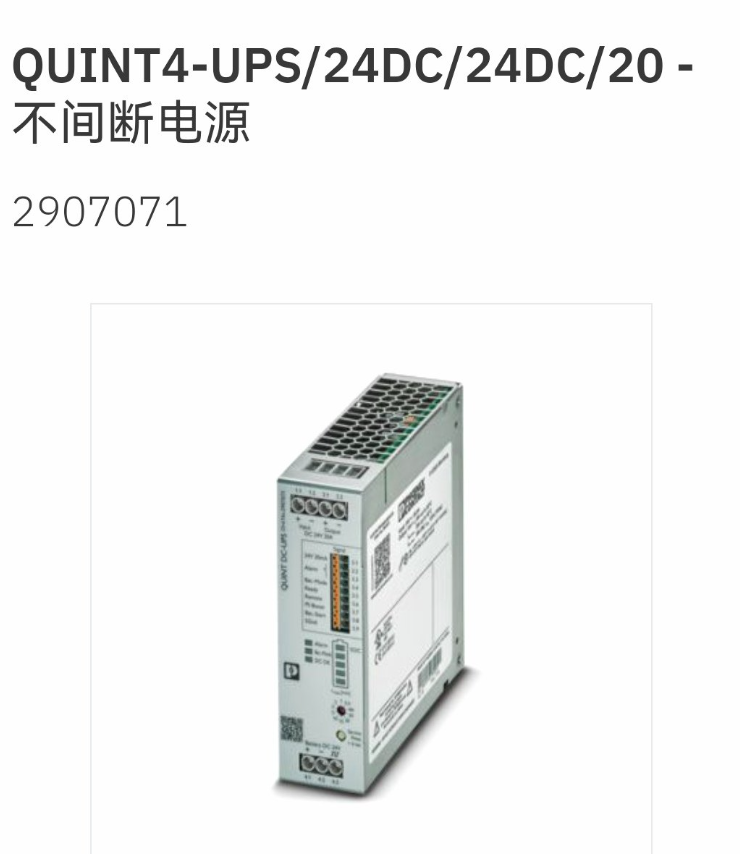

QUINT DC UPS with IQ Technology, DIN rail mounting, screw connection. Input: 24 V DC, Output: 24 V DC / 20 A, Charging current: 5 A. Designed for reliable uninterruptible power supply in industrial applications.
Key Features
  • IQ Technology for intelligent power management
  • DIN rail mounting for easy installation
  • Screw connection terminals
  • Short-circuit and no-load proof
  • Zero millisecond switch-over time
  • Parallel connection capability for redundancy
  • Temperature-compensated charging
  • Support for VRLA, VRLA-WTR, and LI-ION battery technologies
Electrical Specifications
Input Characteristics
Parameter Specification
Input Voltage 24 V DC
Input Voltage Range 18 V DC ... 30 V DC
Electric Strength, max. 35 V DC (Protected against polarity reversal)
Reverse Polarity Protection Yes
Inrush Current ≤ 8 A (≤ 4 ms)
Switch-on Time max. 3 s
Output Characteristics - Mains Operation
Parameter Specification
Output Voltage 24 V DC (UOUT = UIN - 0.4 V DC)
Output Current IN 20 A
Static Boost (IStat.Boost) 25 A
Dynamic Boost (IDyn.Boost) 30 A (5 s)
Output Power POUT (UN, IOUT = IN) 480 W
Efficiency typ. 98 %
Battery Operation
Parameter Specification
Output Voltage 24 V DC (UOUT = UBAT - 0.4 V DC)
Output Current IN 20 A
Static Boost (IStat.Boost) 25 A
Output Power POUT (UN, IOUT = IN) 480 W
Battery Management
Parameter Specification
Nominal Voltage UN 24 V DC
Charging Current (configurable) max. 5 A
Nominal Capacity (without additional charger) 3 Ah ... 135 Ah
Max. Capacity 135 Ah
Charging Time 165 min (12 Ah)
Buffer Time 22 min (12 Ah)
Battery Technology VRLA, VRLA-WTR, LI-ION
Connection Specifications
Input/Output Connections
Connection Type Specifications
Input (1.x) Screw Connection 0.2 mm² ... 6 mm² rigid, 0.2 mm² ... 4 mm² flexible
Output (2.x) Screw Connection 0.2 mm² ... 6 mm² rigid, 0.2 mm² ... 4 mm² flexible
Signal (3.x) Push-in Connection 0.2 mm² ... 1 mm² rigid/flexible
Battery (4.x) Screw Connection 0.2 mm² ... 6 mm² rigid, 0.2 mm² ... 4 mm² flexible
Physical Specifications
Parameter Specification
Width 40 mm
Height 130 mm
Depth 132 mm (125 mm DIN rail mounting)
Mounting Type DIN rail mounting
Housing Material Metal (Stainless steel X6Cr17 hood, Aluminum AlMg3 sides)
Flammability Rating UL 94 V0
MTBF (25°C) > 1,940,000 hours

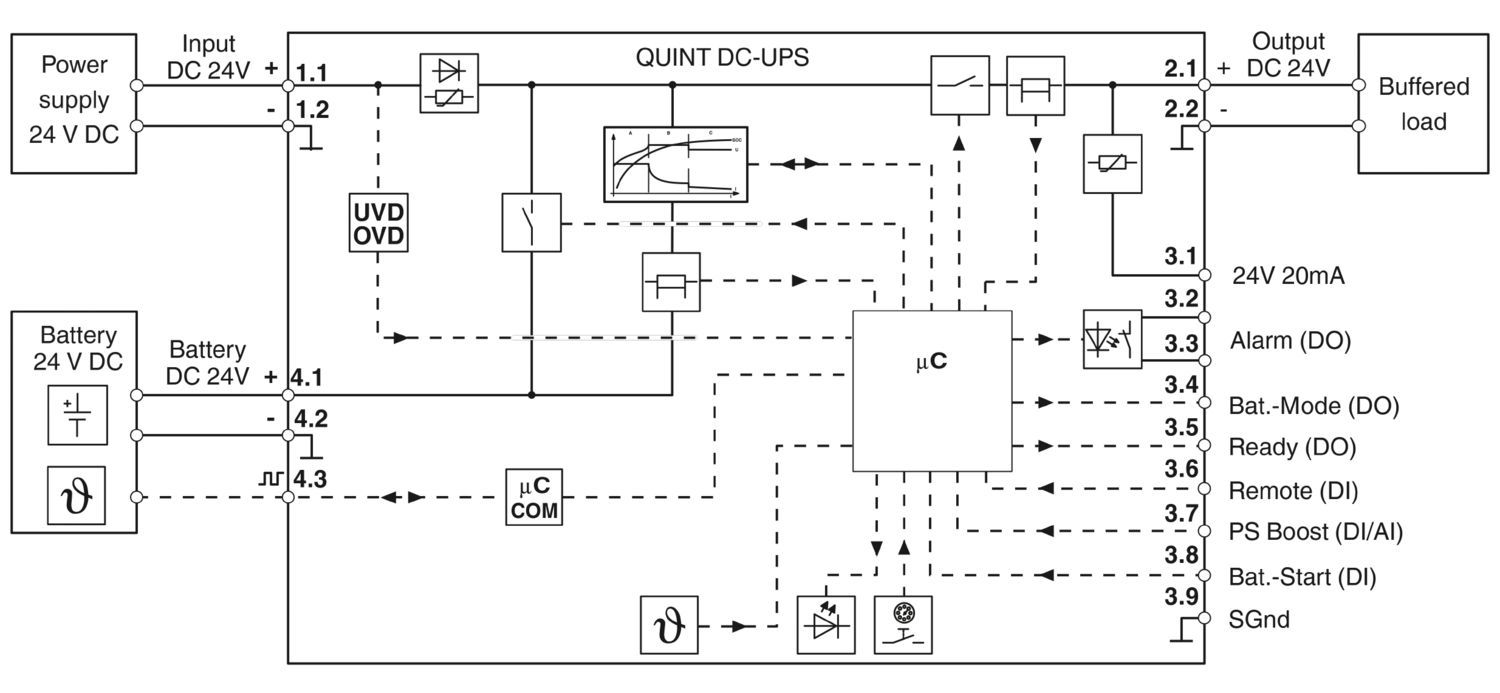

Signal and Monitoring
Comprehensive signaling capabilities including DC OK (green), Alarm (red), Bat.-Mode (yellow), SOC status, and data communication indicators with configurable digital and analog inputs/outputs for system integration.
