Phoenix 2320092 QUINT-PS/24DC/24DC/10 - DC/DC Converter

1
MOQ
Negotiable
Price
Phoenix 2320092 QUINT-PS/24DC/24DC/10 - DC/DC Converter
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year,12 Months
Nominal Input Voltage Range: 24 V DC
Input Voltage Range: 18 V DC ... 32 V DC
Extended Input Voltage Range: 14 V DC ... 18 V DC (Derating)
Output Characteristic: U/I
Nominal Output Voltage: 24 V DC ±1 %
Setting Range: 18 V DC ... 29.5 V DC
Nominal Output Current: 10 A (-25 °C ... 60 °C)
Highlight:

QUINT-PS/24DC/24DC/10

,

Phoenix 2320092
Basic Infomation
Place of Origin: India
Brand Name: Phoenix
Model Number: 2320092 QUINT-PS/24DC/24DC/10
Document: 2320092 QUINT-PS.pdf
Payment & Shipping Terms
Packaging Details: Original box
Delivery Time: 5-7working days
Payment Terms: T/T
Product Description

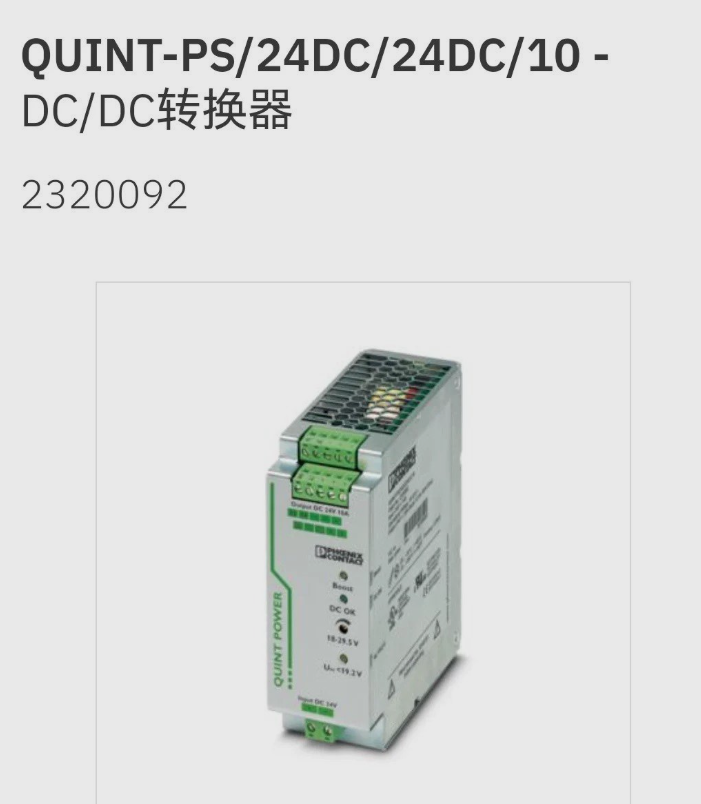

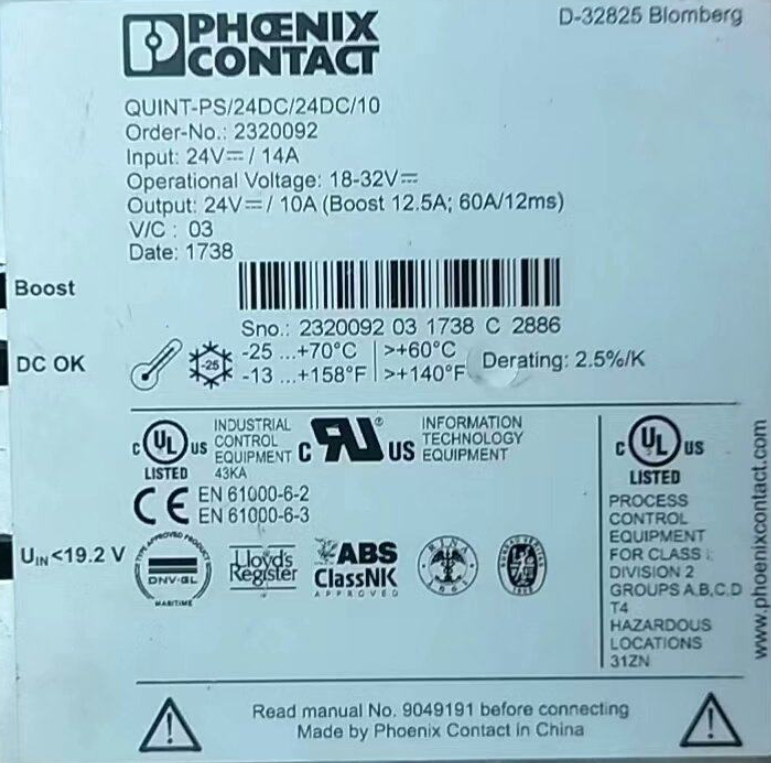

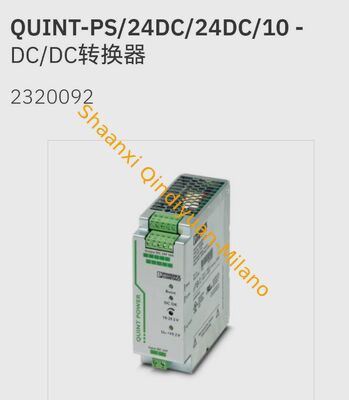

Phoenix 2320092 QUINT-PS/24DC/24DC/10 - DC/DC Converter
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology. Input: 24 V DC, Output: 24 V DC/10 A. Ideal for industrial power supply applications requiring reliable DC/DC conversion.
Product Specifications
Input Characteristics
Nominal input voltage range 24 V DC
Input voltage range 18 V DC ... 32 V DC
Extended input voltage range 14 V DC ... 18 V DC (Derating)
Voltage type DC
Inrush current < 15 A (typical)
Mains buffering time > 12 ms (24 V DC)
Current consumption 14 A (24 V, IBOOST)
Reverse polarity protection ≤ 30 V DC
Input fuse 25 A (internal device protection)
Efficiency > 92 %
Output Characteristics
Output characteristic U/I
Nominal output voltage 24 V DC ±1 %
Setting range 18 V DC ... 29.5 V DC
Nominal output current 10 A (-25 °C ... 60 °C)
POWER BOOST (IBoost) 12.5 A (-25 °C ... 40 °C permanent)
Selective Fuse Breaking (ISFB) 60 A (12 ms)
Output power 240 W
Active current limitation Approx. 18 A
Residual ripple < 20 mVPP
Connection in parallel Yes (for redundancy and increased capacity)
Connection in series Yes (2 devices)
Signal Outputs
DC OK active UOUT > 0.9 x UN: High signal
POWER BOOST active IOUT < IN: High signal
UIN OK active UIN > 19.2 V: High signal
DC OK floating Relay output
Connection Specifications
Input connection Pluggable screw connection
Output connection Pluggable screw connection
Conductor cross-section 0.2 mm² ... 2.5 mm² (rigid/flexible)
AWG range 24 ... 12
Screw thread M3
Tightening torque 0.5 Nm ... 0.6 Nm
Physical Dimensions
Width: 48 mm
Height: 130 mm
Depth: 125 mm
Installation distance (active): 15 mm right/left, 50 mm top/bottom
Key Features
  • SFB (Selective Fuse Breaking) Technology for enhanced protection
  • High efficiency > 92% for energy-saving operation
  • Wide operating temperature range: -25 °C to 70 °C
  • Parallel and series connection capability
  • Multiple signal outputs for system monitoring
  • DIN rail mounting for easy industrial installation
  • Comprehensive protection circuits including reverse polarity
