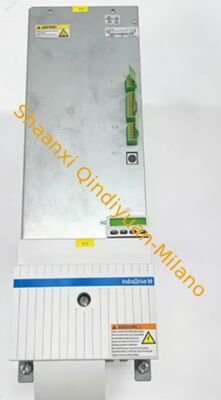

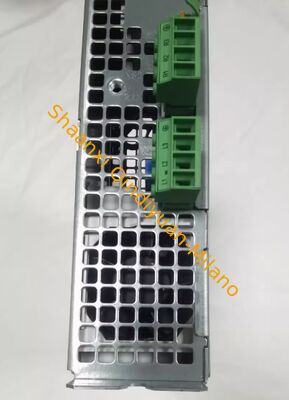

HMV01.1E‑W0030‑A‑07‑NNNN |  Rexroth 30kW Power Supply Unit

Product Overview

The HMV01.1E‑W0030‑A‑07‑NNNN is a feeding power supply unit belonging to Rexroth IndraDrive M modular servo drive system. It converts three‑phase AC 380‑480V mains input into stable 700V DC‑bus voltage, supplying power for multiple HMS01 / HMD01 servo inverter modules via shared common DC‑bus architecture. It acts as central power source for high‑performance multi‑axis automation equipment, realizing energy sharing among servo axes, reducing overall system cost and cabinet space occupation. Designed for cabinet‑mount installation in industrial control cabinet, it is widely used for new machine building and spare‑part replacement of existing Rexroth IndraDrive systems.

Product Advantages

✅ Modular Common DC‑bus Design Supports multiple servo inverters share one power supply unit; dynamic energy exchange between axes reduces power demand and heat loss for whole drive system.

✅ 30 kW Continuous Output Power, High Dynamic Load Capacity Peak DC‑bus power up to 45 kW, suitable for heavy‑duty, frequent acceleration‑deceleration multi‑axis machines.

✅ Integrated Blower Forced Air Cooling Built‑in cooling fan, stable thermal performance under long‑time heavy load; compact metal cabinet IP20 protection for cabinet‑inside usage.

✅ Rich Built‑in Protection Functions Over‑voltage, under‑voltage, over‑current, over‑temperature, short‑circuit protection; fast fault detection to protect power unit and downstream servo modules.

✅ Simple System Integration & Maintenance‑friendly Standard interface terminals X31/X32/X33 for power and signal wiring; compatible with full range IndraDrive M HMS/HMD series inverters, easy spare‑part replacement for old equipment.

✅ Industrial Certification Compliance CE & UL certified, meets EN 61800‑3 variable‑speed drive system standard for global industrial deployment.

✅ Compact Cabinet Footprint Optimized dimension for control cabinet layout, saves installation space for multi‑axis drive configuration.

Technical Parameters

Application Industries & Scenarios

Applicable Industries:

• Machine Tool & CNC Equipment
• Packaging & Printing Machinery
• Plastics Machinery (Injection Molding, Extrusion)
• Robotics & Automated Production Lines
• Textile Machinery
• Metal‑forming Machine (Bending, Punching)
• Material Handling & Conveying System
• General Multi‑axis Industrial Automation Equipment

Typical Usage Scenarios:

1. New multi‑axis servo machine configuration as central feeding power supply
2. Maintenance & spare‑part replacement for existing IndraDrive M installed base
3. High‑dynamic multi‑axis synchronous motion control equipment
4. Industrial cabinet‑mount servo drive system integration
