Phoenix 2320238 QUINT-UPS/ 24DC/ 24DC/20 UPS Uninterruptible Power Supply

1
MOQ
Negotiable
Price
Phoenix 2320238 QUINT-UPS/ 24DC/ 24DC/20 UPS Uninterruptible Power Supply
Features Gallery Product Description Chat Now
Features
Specifications
Input Voltage: 24 V DC
Nominal Input Voltage Range: 24 V DC
Input Voltage Range: 18 V DC ... 30 V DC
Nominal Output Voltage: 24 V DC
Output Voltage Range: 18 V DC ... 30 V DC
Nominal Output Current (IN): 20 A (-25 °C ... 50 °C)
Output Power: 480 W
Highlight:

Phoenix UPS Uninterruptible Power Supply

,

Phoenix 2320238

,

Phoenix QUINT-UPS/24DC/24DC/20
Basic Infomation
Place of Origin: India
Brand Name: Phoenix
Model Number: 2320238 QUINT-UPS/ 24DC/ 24DC/20
Document: 2320238 QUINT-UPS 4.pdf
Payment & Shipping Terms
Packaging Details: Original box
Delivery Time: 5-7working days
Payment Terms: T/T
Product Description
Phoenix 2320238 QUINT-UPS/ 24DC/ 24DC/20 Uninterruptible Power Supply

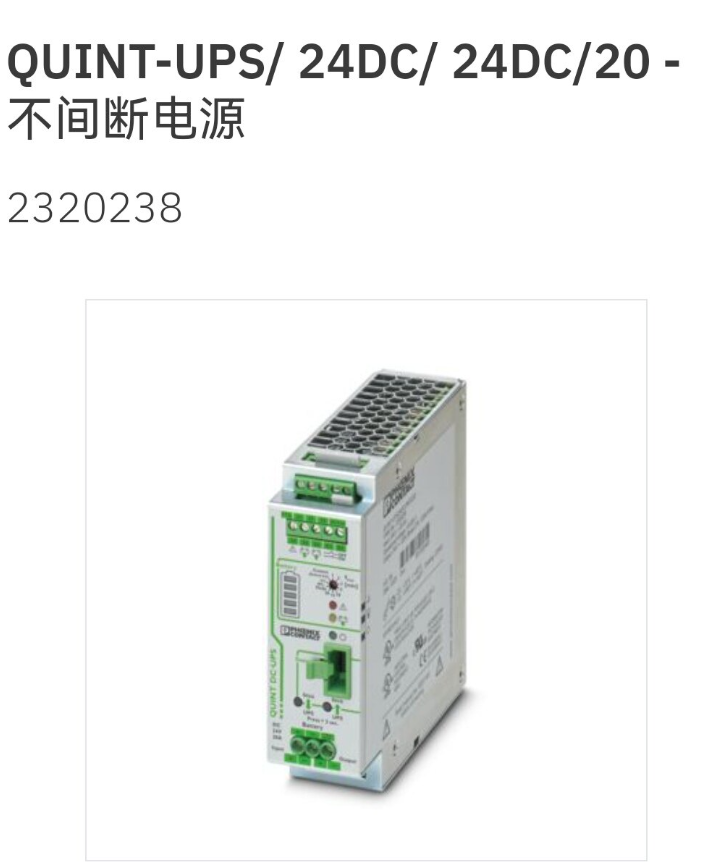

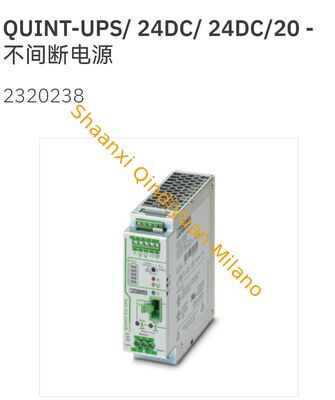

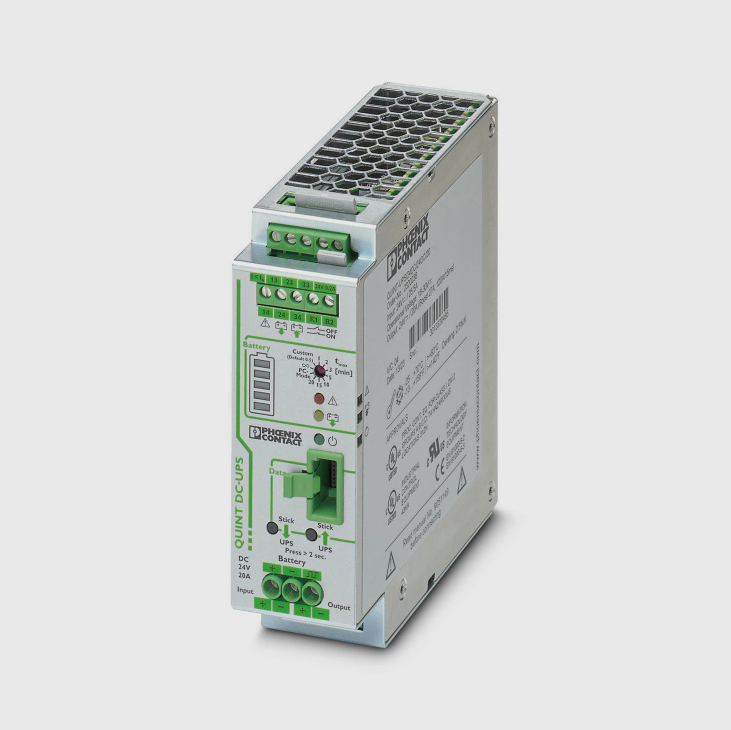

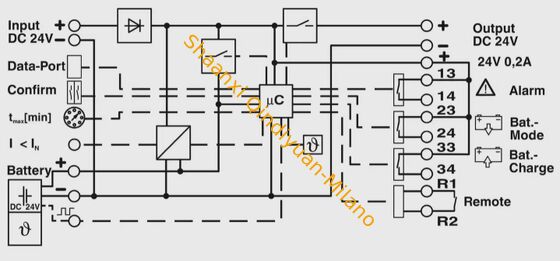

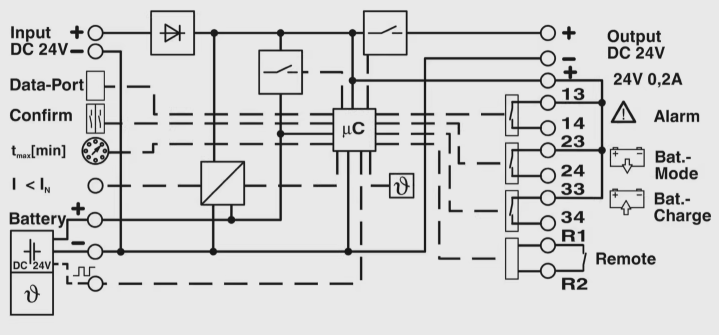

QUINT-UPS/ 24DC/ 24DC/20 - Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC/20 A, including mounted universal DIN rail adapter UTA 107/30
Product Code: 2320238
Technical Specifications
DC Operation
Input voltage 24 V DC
Nominal input voltage range 24 V DC
Input voltage range 18 V DC ... 30 V DC
Voltage type of supply voltage DC
Buffer period 1 h (With battery module 38 AH)
Current consumption 32.9 A (maximum, mains operation)
10.5 mA (No load, mains operation)
6.9 A (Charging, mains operation)
Fixed backup threshold ≤ 22 V DC
Variable connect threshold 1 V/0.1 s
Efficiency > 98 % (Mains operation, with charged energy storage)
98 % (Battery operation)
Output Characteristics
Nominal output voltage 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current (IN) 20 A (-25 °C ... 50 °C)
Output current limit In mains mode according to connected upstream current limiting device
> 27 A (Battery operation)
Derating 60 °C ... 70 °C (2.5 %/K)
Output power 480 W
Power dissipation 2.7 W (Mains operation)
7.65 W (Mains operation)
3.19 W (Battery operation)
9.35 W (Battery operation)
Connection in parallel yes, up to 2 modules with redundancy module
Connection in series no
Mains Operation
Nominal output voltage 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current (IN) 20 A (-25 °C ... 60 °C)
POWER BOOST (IBoost) 26 A (-25 °C ... 40 °C)
Selective Fuse Breaking (ISFB) 120 A (-25 °C ... 60 °C)
Duration 12 ms (SFB technology)
Battery Operation
Nominal output voltage 24 V DC
Output voltage range 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0,5 V DC)
Nominal output current (IN) 20 A (-25 °C ... 60 °C)
POWER BOOST (IBoost) 27 A (-25 °C ... 40 °C)
Selective Fuse Breaking (ISFB) 120 A (-25 °C ... 60 °C)
Duration 15 ms (SFB technology)
Signal Outputs
Alarm Signal
Output description Relay (floating)
Maximum switching voltage ≤ 30 V AC/DC
Continuous load current ≤ 100 mA
Battery Charge Signal
Output description Relay (floating)
Maximum switching voltage ≤ 30 V AC/DC
Output voltage 24 V
Continuous load current ≤ 100 mA
Battery Mode Signal
Output description Relay (floating)
Maximum switching voltage ≤ 30 V AC/DC
Output voltage 24 V
Continuous load current ≤ 100 mA
Product Features
  • Product family: QUINT DC UPS
  • IQ technology: Yes
  • MTBF (IEC 61709, SN 29500): > 500000 h (40 °C)
  • Protection class: III
  • Life expectancy (electrolytic capacitors): 195013 h
  • Nominal voltage UN: 24 V DC
  • End-of-charge voltage: 24 V DC ... 29 V DC (temperature compensated)
  • Charging current: 0.2 A ... 5 A
  • Nominal capacity range: 3 Ah ... 200 Ah
  • Battery presence check (cyclic): 60 s
  • Temperature compensation: 42 mV/K (preset)
  • Network management: Yes
Physical Dimensions
Standard Assembly: Width: 40 mm, Height: 130 mm, Depth: 125 mm
Installation distances: Right/Left: 5 mm / 5 mm, Top/Bottom: 50 mm / 50 mm
Alternative Assembly: Width: 123 mm, Height: 130 mm, Depth: 43 mm
