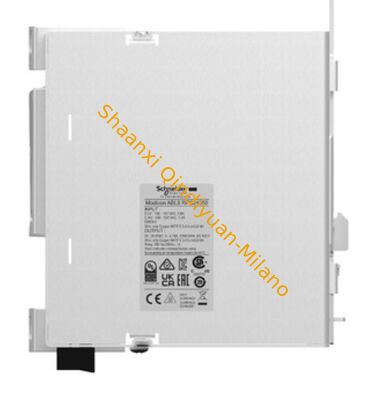

Schneider ABL8RPM24200 Industrial Power Supply IP20 DIN Rail Mounting

Schneider ABL8RPM24200

Industrial Power Supply IP20 DIN Rail Mounting

Product Overview

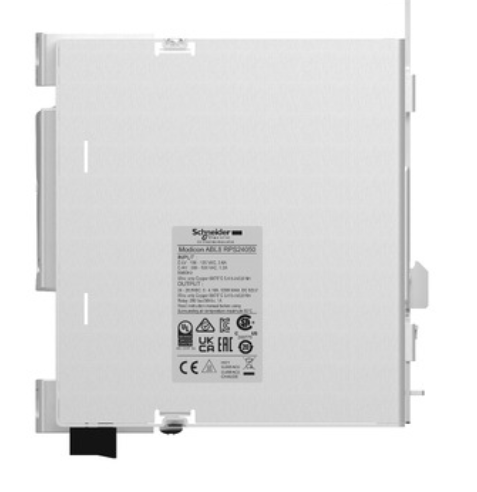

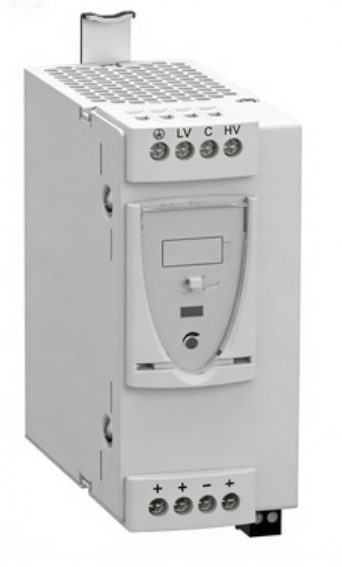

The Schneider ABL8RPM24200 is a Phaseo ABL8 series regulated switch‑mode power supply (SMPS). It converts 1‑phase / 2‑phase AC mains input into stable 24 V DC output, delivering up to 20 A / 480 W for industrial automation control systems. Mounted on standard 35 mm DIN rail inside control cabinets, it powers PLCs, sensors, contactors, solenoid valves and other 24VDC field devices, maintaining continuous power operation under voltage fluctuation, micro‑break and transient load surges in harsh industrial environments.

Product Advantages

• Universal Wide‑range AC Input: 85‑264 V AC single‑/two‑phase input, adaptable to global factory power grids
• 150% Peak Power Reserve: Supports 150% nominal current for 4 seconds, handles high in‑rush current at equipment startup
• Flexible Fault Reset: Selectable manual / automatic reset for overload & short‑circuit faults; auto‑reset recovers from temporary faults without manual intervention
• Comprehensive Protection: Built‑in over‑voltage, over‑load, short‑circuit, under‑voltage and thermal protection mechanisms
• Remote Diagnostic Contact: NO dry contact for remote fault signal monitoring in central control room
• Adjustable DC Output: Output voltage tunable from 24 V‑28.8 V DC to compensate long cable voltage drop
• High Efficiency & PFC: Power factor correction compliant with IEC 61000‑3‑2, reduces harmonic pollution, high energy efficiency
• IP20 enclosure, DIN‑rail clip‑on mounting, front LED status indication for fast on‑site troubleshooting

Technical Parameters

Application Industries & Scenarios

Main Industries: Factory automation, machinery manufacturing, material handling, packaging machinery, automotive production, water & wastewater treatment, logistics conveyor system, building automation, process control equipment.

Typical Application Scenarios:

1. Control cabinet power source for PLC, HMI, remote IO modules
2. Power supply for proximity sensors, photoelectric sensors, solenoid valves and contactors
3. Conveyor, assembly line and packaging machine auxiliary power system
4. Building intelligent control, pumping station and water treatment control cabinets
