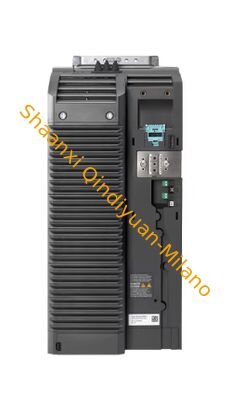

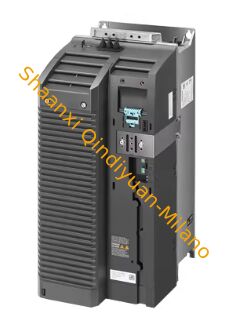

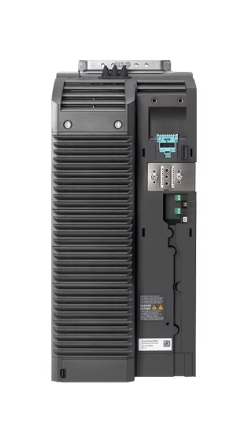

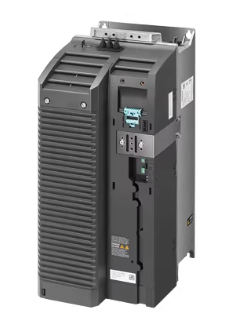

Siemens 6SL3210-1KE28-4AF1 Compact Frequency Inverter SINAMICS G120C 45kW

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-1KE28-4AF1 Compact Frequency Inverter SINAMICS G120C 45kW
Features Gallery Product Description Chat Now
Features
Specifications
Output Method: Transistor
Memory: 50 KB
Power_Consumption: 5 W
Total Points: 60 Points.
Input Points: 28
Weight: 0.3 Kg
Manufacturer: Siemens
Input_Voltage: 24 V DC
Model: S7-1200
Condition: New Original With Sealed
Mounting_Type: DIN Rail
Operating_Temperature_Range: -20 To 60 °C
Number_of_Inputs: 14
Actual Price: Based On Offer
Application: Spinning Machine, Conveyer Belt
Highlight:

6SL3210-1KE28-4AF1

,

Siemens Inverter SINAMICS G120C

,

Compact Frequency Inverter 45kW
Basic Infomation
Place of Origin: Germany/China
Brand Name: Siemens
Model Number: 6SL3210-1KE28-4AF1
Document: 6SL3210-1KE28-4AF1_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Parameter Name Value
General Information
Product Type SINAMICS G120C Compact Frequency Inverter
Order Number 6SL3210-1KE28-4AF1
Product Description 45.0 kW with 150% overload for 3 s, 380-480 V 3AC, integrated filter class A, PROFINET-PN, STO
Frame Size FSD
Protection Degree IP20 / UL Open Type
Operator Panel Not Included (ordered separately)
Firmware Version 4.7 or higher
Rated Data
Rated Power 45 kW
Rated Current 76 A
Output Frequency Range 0-550 Hz (V/f mode), 0-200 Hz (Vector mode)
Switching Frequency 4-16 kHz (adjustable)
Input Specifications
Number of Phases 3 AC
Line Voltage Range 380-480 V AC (+10% / -20%)
Line Frequency 47-63 Hz
Integrated Filter Class A EMC Filter
Power Factor 0.70-0.85
Offset Factor cos φ 0.95
Output Specifications
Output Voltage 0-Input Voltage (3-phase)
Output Current 76 A (continuous), 114 A (150% overload for 3 s)
Output Frequency Resolution 0.01 Hz
Efficiency 0.97
Overload Capability
Low Overload 150% for 3 s, 110% for 57 s
High Overload N/A (45kW is low overload version only)
Cyclic Overload Not applicable
Communication Interfaces
Integrated Fieldbus PROFINET-PN, EtherNet/IP
Optional Fieldbus PROFIBUS DP (via communication module)
Protocol Support Modbus RTU, USS (via PROFINET)
I/O Interface
Digital Inputs 6 DI (24 V DC, 5 mA each, PNP/NPN configurable)
Digital Outputs 2 DO (24 V DC, 0.5 A each, PNP)
Analog Inputs 1 AI (0-10 V DC or 0-20 mA, 12-bit resolution)
Analog Outputs 1 AO (0-10 V DC or 0-20 mA, 12-bit resolution)
Relay Outputs 1 relay output (30 V DC/5 A, 250 V AC/2 A)
Safety Features
Integrated Safety Function Safe Torque Off (STO), SIL 3, PL e
Safety Approval CE, UL, cUL, CSA
Mechanical Data
Dimensions (H x W x D) 472 mm x 200 mm x 237 mm
Net Weight 20 kg
Mounting Type DIN Rail Mounting (35 mm standard)
Packaging Dimensions 356 mm x 495 mm x 300 mm
Environmental Conditions
Operating Temperature 0 to 40 °C (horizontal installation), 0 to 35 °C (vertical installation)
Storage Temperature -25 to 70 °C
Relative Humidity 95% (25°C, no condensation)
Altitude Up to 2000 m (derating required above 1000 m)
Vibration Resistance 5-150 Hz, 0.5 g
Cooling
Cooling Method Forced Air Cooling (integrated fan)
Cooling Air Requirement 0.055 m³/s (1.942 ft³/s)
Power Loss 1400 W
Technical Features
Control Modes V/f Control, Vector Control (Sensorless), Vector Control (With Encoder)
Built-in Functions PID Controller, Flying Start, Skip Frequency, Ramp Generator
DC Brake Yes (0-300% of rated current, 0-10 s duration)
Motor Overload Protection Yes (adjustable trip class 5-40)
Energy Saving Mode Yes (Automatic flux reduction)
Standards Approvals
EMC Compliance EN 61800-3, EN 55011 Class A
Safety Compliance EN ISO 13849-1 (PL e), IEC 61508 (SIL 3)
Low Voltage Directive 2014/35/EU
RoHS Compliance Yes (since 13.02.2017)
Weight & Dimensions
Approximate Net Weight 20 kg
Packaging Weight 22 kg
