Home /Products/Variable Frequency Drives VFD/ABB ACS580-04-650A-4 LV AC general purpose drive module, IEC: Pn 355 kW, 650 A, 400 V, UL: Pld 500 Hp, 623 A, 480 V

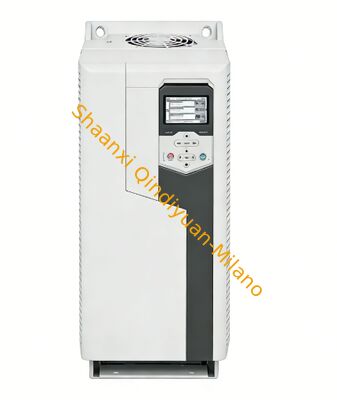

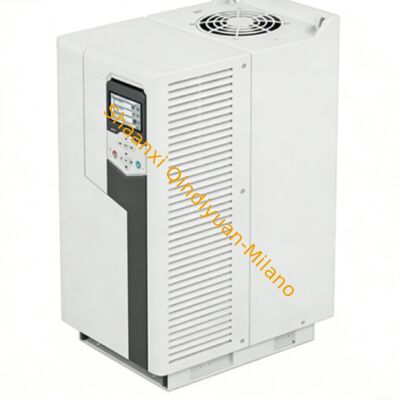

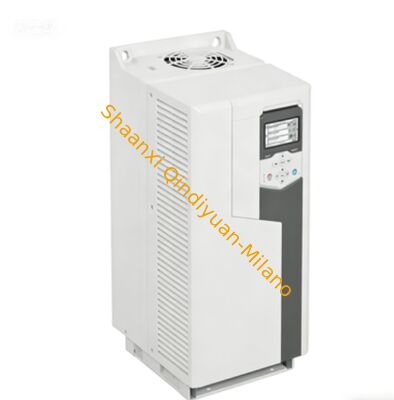

ABB ACS580-04-650A-4 LV AC general purpose drive module, IEC: Pn 355 kW, 650 A, 400 V, UL: Pld 500 Hp, 623 A, 480 V

1
MOQ
Negotiable
Price
ABB ACS580-04-650A-4 LV AC general purpose drive module, IEC: Pn 355 kW, 650 A, 400 V, UL: Pld 500 Hp, 623 A, 480 V
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

ABB ACS580 VFD drive module 650A

,

general purpose drive module 355 kW

,

variable frequency drive 500 Hp UL
Basic Infomation
Place of Origin: china
Brand Name: ABB
Model Number: ACS580-04-650A-4
Document: 2pdf.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
ABB ACS580-04-650A-4 General Purpose Drive Module
LV AC general purpose drive module, IEC: Pn 355 kW, 650 A, 400 V, UL: Pld 500 Hp, 623 A, 480 V
Ordering Information
Customs Tariff Number85044087
HS Code850440 - Electrical transformers, static converters and inductors
Invoice DescriptionACS580-04-650A-4 PN: 355 kW, IN: 650 A
Made To OrderYes
Minimum Order Quantity1 piece
Selling Unitpiece
Physical Dimensions
Product Dimensions
Net Weight161 kg (354.945 lb)
Depth / Length529 mm (20.827 in)
Height1462 mm (57.559 in)
Width350 mm (13.780 in)
Package Dimensions
Depth / Length2050 mm (80.71 in)
Height500 mm (19.69 in)
Width650 mm (25.59 in)
Package Units1 case
Technical Specifications
Electrical Characteristics
Number of Phases3-phase
Input Voltage380 ... 480 V
Frequency47.5 ... 63 Hz
Frame SizeR10
Output Performance
Output Current (Normal Use)650 A
Output Current (Light-Overload)634 A
Output Current (Heavy-Duty)477 A
Output Power (Normal Use)355 kW
Output Power (Light-Overload)355 kW
Output Power (Heavy-Duty)250 kW
Apparent Power Output450 kVA
Efficiency LevelIE2
Environmental Ratings
Degree of ProtectionIP00
Enclosure Type NEMAOpen Type
Altitude1000 m
Operating Humidity95% RH
Sound Level72 dB(A)
Temperature Range-15 °C to 40 °C
Communication & Interfaces
Communication Protocols:
  • CAN
  • DeviceNet
  • EtherNet/IP
  • MODBUS
  • PROFIBUS
  • PROFINET IO
  • TCP/IP
  • Other Bus Systems
Analog Inputs2
Analog Outputs2
Digital In/Outputs6 / 3
RS-485 Interfaces1
USB Interfaces1
Other Interfaces2
Parallel Interfaces2
Included Components
  • Control unit
  • PC connection
Efficiency Performance Data
Full drive unit efficiency according to IEC 61800-9-2:
Operating Point
Frequency / Current		 Absolute Loss Efficiency Relative Loss
0/25%2143 W93.1%0.4%
0/50%3094 W94.8%0.6%
0/100%5693 W95.2%1.1%
50/25%2306 W96.3%0.4%
50/50%3445 W97.2%0.6%
50/100%6585 W97.3%1.2%
90/50%3956 W98.2%0.7%
90/100%8046 W98.1%1.5%
Power Characteristics
Power Consumption8046 W
Standby Loss423 W
Battery Information
Lithium Coin, CR2032, 220 mAh, 3 V, 1 piece, 3 g
