Home /Products/Variable Frequency Drives VFD/INVT Miniature Frequency Converter GD10 Series - Low Power Version 0.2KW/GD10-0R2G-S2-B

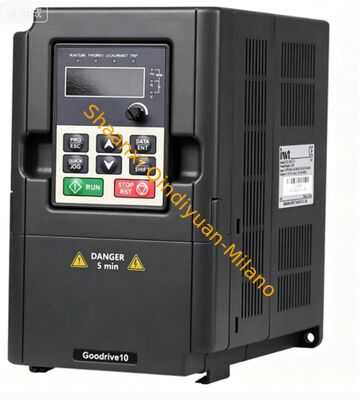

INVT Miniature Frequency Converter GD10 Series - Low Power Version 0.2KW/GD10-0R2G-S2-B

1
MOQ
721
Price
INVT Miniature Frequency Converter GD10 Series - Low Power Version 0.2KW/GD10-0R2G-S2-B
Features Gallery Product Description Chat Now
Features
Specifications
Rated Input Frequency (Hz): 50Hz Or 60Hz, With A Permissible Range Of 47~63Hz
Rated Output Voltage (V): Equal To The Input Voltage With An Error Of Less Than 5%
Control Mode: V/f Control
Maximum Output Frequency: 400Hz
Speed Ratio: 1:100
Overload Capacity: 150% Rated Current For 1 Minute, 180% Rated Current For 10 Seconds, 200% Rated Current For 1 Second
Analog Input Resolution: Not Greater Than 20mV
The Terminal Switching Quantity Input Resolution: No More Than 2ms
Analog Input: 1 Way 0~10V Or 0~20mA
Analog Output: 1 Way 0~10V Or 0~20mA
Digital Input: 5 Ordinary Inputs With A Maximum Frequency Of 1kHz
Highlight:

INVT GD10 miniature frequency converter

,

low power VFD 0.2KW

,

variable frequency drive with warranty
Basic Infomation
Place of Origin: China
Brand Name: INVT
Model Number: 0.2KW/GD10-0R2G-S2-B
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
Rated Input Voltage (V) Single-phase 220V(-15%)~240V(+10%)
Three-phase 220V(-15%)-240V(+10%)
Three-phase 380V(-15%)-440V(+10%)
Rated Input Current (A) Please refer to "Product Ratings"
Rated Input Frequency (Hz) 50Hz or 60Hz, with a permissible range of 47~63Hz
Power output Rated motor capacity (kW) Please refer to "Product Ratings"
Rated output (kVA) Please refer to "Product Ratings"
Rated Current (A) Please refer to "Product Ratings"
Rated Output Voltage (V) Equal to the input voltage with an error of less than 5%
Technology Control Performance Control mode V/f control
Maximum output frequency 400Hz
Speed ratio 1:100
Overload capacity 150% rated current for 1 minute, 180% rated current for 10 seconds, 200% rated current for 1 second
Analog input resolution Not greater than 20mV
The terminal switching quantity input resolution No more than 2ms
periphery interface Analog input 1 way 0~10V or 0~20mA
Analog output 1 way 0~10V or 0~20mA
Digital input 5 ordinary inputs with a maximum frequency of 1kHz
Digital output 1 Y1 terminal output (shared with ordinary digital input) and 1 programmable relay output
Communication 485 Communication
