Home /Products/Variable Frequency Drives VFD/220V 3 Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV

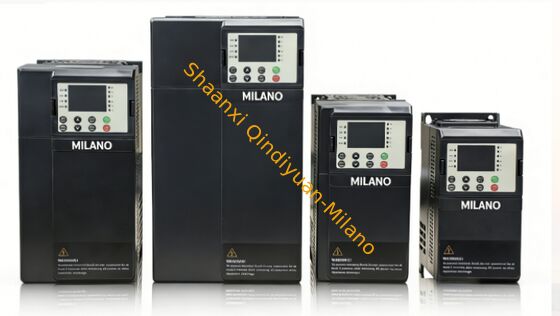

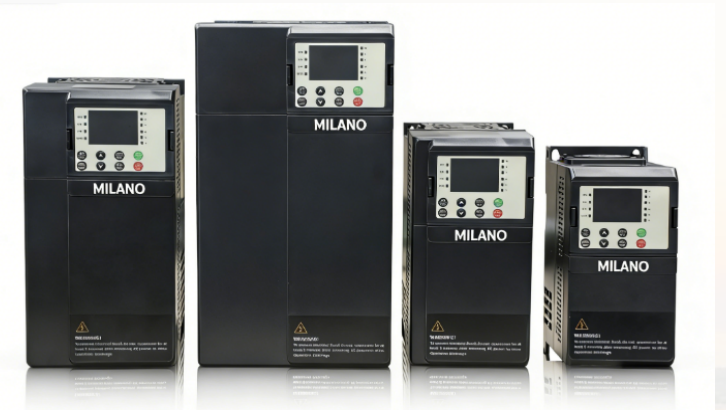

220V 3 Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV

1pcs
MOQ
Negotiable
Price
220V 3 Phase Variable Frequency Drives VFD Milano KV90S-0D75G-1-PV
Features Gallery Product Description Chat Now
Features
Specifications
Powerrating: 0.5 KW To 1000 KW (varies By Model)
Efficiency: Typically 95% To 98%
Function: Control Motor Speed And Torque By Varying Motor Input Frequency And Voltage
Overloadcapacity: 150% Rated Current For 1 Minute
Outputfrequency: 0 To 400 Hz (typical Range)
Communicationprotocols: Modbus, Profibus, Ethernet/IP, CANopen
Inputvoltage: Typically 200-600V AC
Protectionfeatures: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overheating
Outputvoltage: Variable, Up To Input Voltage
Controlmethod: V/F Control, Vector Control, Sensorless Vector Control
Applications: Pumps, Fans, Conveyors, HVAC Systems, Machine Tools
Mountingtype: Wall-mounted Or Panel-mounted
Coolingmethod: Forced Air Cooling Or Liquid Cooling
Productname: Variable Frequency Drive (VFD)
Displaytype: LCD Or LED Display For Status And Parameter Settings
Highlight:

KV90S-0D75G-1-PV

,

3 Phase Variable Frequency Drives VFD

,

220V Variable Frequency Drives VFD
Basic Infomation
Place of Origin: China
Brand Name: Milano
Model Number: KV90S-0D75G-1-PV
Document: Datesheet.xlsx
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Product Specifications
Model -S2 (220V single-phase output) -I (220V single-phase output) -4 (380V three-phase output)
Input voltage range (PV) 190-450V 190-450V 270-900V
Recommended Voc voltage 300-400V 300-400V 450-700V
Optimum MPPT voltage 310V 310V 540V
Maximum MPPT efficiency up to 99% up to 99% up to 99%
Start-up voltage 240V 240V 350V
Minimum Operating Voltage 190V 190V 270V
Input voltage range (AC) 1PH 220-240V(±10%) 1PH 220-240V(±10%) 3PH 380-480V(±10%)
Input voltage frequency 50/60Hz 50/60Hz 50/60Hz
Output voltage range 0-230V 0-230V 0-480V
Output frequency range 0-400Hz 0-400Hz 0-400Hz
Output power range 0.75-4kW 0.75-4kW 0.75-185kW
Power (kW) Rated output current (-S2) Rated output current (-I) Rated output current (-4)
0.75 9 5 2.7
1.5 13 7 3.7
2.2 18 10 5
3 23 13 7
4 28 17 9
5.5 40 25 13
7.5 60 32 17
11 75 45 25
15 90 60 32
18.5 110 75 37
22 150 90 45
30 176 110 60
37 210 150 75
45   176 110
55   210 150
75     176
90     210
110     250
132     300
160     340
185     400
Motor type Single phase motor Asynchronous motors, Permanent magnet synchronous motor
Control mode V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload capacity 150% of rated load for 60s; 180% overload capacity for 10s; 200% of overload capacity for 0.5s
Installation Support wall-mounted
Protection class IP20
Working temperature -10°C~+50°C; after exceeding 40°C, the derating will be reduced by 2% according to 1°C
Cooling method Forced air cooling
Humidity 20%~95%RH (condensation free)
Installation environment Less than 1000m; after exceeding 1000m, the amount will be reduced by 1% according to 100m
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
