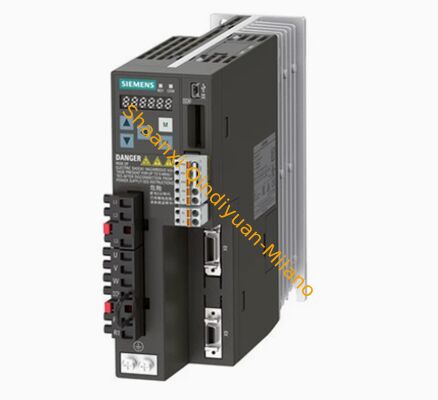

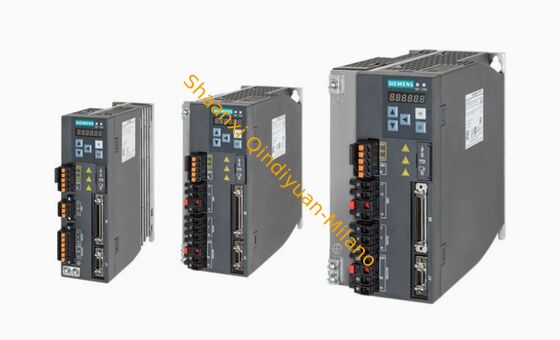

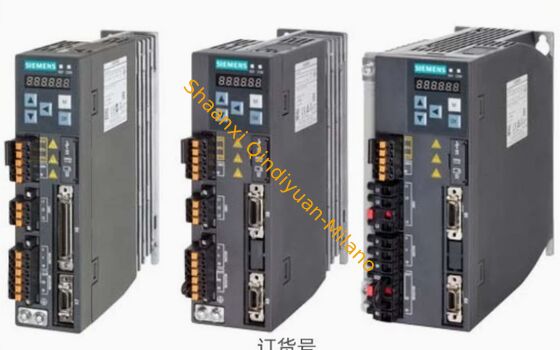

Siemens 6SL3210-5FB11-0UA1 Servo Drive 3AC 200-240V 1KW PROFINET PTI USS / Modbus RTU

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-5FB11-0UA1 Servo Drive 3AC 200-240V 1KW PROFINET PTI USS / Modbus RTU
Features Gallery Product Description Chat Now
Features
Specifications
Points: 40 (24DI+16DO)
Part No: IOP302
Weight: 300 G
Manufacturer: Siemens
Operating_Temperature_Range: -20°C To 60°C
Mpu Points: 12 (8DI + 4DO)
Color: Normal
Actual Value: Negotiabled Price
Number_of_Inputs: 14
Dimensions: 90 X 60 X 75 Mm
Condition: New Original With Sealed
Memory_Capacity: 512 KB
Output Points: 24 Points.
Output Method: Transistor
Number_of_Outputs: 10
Highlight:

6SL3210-5FB11-0UA1

,

Servo Drive 1KW

,

Siemens Servo Drive PROFINET
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB11-0UA1
Document: SINAMICS_V90_GSG_200V_400V_...US.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description

Product Specifications

Parameter Category Parameter Name Value
General Information Product Series SINAMICS V90
Order Number 6SL3210-5FB11-0UA1
Product Description Servo drive, 3AC 200-240 V, 1 kW, PROFINET, PTI, USS/Modbus RTU, Frame Size D, IP20
Product Status Active
Cooling Type Forced air cooling (internal fan)
Frame Size D
Electrical Input Input Voltage 3-phase AC 200–240 V
Voltage Tolerance -15% / +10%
Rated Input Current 7.0 A
Input Frequency 45–66 Hz
Electronics Supply 24 V DC (20.4–28.8 V DC)
Electronics Current 0.3 A (typical)
Output Specifications Rated Output Power 1.0 kW
Rated Output Current (I_N) 6.3 A
Peak Output Current (I_max) 18.9 A (3× I_N, for 3 s)
Output Voltage 0 – input voltage
Output Frequency 0–330 Hz
Control Modes Position, Speed, Torque
Communication Interfaces PROFINET 1 port (RJ45)
PTI (Pulse Train Input) Yes (24 V DC)
USS/Modbus RTU Yes (RS485)
Supported Protocols PROFINET IO, PTI, USS, Modbus RTU
I/O Signals Digital Inputs 4 × 24 V DC (configurable)
Digital Outputs 2 × 24 V DC (configurable, 0.5 A)
Analog Input 1 × 0–10 V / 0–20 mA (configurable)
Encoder Interface Resolver, Incremental (TTL/HTL), Absolute (SSI)
Safety Features Safe Torque Off (STO) Yes (SIL 2 / PL d)
Safety Integrated Optional (via F-DI)
Mechanical Data Width 95 mm
Height 170 mm
Depth 195 mm
Net Weight 2.4 kg
Mounting Wall-mounted (screw)
Cable Entry Top/bottom
Environmental Conditions Operating Temperature 0–45 °C (derate above 45 °C)
Storage/Transport Temperature -40–70 °C
Relative Humidity 5–95% (non-condensing)
Altitude ≤1000 m (no derating); 1000–2000 m (derate 1% per 100 m)
Protection Class IP20 (open type)
Standards & Approvals CE Yes
cULus (Open Type) Yes
EAC Yes
KC Yes
RoHS Yes
Software & Features Configuration Software SINAMICS Startdrive (TIA Portal)
Optimization One-click auto-tuning, real-time optimization
Resonance Suppression Yes (automatic)
Recipe Management Yes
Diagnostics LED, web server, TIA Portal
