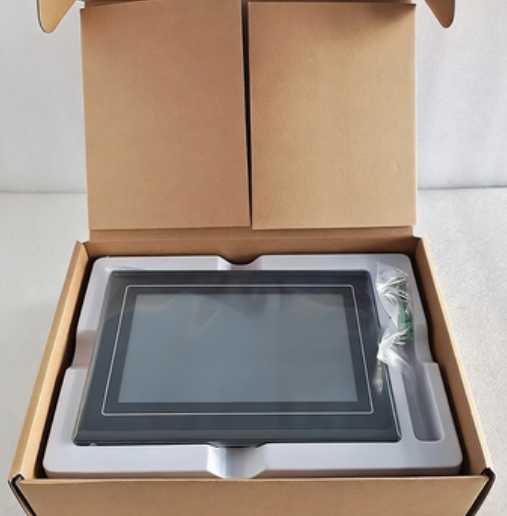

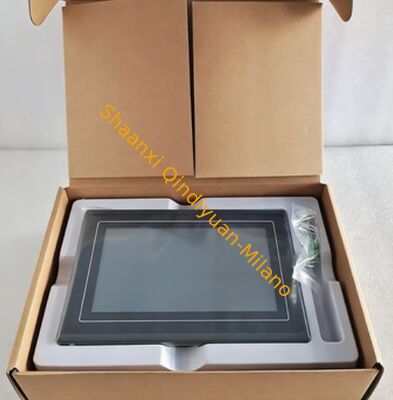

7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV

1 pcs
MOQ
Negotiable
Price
7 Inch LCD Touch Screen Human Machine Interface HMI Panel Weinview MT8070IH2WV
Features Gallery Product Description Chat Now
Features
Specifications
Mountingtype: Panel Mount
Operatingsystem: Embedded Linux
Screensize: 7 Inches
Powersupply: 24 V DC
Productname: Human-Machine Interface (HMI)
Dimensions: 190 Mm X 140 Mm X 40 Mm
Resolution: 800 X 480 Pixels
Displaytype: Touchscreen LCD
Operatingtemperaturerange: -20°C To 60°C
Inputtype: Capacitive Touch
Storagecapacity: 8 GB Flash Memory
Weight: 500 Grams
Highlight:

Human Machine Interface HMI Panel

,

Touch screen Human Machine Interface HMI

,

HMI MT8070IH2WV
Basic Infomation
Brand Name: Weinview
Certification: Brand new original
Model Number: MT8070IH2WV
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Weinview MT8070IH2WV Touchscreen
The MT8070iH2WV is a 7-inch high-performance industrial touchscreen with Ethernet from WEINVIEW's MT series, designed for networked monitoring, remote maintenance, and multi-device networking applications.
Core Hardware Specifications
Display
7-inch 16:9 widescreen TFT LCD, 800×480 resolution, 65,536 colors, LED backlight with 500 cd/m² brightness and 500:1 contrast ratio
Touch Interface
4-wire precision resistive touch with lifespan ≥ 1 million touches
Processing Core
32-bit RISC 400MHz CPU, 64MB DDR2 memory, 128MB Flash storage with built-in RTC real-time clock
Interface Configuration
Interface Type Specifications
Ethernet 1×10/100M RJ45 (Supports VNC, FTP, Remote Monitoring)
Serial Ports COM1: RS-232/485 2W/4W; COM2: RS-232; COM3: RS-232/485 2W
USB 1×USB 1.1 Host (USB flash drive/mouse), 1×Mini USB 2.0 Client (program download)
Storage 1×SD/SDHC card slot (maximum 32GB)
Audio Line-out (alarm notification)
Physical Specifications
  • Power Supply: 24VDC (±20%), approximately 6W power consumption (250mA@24V) with built-in power isolation protection
  • Dimensions: 200×146×42.5mm (overall), 192×138mm (panel cutout), approximately 0.85kg weight
  • Protection: IP65/NEMA4 front panel rating, fanless cooling design
  • Operating Environment: 0~45°C operating temperature, -20~60°C storage temperature, 10%~90% humidity (non-condensing)
  • Certifications: CE and FCC Class A certified
Software and System Features
  • Programming Software: EB8000 V4.34 and above (free, no licensing fees)
  • Operating System: Windows CE kernel
  • Protocol Support: Compatible with mainstream PLC protocols including Siemens, Mitsubishi, Omron, Delta, and others
  • Network Features: Supports VNC remote monitoring, FTP file transfer, and EasyAccess remote maintenance
Model Designation Breakdown
  • MT: Weinview High-End Series
  • 8: Ethernet Interface
  • 07: 7-inch Screen
  • iH2: Hardware Version iH2
  • WV: WeinView Mainland China Channel Version
Typical Applications
  • Networked equipment monitoring and remote maintenance
  • Multi-PLC networking and centralized production line monitoring
  • Data acquisition and upload systems
  • Remote diagnostics and troubleshooting
  • Replacement of traditional HMIs for enhanced remote management
