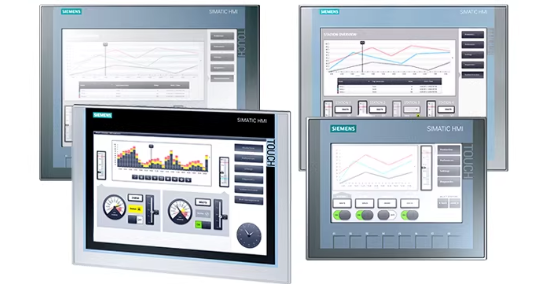

Siemens 6AV2124-0UC24-1AX0 SIMATIC HMI 24V DC 45W 650mA IP65 / IP20

The 6AV2124‑0UC24‑1AX0 is TP1900 Comfort Pro support‑arm‑type industrial touch HMI of Siemens SIMATIC Comfort series. Powered by 24V DC, 45W, 650mA, front‑panel IP65 and rear IP20 protection, it is specially designed for swing arm mounting installation on equipment side. It is equipped with dual‑port Ethernet integrated switch, PROFIBUS‑DP, MPI, RS422/RS485, dual‑USB2.0 and dual‑SD‑card interfaces, can realize stable data interconnection with Siemens PLC, frequency converters and other automation components. Project configuration is completed by WinCC Comfort / Advanced engineering software. Support‑arm installation design saves cabinet space, ideal for on‑machine operation stations of large mechanical equipment.

• 18.5‑Inch Widescreen TFT Resistive Touch Display 1366×768 resolution, 16‑million‑color high‑brightness screen, dimmable LED backlight, supports glove‑touch operation.
• Special Support‑arm Installation Structure Top flange design for swing‑arm mounting, flexible operation position adjustment, suitable for installation outside control cabinet.
• Full‑featured Industrial Communication Interfaces 2‑port Ethernet switch, RS422/RS485, MPI, PROFIBUS‑DP, dual USB2.0, dual SD‑card slots, convenient for multi‑device networking and centralized group control.
• 24V DC Stable Industrial Power Supply Rated power consumption 45W, operating current 650mA, wide voltage tolerance from 19.2V‑28.8V DC, adapts to unstable workshop power‑supply environment.
• 24 MB Built‑in Configuration Memory Supports recipe management, historical data logging and long‑time alarm record storage for complex HMI screen programs.
• IP65 Front / IP20 Rear Industrial Protection Rugged industrial housing, dust‑proof and splash‑proof front panel, can work reliably in ordinary factory environment.
• Built‑in Audio Speaker & Global Certifications Audible fault‑alarm reminder; Complies with CE, UL, cULus, RCM, EAC, RoHS, meets worldwide export automation project standards.

Warehouse reference scene for bulk supply: Suitable for industrial automation component warehouse stocking, export DDP bulk shipment.

• Net weight: 7.35 kg / pc
• Single carton gross weight: 8.20 kg / pc
• Original brand new, individual export carton, 12‑month manufacturer warranty.
