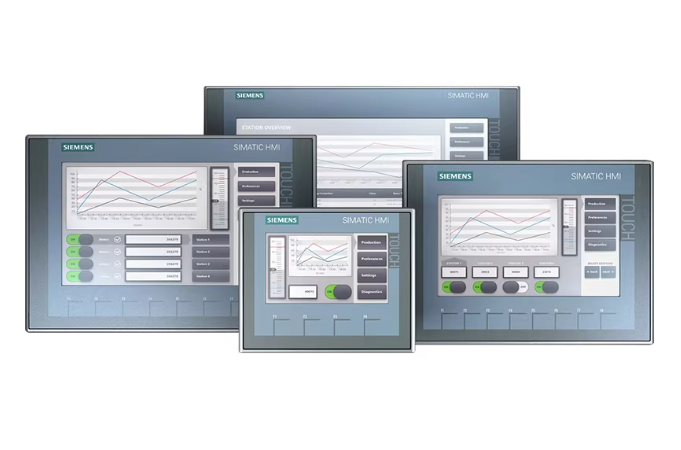

SIMATIC Human Machine Interface HMI Panel Mount Siemens 6AV2144-8UC20-0AA0

The 6AV2144‑8UC20‑0AA0 is TP1900 Comfort INOX stainless‑steel capacitive multi‑touch HMI from Siemens SIMATIC series. It adopts corrosion‑resistant stainless‑steel front panel, front‑side high‑level IP66K / IP69K protection grade, powered by DC24V, designed for harsh, wet, dust‑laden, frequent‑cleaning industrial environments such as food, beverage, pharmaceutical and chemical workshops. This 18.5‑inch widescreen operator panel is equipped with dual‑port Ethernet switch, PROFIBUS‑DP, MPI, RS422/RS485 and USB interfaces, can connect seamlessly with Siemens PLC, drives and other automation components. Project configuration is completed via WinCC Comfort / Advanced software, realizing on‑site parameter setting, real‑time data monitoring, trend curve display and fault alarm management.

• Stainless‑Steel Front Panel, High‑level Waterproof & Dustproof Corrosion‑proof stainless steel front, Front IP66K / IP69K, rear IP20, withstands high‑pressure water washing, ideal for sanitary‑standard workshops.
• 18.5‑Inch PCT Capacitive Multi‑touch Screen 1366×768 resolution, 16‑million‑color TFT widescreen, dimmable LED backlight, supports multi‑finger gesture operation, clear visual display.
• Abundant Industrial Communication Ports 2‑port integrated‑switch Ethernet, RS422/RS485, MPI, PROFIBUS‑DP, dual USB2.0, dual SD‑card slots, flexible multi‑device networking control.
• DC 24V Industrial Power Supply Wide input voltage tolerance 19.2‑28.8V DC, stable operation under fluctuating workshop power‑supply conditions.
• Large Configuration Storage Space 24 MB onboard configuration memory, supports recipe management, data logging and long‑term alarm record storage.
• Built‑in Audio Speaker Audible alarm output, operators can quickly detect equipment failures.
• Global Industry Certifications Complies with CE, UL, cULus, EAC, RoHS, suitable for worldwide export automation projects.

• Food & Beverage Processing Machinery
• Pharmaceutical Production Equipment
• Chemical & Water‑treatment System
• Packaging Machinery
• Textile, Printing Industry
• Hygiene‑required Automated Production Lines

Food production‑line operation station, pharmaceutical workshop control terminal, beverage filling equipment, high‑cleanliness packaging machine, sewage treatment monitoring panel, chemical processing control cabinet.

Warehouse reference scene for bulk supply: Suitable for industrial automation component warehouse stocking, export DDP bulk shipment.

• Net weight: 7.2 kg / pc
• Single carton gross weight: 8.05 kg / pc
• Original brand new, individual export carton, 12‑month manufacturer warranty.
