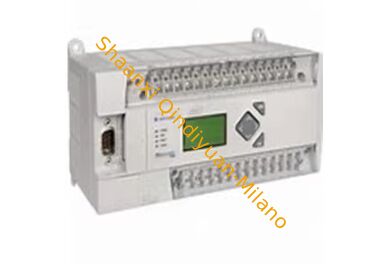

Allen‑Bradley 1766‑L32BXBA MicroLogix 1400 PLC Product Introduction
Basic Info
Model No.: 1766-L32BXBA
Brand: AB
Series: MicroLogix 1400 Compact Programmable Logic Controller
Note: The 10.4” Color Touchscreen HMI is matched peripheral device for this PLC system, not integrated inside this controller.
1. Product Overview | What This Product Does
This is a compact industrial PLC (Programmable Logic Controller) belonging to Rockwell MicroLogix 1400 series, acting as the core control brain for small & medium automated production equipment.
It collects real-time signals from on-site sensors, switches and analog measuring instruments via built-in I/O ports, executes pre-edited ladder logic control programs, and outputs commands to drive actuators, conveyors, valves and other execution components.
Equipped with Ethernet & RS‑232 multi communication interfaces, it supports data interaction with upper computer, HMI touch screen and other automation devices, realizing equipment automatic operation, data recording, remote monitoring and fault alarming, widely applied to decentralized small automation control scenarios.
2. Core Product Advantages & Key Features
✅ Built‑in Multi‑Type I/O & Onboard Analog Function
32 points integrated I/O including digital input/output + 4-channel analog input + 2-channel analog output, no extra analog module needed for pressure/temperature signal collection.
✅ Triple Communication Ports for Flexible Networking
1×Ethernet IP port + 2×RS232/485 serial ports; supports Modbus RTU, DF1, DH‑485, DNP3, EtherNet/IP protocols, realizes peer-to-peer linkage, email alarm and web page remote access.
✅ Expandable System Capacity
Max compatible with 7 sets of 1762 series expansion I/O modules, extendable to 256 discrete I/O points to meet production line upgrading demands.
✅ High‑Speed Motion Control Ability
6 channels 100kHz high‑speed counter & pulse output, directly supports positioning control, picking & placing and stepping motor drive without additional motion modules.
✅ Onboard Backlit LCD Display
Embedded screen & operation keypad, directly check I/O status, program operation data and fault codes on site without connecting programming software.
✅ Powerful Data Storage Function
10KB user program memory, 128KB data log storage & 64KB recipe storage, supports batch parameter switching and production data traceability.
✅ Stable Industrial Grade Protection
IP20 protection grade, wide working temperature range (-20℃ ~ +60℃), anti-interference design, suitable for harsh workshop industrial environment.
3. Detailed Technical Parameters
| Item |
Specific Specification |
| Model |
1766-L32BXBA |
| Power Supply |
24V DC (-15%~+10%) |
| Digital Input |
20 points (12 high-speed 24VDC input + 8 standard 24VDC input) |
| Digital Output |
12 points (6 relay output + 3 high-speed DC FET output + 3 standard DC FET output) |
| Onboard Analog Input |
4 channels, 12-bit resolution, 0~10VDC voltage signal |
| Onboard Analog Output |
2 channels, 12-bit resolution, 0~10VDC voltage signal |
| Communication Interface |
Ethernet Port + Isolated RS232/485 Port + Non-isolated RS232 Port |
| Program Memory |
10K Words |
| Data Memory |
10K Words |
| Max Expansion |
7pcs 1762 I/O expansion modules |
| Mounting Method |
DIN Rail Mount / Panel Screw Mount |
| Overall Dimension |
90mm (H) × 180mm (W) × 87mm (D) |
| Net Weight |
0.9kg |
| Certifications |
CE, UL, C-Tick, KCC, Class I Div 2 Hazardous Location Approval |
| Origin |
Singapore |
| Standard Warranty |
12 Months |
4. Applicable Industries & Application Scenarios
Main Covered Industries
- Food & Beverage Processing Machinery
- Pharmaceutical Production Equipment
- Packaging & Filling Assembly Lines
- Printing & Labeling Equipment
- Water Treatment & Wastewater Monitoring SCADA System
- Conveying & Material Handling Automation
- General Industrial Custom Machinery
- HVAC & Building Automatic Control
- Pick-and-place Positioning Automation Equipment
Application Scene Display
① On-site Automation Deployment
Installed inside equipment electrical cabinet, matched with 10.4-inch color touchscreen HMI to build man-machine control system; operators set parameters on HMI touch panel, PLC executes automatic logic control.
② Warehouse Stock Storage Scene
Original factory sealed packaging, stored in constant temperature & dry industrial parts warehouse, anti-dust and anti-collision packaging to guarantee product integrity for bulk export & order stocking.
5. Compliance Description
- Complete HS Code classification: 8537109090 (Programmable Logic Controller for Industrial Automation)
- Clear origin marking: Made in Singapore, exported from China
- Full parameter disclosure including dimension, weight, interface, certification and expandable attribute
- Standardized English product description, no ambiguous terminology, meets cross-border B2B inquiry, quotation and customs declaration requirements
- Separated definition of main controller and matched 10.4” touch screen HMI, avoiding model & function confusion
