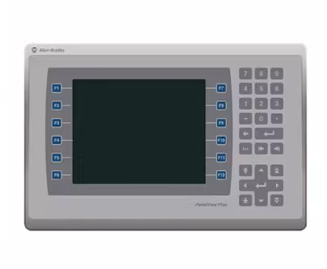

Allen Bradley 2711P-T10C4D8 Touchscreen HMI Human Machine Interface

Basic Information

• Brand/Series: Allen-Bradley (Rockwell Automation) PanelView Plus 6 1000 Color Touch Terminal

• Type: Industrial-grade Human Machine Interface (HMI)

• Lifespan: Discontinued; the market is mainly for used/refurbished products; original system was Windows CE 6.0, pre-installed with FactoryTalk View ME

• Core Description: 10.4-inch color touchscreen, Ethernet + RS-232 communication, DC power supply (24V nominal)
Display and Touch Control

• Screen: 10.4-inch color active matrix TFT LCD, resolution 640×480 (VGA), 65,536 colors (18-bit)

• Touch: 8-wire analog resistive touchscreen (supports operation with gloves), click life ≥1 million times

• Backlight life: Typical ≥50,000 hours
Communication and Storage

• Interface: 1×10/100 Mbps Ethernet (Auto-MDI/MDI-X), 1×RS-232, 2×USB Host, 1×USB Device

• Protocol Support: DF1, EtherNet/IP, Modbus and other standard industrial protocols, seamlessly integrated with CompactLogix/ControlLogix

• Memory: 512 MB Flash, 512 MB RAM
Electrical and Protection

• Power Input: 18–32 V DC (24 V DC nominal), with reverse connection and overvoltage protection

• Power Consumption: Approx. 30 W (70 W peak)

• Protection Rating: Front panel IP65; chassis suitable for NEMA 12/13/4X (indoor)

• Operating Temperature: 0°C to 55°C; Storage Temperature: -20°C to 70°C
Physical and Logistics

• Mounting Method: Panel-mounted

• Weight: Approx. 2.72 kg (6 lbs)
