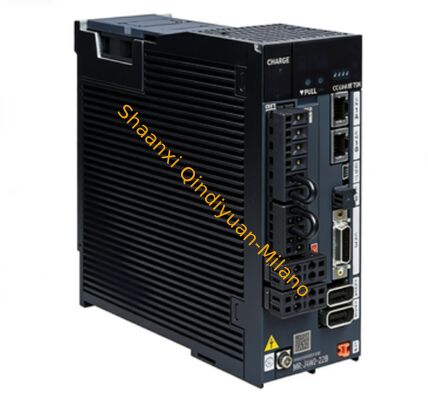

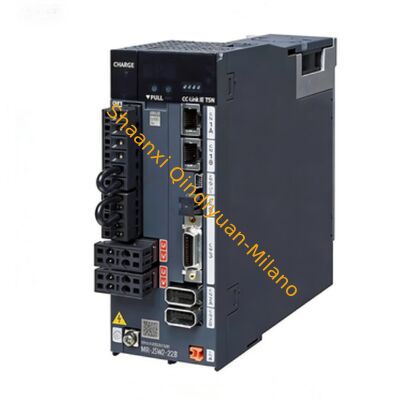

MITSUBISHI MR-J5-100A Compatible with CC-Link IE TSN, EtherCAT, SSCNET III/H, and general-purpose interface

1
MOQ
Negotiable
Price
MITSUBISHI MR-J5-100A Compatible with CC-Link IE TSN, EtherCAT, SSCNET III/H, and general-purpose interface
Features Gallery Product Description Chat Now
Features
Specifications
Power Rating: 2000W
Controlmode: Position/Speed/Torque
Adjustable Speed Range: 1:1000 (V/C)
Certifications: CE, RoHS
Ac Voltage: 208-230 / 240 V,220/380V,60V,AC220V
Shipping Methods: DHL/FEDEX/EMS/TNT
Starting Torque: 0hz/180%( VC)
Weight: 1.2kg
Feedback Type: Encoder, Resolver, Hall Sensors
Ratedcurrent: 10A
Resolution Ratio: NO
Supplier Type: ODM
Productname: Servo Drive
Warranty: 1 Year
Application: Industrial Control
Highlight:

Mitsubishi MR-J5 servo drive

,

CC-Link IE TSN servo drive

,

EtherCAT compatible servo drive
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: MR-J5-100A
Document: sv2006-5c.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MR-J5: The fifth generation servo system of MELSERVO;
100: Corresponding to the rated output of 1kW;
A: Compatible with single-phase / three-phase AC 200–240V, supports incremental encoder motors, and is a low-voltage general-purpose pulse type.
Core parameters
Power supply and output
  • Main circuit: Single-phase / three-phase AC 200–240V (50/60Hz), also supports DC 283–340V; Control circuit DC24V ±10%.
  • Rated power 1kW, rated output current 4.5A, 3 times overload (about 13.5A peak), suitable for short-term impact loads.
Control performance
  • Speed loop bandwidth 2.5kHz, fast dynamic response; Supports seamless switching between position, speed, and torque modes.
  • 0.3-second rapid self-tuning + mechanical resonance suppression, servo ON can automatically optimize; Pulse instructions up to 4M pulses/s.
  • Compatible with 17-bit incremental encoders (131072 p/rev), high positioning accuracy.
Safety and diagnosis
  • Standard STO (safety torque shutdown), compliant with PLd/SIL2; Equipped with full protection against overcurrent, overvoltage, undervoltage, overheating, etc.
  • Mechanical diagnostic function, capable of diagnosing ball screw, belt, gear, etc., facilitating predictive maintenance.
Physical and environmental
  • IP20 protection, suitable for installation in control cabinets; Operating temperature 0 to +60℃; Compact size, easy for dense arrangement.
Interfaces and debugging
  • Equipped with pulse instructions (open collector / differential), analog I/O, STO safety terminals, etc.
  • Can complete parameter tuning, monitoring, alarm query, etc. through MR Configurator3 software, using USB or RS-485.
Compatibility and applications
  • Compatible motors: HG-KR13, HJ-KS103, etc. 1kW incremental servo motors.
  • Typical applications: Packaging machinery, electronic assembly equipment, small CNC machines, automated production lines, etc., meeting the needs of precise positioning and dynamic response for medium and small power.
