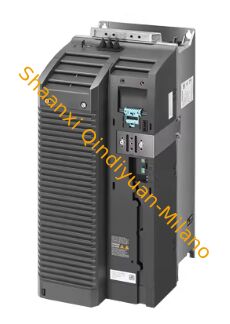

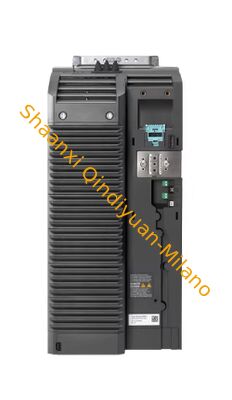

General Purpose Vector Frequency Inverter Siemens 6SE6440-2UC17-5AA1

1pcs
MOQ
Negotiable
Price
General Purpose Vector Frequency Inverter Siemens 6SE6440-2UC17-5AA1
Features Gallery Product Description Chat Now
Features
Specifications
CPU_Speed: 100 MHz
Number_of_Outputs: 10
Points: 40 (24DI+16DO)
Weight: 0.3 Kg
Output Typt: Relay
Part Type: Sysmac CPM2A
Dimensions: 90mm X 60mm X 75mm
Power_Consumption: 5 W
Mounting_Type: DIN Rail
Power Supply Voltage: AC240-360V.
Part No: E-03B
Manufacturer: Siemens
Output Points: 24 Points.
Model: S7-1200
Color: Normal
Highlight:

6SE6440-2UC17-5AA1

,

Vector Frequency Inverter Siemens

,

General Purpose Vector Frequency Inverter
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SE6440-2UC17-5AA1
Document: 6SE6440-2UC17-5AA1 datashee...et.pdf
Payment & Shipping Terms
Delivery Time: 5-7workday
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Parameter NameValue
General Information
Product SeriesMICROMASTER 440 (MM440)
Order Number6SE6440-2UC17-5AA1
Product DescriptionGeneral Purpose Vector Frequency Inverter without Filter
Product StatusDiscontinued (Replaced by SINAMICS V20/G120C)
Input Voltage TypeSingle-phase or Three-phase AC
Input Specifications
Input Voltage Range200-240 V AC
Input Voltage Tolerance+10% / -10%
Input Frequency47-63 Hz
Rated Input Current (Single-phase)8.2 A
Rated Input Current (Three-phase)4.7 A
Output Specifications
Rated Output Power (CT/VT)0.75 kW (1 hp)
Rated Output Current3.9 A
Output Voltage Range0-240 V AC (0-100% of input voltage)
Output Frequency Range0-650 Hz
Control ModesVector Control (V/F, Sensorless Vector, Closed-loop Vector with Encoder)
Overload Protection
Overload Capacity 1150% of rated current for 60 seconds (followed by 100% for 240 seconds in 300-second cycle)
Overload Capacity 2200% of rated current for 3 seconds (limited by IGBT protection)
Dimensions & Weight
Dimensions (H x W x D)173 mm x 73 mm x 150 mm
Form FactorFlange Mount (Type A)
Net WeightApprox. 1.6 kg (3.5 lb)
Cooling System
Cooling TypeForced Air Cooling (Internal Fan)
Ambient Temperature Range0°C to 40°C (32°F to 104°F) (50°C with derating)
Storage Temperature Range-25°C to 70°C (-13°F to 158°F)
Electrical Characteristics
DC Link VoltageApprox. 310 V DC (from 230 V AC input)
Power Factor (cos φ)>0.95 at rated load
Efficiency>96% at rated load
IP Protection ClassIP20 (Chassis Mount)
Safety & Standards
Standards ComplianceCE, UL, CSA, RoHS
EMC ComplianceEN 61800-3 (without filter)
Overvoltage ProtectionIntegrated (DC link overvoltage protection)
Undervoltage ProtectionIntegrated (DC link undervoltage protection)
Communication Interface
Built-in InterfacesRS485 (Modbus RTU), USS Protocol
Optional InterfacesPROFIBUS DP, DeviceNet, CANopen (via communication modules)
I/O Interfaces
Digital Inputs3 x Optically Isolated Digital Inputs
Digital Outputs1 x Relay Output (3 A, 250 V AC)
Analog Inputs1 x 0-10 V / 0-20 mA (configurable)
Analog Outputs1 x 0-20 mA (configurable)
Brake ChopperOptional (Internal brake chopper available for 0.75 kW and above)
Additional Features
Built-in FunctionsPI Controller, Flying Start, Skip Frequencies, Motor Overload Protection, Parameter Copying
Optional AccessoriesBOP-2 Basic Operator Panel (6SE6400-0BE00-0AA0), AOP-3 Advanced Operator Panel
Load Types SupportedConstant Torque (CT), Variable Torque (VT)
