Home /Products/Variable Frequency Drives VFD/PT5501A Variable Frequency Drives VFD Siemens 6ES7288-1ST40-0AA0 CPU ST40 DC/DC/DC

PT5501A Variable Frequency Drives VFD Siemens 6ES7288-1ST40-0AA0 CPU ST40 DC/DC/DC

1PCS
MOQ
Negotiable
Price
PT5501A Variable Frequency Drives VFD Siemens 6ES7288-1ST40-0AA0 CPU ST40 DC/DC/DC
Features Gallery Product Description Chat Now
Features
Specifications
Part No: PT5501A
Output Method: Transistor
Operating_Temperature_Range: -20°C To 60°C
Total Points: 60 Points.
Weight: 0.3 Kg
Actual Value: Negotiabled Price
Application: Oil And Gas Factory
Input Points: 36 Points.
Power_Consumption: 5 W
Number_of_Outputs: 10
Manufacturer: Siemens
Output Points: 20
Input_Voltage: 24 V DC
Memory: 50 KB
Number_of_Inputs: 14
Highlight:

6ES7288-1ST40-0AA0

,

Variable Frequency Drives VFD Siemens

,

PT5501A Variable Frequency Drives VFD
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7288-1ST40-0AA0
Document: 6ES7288-1ST40-0AA0.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
General Information

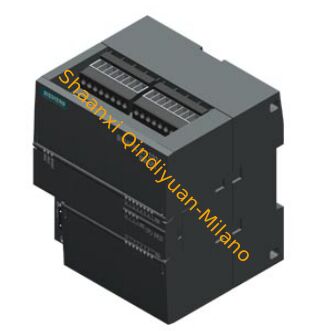

Product Type Designation CPU ST40 DC/DC/DC
Order Number 6ES7288-1ST40-0AA0
Programming Package STEP 7 Micro/WIN SMART
Installation Type STEP 7 Micro/WIN SMART
Supply Voltage
Type of Supply Voltage 24 V DC
Permissible Range Lower Limit 20.4 V DC
Permissible Range Upper Limit 28.8 V DC
Input Current Max 680 mA (24 V DC)
Inrush Current Max 11.7 A (at 28.8 V)
24 V DC Sensor Power Max Output 300 mA
5 V DC Backplane Bus Max Output 1.4 A
Power Loss Max 18 W
Memory
Type of Memory DDR (Flash and RAM)
User Data Memory 16 kbyte
Program Memory Size 24 kbyte
Micro Memory Card Support Yes (microSDHC Card optional)
CPU Processing Times
Bit Operations Typ 150 ns/instruction
Word Operations Typ 1.2 µs/instruction
Floating Point Arithmetic Typ 3.6 µs/instruction
Address Area
Digital Inputs Address Area 144 byte (256 bit)
Digital Outputs Address Area 144 byte (256 bit)
Analog Inputs Address Area 56 words
Analog Outputs Address Area 56 words
Time of Day Clock
Type Hardware clock (no battery backup)
Real-time Clock Yes
Backup Time 7 days
Max Deviation per Day 4 s (within 120s/month at 25 °C)
Digital Inputs
Number of Digital Inputs 24
Input Voltage Type DC
Rated Value 24 V DC
Signal "0" Threshold I0.0 to I0.3 < 1 V DC; I0.4 to I2.7 < 5 V DC
Signal "1" Threshold I0.0 to I0.3 > 4V; I0.4 to I2.7 > 15V
Signal "1" Current Typ 4 mA
Max Shielded Cable Length 500 m (50m shielded for HSC inputs)
Max Unshielded Cable Length 300 m
Digital Outputs
Number of Digital Outputs 16 (Transistor)
Number of High-speed Outputs 3
Short-circuit Protection No
Max Resistive Load per Output 0.5 A
Max Lamp Load per Output 5 W
Max Shielded Cable Length 500 m
Max Unshielded Cable Length 150 m
Interfaces
Number of Industrial Ethernet Interfaces 1
Number of RS 485 Interfaces 1
Ethernet Interface
Physics RJ45
Isolation Transformer isolated (1,500V AC)
Transmission Rate 10/100 Mbit/s (automatic detection)
Autonegotiation Yes
Autocrossing Yes
RS 485 Interface
Max Baud Rate 187.5 kbit/s
Communication Functions
S7 Communication Supported Yes (as server and client)
Integrated Functions
Number of High-speed Counters 4 (4 HSC at 200 kHz single phase or 2 HSC at 100 kHz A/B phase)
PID Controller Yes (max 8 loops, continuous/binary outputs, auto/manual mode)
EMC
Electrostatic Discharge Immunity IEC 61000-4-2 (8 kV air discharge)
Radio Frequency Immunity IEC 61000-4-3 (10 V/m, 80 to 1000 MHz)
Electrical Fast Transient Immunity IEC 61000-4-4 (2 kV supply lines, ±2 kV signal cables)
Conducted Immunity IEC 61000-4-6 (10 V, 150 kHz to 80 MHz)
Interference Emission EN 55 011 Class A (industrial areas), EN 61000-6-4
Degree of Protection
IP Rating IP20 (EN 60529)
Standards Approvals
CE Mark Yes
Ambient Conditions
Max Free Fall Height 0.3 m (five times in product package)
Operating Temperature Min 0 °C
Operating Temperature Max 55 °C (horizontal), 45 °C (vertical)
Storage/Transport Temperature Min -40 °C
Storage/Transport Temperature Max 70 °C
Storage/Transport Air Pressure Range 660 to 1080 hPa
Installation Altitude Range -1000 m to 2000 m (sea level)
Max Relative Humidity (25°C, no condensation) 95%
Programming Languages
LAD (Ladder Diagram) Yes
FBD (Function Block Diagram) Yes
STL (Statement List) Yes
Dimensions
Width 125 mm
Height 100 mm
Depth 81 mm
Weights
Approximate Weight 410.3 g
