7 Inch Touchscreen Human Machine Interface HMI HMIST6500FW Schneider Electric HMI

HMIST6500FW is a Harmony ST6 series industrial touchscreen Human Machine Interface (HMI) developed by Schneider Electric. It acts as the on-site human-computer interaction terminal for automated control systems. Operators can realize real-time equipment running status monitoring, production parameter modification, fault alarm viewing, manual jog control, recipe management and production data recording through the touch screen. It supports seamless connection with PLC, frequency converter and various automation controllers, widely used for on-site visualization and operation of complete machinery and production lines. This model adopts no-logo overlay design, convenient for OEM equipment brand customization.

• Packaging machinery & printing equipment
• Plastic injection molding, rubber machinery
• CNC machine tools and metal processing automation
• Food & beverage production lines
• Water treatment and environmental protection equipment
• Logistics automated conveying system
• HVAC building automatic control
• Textile, woodworking and ceramic machinery
• Pharmaceutical automated production equipment

The HMI is embedded and installed on the equipment cabinet door. Field workers view real-time production data, adjust process parameters, confirm alarm information and operate the machine manually. It can communicate with multiple brand PLCs to realize centralized visualization of the whole production process.

1. Main product photo: HMIST6500FW front view

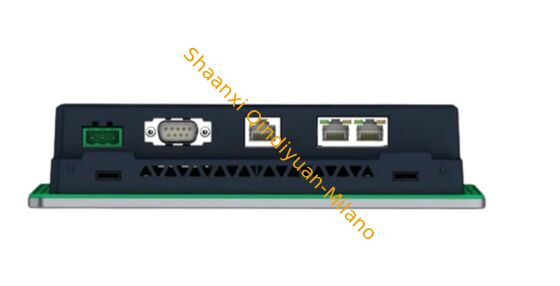

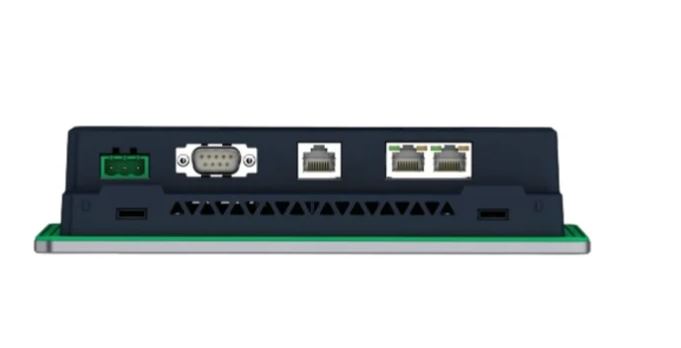

2. Interface diagram: Rear wiring port schematic diagram
3. Application scene photo: HMI installed on automation machine cabinet / production workshop workstation
4. Warehouse photo: Original sealed stock stored in industrial component warehouse
5. Auxiliary drawing: Panel mounting cutout dimension drawing
