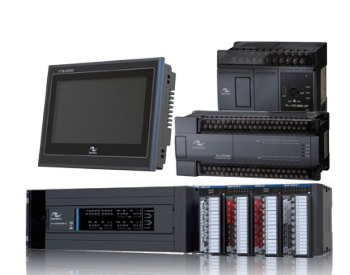

INOVANCE H3U‑6464MT‑XP

64DI 64DO Transistor Motion PLC｜AC Power Supply｜NPN/PNP

1. Product Overview

The INOVANCE H3U‑6464MT‑XP is a high‑performance motion‑control programmable logic controller from H3U series. Equipped with 64 digital inputs and 64 transistor digital outputs, it supports NPN/PNP input sensor mode and differential high‑speed pulse output. Powered by AC 100‑240VAC, it executes logic processing, high‑speed positioning, servo & stepper motion control, data collection and device interlock control for automation machinery. It supports multi‑protocol industrial communication, convenient to connect with HMI, servo drives, sensors and other field devices, widely applied for medium‑size automatic equipment requiring large local I/O points.

2. Core Advantages & Key Features

• ✅ Large‑scale Local I/O Configuration 64‑point digital input & 64‑point transistor output; compatible with NPN / PNP sensor input, differential high‑speed pulse output for servo/stepper driving.
• ✅ Powerful Motion Control Performance Support multi‑channel high‑speed pulse output, S‑curve acceleration & deceleration, electronic cam, linear / circular interpolation, positioning instructions for multi‑axis motion equipment.
• ✅ Rich Industrial Communication Interfaces Built‑in 100Mbps Ethernet (Modbus‑TCP), RS485 Modbus‑RTU, CANopen / CANlink field‑bus, USB programming port. Realize data exchange with HMI, servo and third‑party automation devices.
• ✅ High‑speed Processing Capability Basic instruction execution speed 100 ns, 64 k‑steps program memory, large data register capacity; no‑battery flash storage for program & recipe data.
• ✅ Flexible I/O Expansion Ability Support local and remote extension modules, max up to 7936 remote digital I/O, adapt equipment upgrading and expansion demand.
• ✅ Wide‑range AC Power Input AC 100‑240 VAC wide voltage power supply, adapt unstable workshop power grid environment; built‑in 24VDC sensor power output.
• ✅ Complete Protection & Industrial Reliability Over‑current, over‑voltage, short‑circuit and anti‑interference design, suitable for factory workshop cabinet installation.
• ✅ User‑friendly Programming Software Programmed by AutoShop software, support ladder diagram and multiple programming languages, convenient for project development, debug and maintenance.

3. Technical Parameters

4. Application Industries & Typical Scenarios

Applicable Industries

• Packaging Machinery
• Woodworking Equipment
• Material Handling & Conveyor Lines
• Textile Machinery
• Printing Equipment
• Automated Assembly Lines
• General Factory Automation

Typical Equipment

Multi‑axis automatic assembly machine, large conveyor control system, packaging production line, wood‑working processing equipment, textile machinery, sorting equipment, custom automation machine with abundant I/O signals.

Warehouse reference scene for bulk supply: Suitable for industrial automation component warehouse stocking, export bulk shipment.

5. Packing & Logistics Reference

• Net weight: 2.35 kg / pc
• Single carton gross weight: 2.60 kg / pc
• Original brand new, individual export carton, 12‑month manufacturer warranty.
