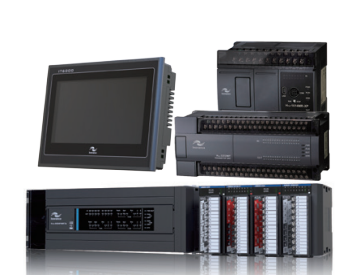

INOVANCE H3U‑4832MT

INOVANCE H3U Series PLC (Programmable Logic Controller)

Note:H3U‑4832MT is a complete set of CPU plus expansion modules for 48 inputs and 32 outputs configuration

1. Product Overview

The INOVANCE H3U‑4832MT belongs to the H3U series high‑performance compact programmable logic controller. This complete unit is configured with 48 digital inputs and 32 NPN transistor digital outputs, powered by AC 100‑240VAC. It features 100ns basic instruction processing speed and 64K‑step program memory, 9552 data registers. Equipped with 8‑channel 200kHz high‑speed input, 5‑channel 200kHz high‑speed pulse output, together with Ethernet, RS485 Modbus‑RTU, CANopen/CANlink and USB communication interfaces.

It is used to implement equipment logic sequence control, high‑speed positioning, multi‑axis motion interpolation, data acquisition and inter‑device interconnection for automated machinery. Input terminals support both NPN and PNP sensor signals, NPN transistor output is optimized for driving servo and stepper drivers. It can connect HMI, frequency converters, servo drives and sensors to realize complete machine automation control, widely used in medium‑size automated equipment and production lines.

2. Core Advantages & Key Features

• High‑speed Processing Performance Basic instruction execution time reaches 100ns, with large‑capacity 64K‑step program memory and 9552‑word data register, stably handles complex logic calculation and multi‑axis motion control tasks.
• Transistor Output for Motion Application 48‑point digital input compatible with NPN/PNP universal sensor signals; 32‑point NPN transistor output. High‑speed pulse output supports servo/stepper drive positioning. Adopt CPU+expansion module complete‑set solution, meets the I/O requirements of automation stations.
• Powerful Motion Control Function 8‑channel 200kHz high‑speed input; 5‑channel 200kHz high‑speed pulse output. Support S‑curve acceleration & deceleration, two‑axis linear and circular interpolation, electronic cam synchronization for positioning‑oriented equipment.
• Abundant Multi‑bus Communication 100M Ethernet (Modbus‑TCP), RS485 Modbus‑RTU, CANopen / CANlink field bus, USB programming port. Convenient networking to realize centralized monitoring of multiple automation devices.
• Universal AC Power Supply AC 100‑240VAC wide‑range power input, keeps stable operation under industrial power‑grid fluctuation conditions.
• IEC 61131‑3 Standard Programming Environment Work with AutoShop programming software, support Ladder Diagram, SFC, IL programming languages, easy for program editing, debugging and parameter backup.
• Comprehensive Built‑in Protection Mechanism Over‑voltage, under‑voltage, over‑current, over‑temperature, short‑circuit and module fault diagnosis functions are integrated to improve the stability of the whole automation system.
• Flexible Expansion Potential Support local and remote I/O expansion via CAN bus, users can further expand digital and analog points according to project demands.

3. Technical Parameters

4. Application Industries & Typical Scenarios

Applicable Industries

• Packaging & labeling machinery
• Material handling, conveyor & logistics equipment
• Textile machinery
• Wood working machinery
• Printing equipment
• Assembly automation production lines
• Water treatment & pump control system
• Special‑purpose automated machinery

Typical Equipment

Automatic assembly machines, multi‑station conveyor lines, positioning packaging machines, material feeding systems, textile looms, wood engraving equipment, material sorting systems, servo positioning equipment.

Warehouse reference scene for bulk supply: Suitable for industrial automation component warehouse stocking, export DDP bulk shipment.

5. Packing & Logistics Reference

• Condition: Original brand‑new complete set (CPU+expansion modules)
• Warranty: 12‑month manufacturer warranty
• Packing: Individual original export carton
• Suitable for bulk export order, DDP / FOB shipment support
