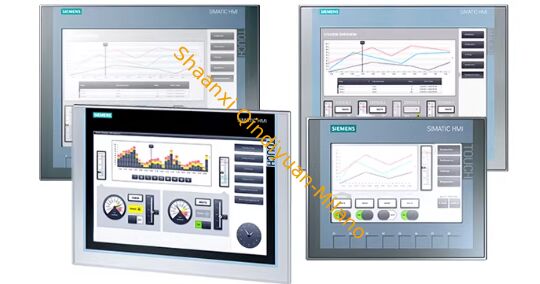

6AV2124-0QC02-0AX2 SIMATIC HMI 24V DC TP1500 Comfort Basic Model

Title:Siemens 6AV2124‑0QC02‑0AX2 SIMATIC HMI TP1500 Comfort |15.4" Widescreen Touch Panel 24V DC IP65

The 6AV2124‑0QC02‑0AX2 SIMATIC TP1500 Comfort is standard Comfort‑series touch HMI panel from Siemens. Equipped with 15.4‑inch widescreen TFT touch display, powered by DC24V supply. It performs on‑site machine operation, parameter setup, real‑time process monitoring, trend display, alarm notification and recipe management.

Native communication with S7‑1200/S7‑1500/S7‑300/S7‑400 PLC via PROFINET, MPI / PROFIBUS‑DP. Front panel IP65 protection, suitable for general industrial workshop environment. Note: This model entered phase‑out announcement since Oct 03,2024, available stock supply only.

• 15.4‑inch Widescreen TFT Touch Display 1280×800 resolution,16.7 million colors touch screen, good readability under factory‑site ambient light; multi‑language interface supported.
• IP65 Front‑panel Protection Front face IP65, rear IP20; standard panel flush mounting for cabinet installation, dust‑proof and splash‑water resistant for normal industrial workshops.
• Multi‑communication Onboard 2×PROFINET Ethernet(with integrated switch), MPI/PROFIBUS‑DP, 2×USB2.0, dual SD‑card slots; supports Modbus TCP, OPC UA client & server function.
• Full‑range Siemens PLC Compatibility Seamless connection with SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 series PLCs.
• Complete Comfort HMI Function Library Recipe management, data logging, trend curve visualization, alarm archive, multi‑level user permission control, built‑in web‑server.
• TIA Portal WinCC Comfort Engineering Configured by TIA Portal WinCC Comfort V14 SP1 or higher version with HSP package.
• Global Industrial Certifications CE, UL, UKCA, RoHS compliance, fit for worldwide export automation projects.

• Packaging Machinery
• General Manufacturing Automation
• Material Conveying Equipment
• Water Treatment
• Textile & Printing Equipment
• Standard Factory Production‑line

• Packaging machines, conveyor lines, mixing equipment, pumping control stations, general‑purpose factory on‑site operation panels, spare‑parts replacement for existing Siemens automation projects.

• Net weight: ~4.2 kg / pc
• Original factory separate export carton
• Condition: 100% brand‑new genuine Siemens
• Manufacturer standard warranty:12‑month
