MOOG G393-016 Frequency Converter With 16 A Rated Current Modbus Communication

1 pcs
MOQ
Negotiable
Price
MOOG G393-016 Frequency Converter With 16 A Rated Current Modbus Communication
Features Gallery Product Description Chat Now
Features
Specifications
Ambient Temperature Range: -10°C To 50°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Output Voltage: 0-480 V AC
Cooling Method: Forced Air Cooling
Display Type: LCD Or LED
Mounting Type: Wall-mounted Or Panel-mounted
Safety Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit Protection
Input Frequency: 50/60 Hz
Overload Capacity: 150% For 1 Minute
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Input Voltage: 200-480 V AC
Harmonic Mitigation: Built-in Or External Filters
Power Rating: 0.5 KW To 500 KW
Output Frequency: 0-400 Hz
Protection Class: IP20 To IP54
Highlight:

16 A Rated Current Frequency Converter

,

Modbus Communication Variable Frequency Drive

,

IP20 Protection VFD
Basic Infomation
Brand Name: MOOG
Certification: Brand new original
Model Number: G393-016
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description

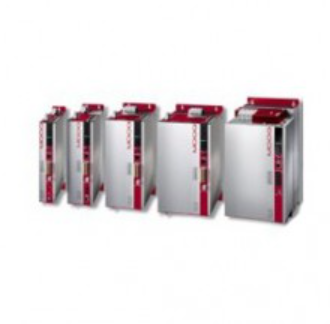

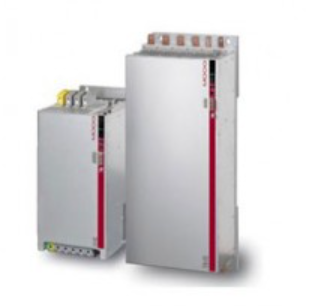

MOOG G393-016 Frequency Converter

This product is the MOOG G393-016 modular servo drive also called frequency converter from MOOG MSD series it supports 16 A rated continuous current and built in Modbus communication function for industrial servo motion control. It is a DC AC servo drive unit designed for high precision single axis or multi axis automation systems with air cooling standard structure.

The G393-016 drive adopts shared DC link design to realize energy regeneration between different axes which improves overall equipment energy efficiency. It completes fast closed loop control loop calculation to deliver stable dynamic response and smooth motor operation under heavy load conditions. The integrated Modbus communication interface supports stable data exchange with PLC upper computer and other automation control devices to realize remote parameter adjustment real time status monitoring and fault information reading.

Electrical Performance
Parameter Specifications Remarks
Rated Current (Irms) 16 A 8 kHz Switching frequency, 565 VDC operating condition
Peak Current (Irms) 33.6 A Short-time overload capacity, suitable for high dynamic loads
Bus Voltage Range 560 VDC ~ 770 VDC Requires MSD series AC-DC power supply unit
Switching Frequency 4/8/12/16 kHz Software programmable, balancing losses and dynamics
Control Interface EtherCAT/PROFINET Optional fieldbus, supports multi-axis synchronization
Feedback Type Incremental encoder, Resolver, SSI Supports high-precision position/speed closed loop
Physical and Environmental Specifications
Parameter Specifications Remarks
Cooling Method Air cooling / Liquid cooling Dual options available, liquid cooling can improve continuous output
Weight Approx. 4.9 kg (10.8 lb) Includes basic module, excludes accessories
Dimensions (W × H) 90 mm × 345 mm Size 3 (Standard size, suitable for dense rack mounting)
Protection Rating IP20 Rack mounting requirements
Operating Temperature 0°C to +45°C Air cooling; liquid cooling up to +55°C
Safety Certification IEC/EN 61800-5-2 Integrated Safe Torque Off (STO), no external safety PLC required
Structure and Core Features

Modular Design: Supports multi-axis splicing, enabling power sharing between modules via DC-L bus cables, reducing wiring complexity, suitable for multi-axis equipment integration.

High Reliability: Built-in overcurrent, overvoltage, overheat, and undervoltage protection; supports motor temperature sensor (PTC) connection, extending equipment lifespan.

Flexible Configuration: Optional internal braking resistor and conformal coating, suitable for harsh industrial environments.

Ease of Use: Equipped with 7-segment display + buttons, USB and Ethernet interfaces, supporting local debugging and remote diagnostics, reducing maintenance costs.

Typical Application Scenarios

Industrial automated production lines (multi-axis robots, CNC machine tools)

Materials testing machines, hydraulic testing benches (high-precision force/position control)

Aerospace ground equipment, automotive manufacturing (high-dynamic operating conditions)

Wind power, new energy equipment (medium-power actuator drives)
