Weinview TK6100iV5WV Human Machine Interface HMI IP65 Front Panel Protection

1 pcs
MOQ
Negotiable
Price
Weinview TK6100iV5WV Human Machine Interface HMI IP65 Front Panel Protection
Features Gallery Product Description Chat Now
Features
Specifications
Communicationports: Ethernet, USB, RS-232, RS-485
Displaytype: Touchscreen LCD
Productname: Human-Machine Interface (HMI)
Mountingtype: Panel Mount
Highlight:

TK6100iV5WV Human Machine Interface HMI

,

Human Machine Interface HMI IP65
Basic Infomation
Brand Name: Weinview
Certification: Brand new original
Model Number: TK6100iV5WV
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Weinview TK6100iV5WV HMI Product Detail Page
1. Product Overview
Function Definition

Weinview TK6100iV5WV is a 10-inch industrial Human Machine Interface (HMI, touch screen operator panel) designed for automated industrial production lines. It acts as the interactive bridge between field operators and PLC, inverters, sensors and other automation controllers. Operators realize on-site parameter modification, real-time equipment data monitoring, fault alarm checking, production recipe calling and running status control via touch operation. With certified IP65 front panel protection, this unit adapts to dusty, splashing oil/water industrial workshops and supports long-term continuous 24-hour operation on all kinds of automated machinery.

2. Core Product Advantages
Advantage Category Detailed Highlights
✅ IP65 Waterproof & Dustproof Front Panel Front panel meets IP65 rating; resists splashing water, cutting oil, floating dust; easy to wipe contaminants; perfectly fits harsh production workshops
✅ Stable Industrial Hardware 32-bit 400MHz high-speed RISC processor; built-in isolated power supply; strong anti-interference against frequency converter, welding electromagnetic noise
✅ Rich Universal Communication Ports Dual serial ports (RS232 / RS485 2W/4W)
✅ Long Service Life Display 65536-color TFT LCD; 4-wire resistive touch panel with stable touch accuracy; wide temperature adaptability for indoor & semi-outdoor equipment
✅ Convenient Program Debugging Mini USB 2.0 download port; fast project upload/download via PC; supports EBPro configuration software, easy programming modification
✅ Rugged Environmental Adaptation Wide working temperature range; anti-vibration structure; no fan passive cooling to reduce failure points
3. Full Technical Parameter Table
Item Specific Specification
Model Weinview TK6100iV5WV
Screen Size 10-inch TFT LCD
Display 65536 colors, Resolution: 800×600
Touch Type 4-wire analog resistive touch; touch precision ±2% X/Y axis
Main Processor 32Bit RISC CPU, 400MHz
Memory Flash: 128MB; DRAM: 64MB
Communication Interface COM1: RS232 / RS485 2-wire /4-wire
COM3: RS485 2-wire
Mini USB 2.0 (program download only)
Front Protection Grade IP65 (NEMA 4 equivalent)
Rated Power Supply DC 24V ±20%, Max current 300mA
Operating Ambient Temp 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Humidity Resistance 10%~90% RH @40℃, non-condensing
Vibration Resistance 10~25Hz, 2G along X/Y/Z axis, continuous 30 mins
Physical Dimension 271mm (W) × 213mm (H) × 40mm (D)
Panel Cutout Size 260mm × 202mm
Net Weight 1.3kg
Certifications CE, RoHS, UL
System Software EBPro (EB8000 series configuration software)
4. Application Industries & Scenarios
Main Applicable Industries
  1. General Machinery Automation: Injection molding machines, blow molding equipment, packaging machines, textile machinery, printing machinery
  2. Environmental & Water Treatment: Sewage treatment equipment, water supply automation, waste gas treatment control cabinets
  3. HVAC & Energy: Air compressor stations, heating boiler control, new energy equipment
  4. Food & Beverage: Automated filling lines, conveyor batching equipment
  5. Chemical & Building Materials: Mixing equipment, ceramic processing automation

5. Packing & Logistics Info

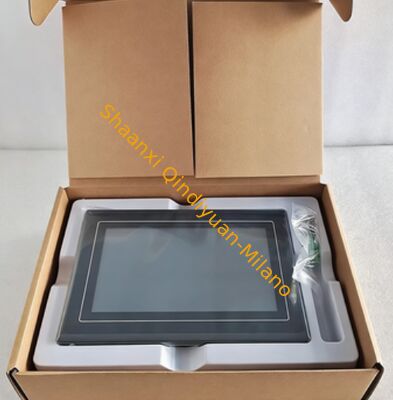

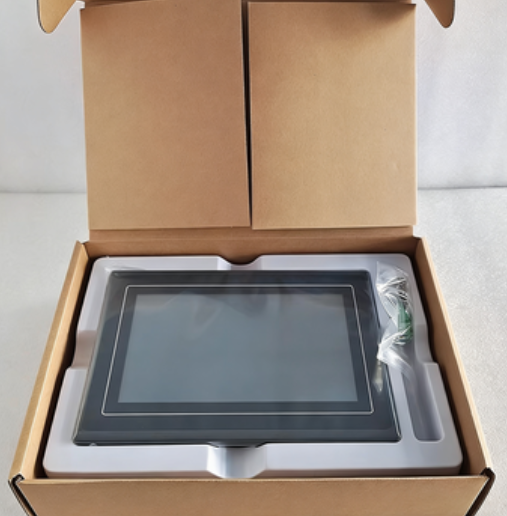

  • Outer package: Standard export carton with anti-collision foam inner lining
  • Single package gross weight: 1.7kg
  • Supply capacity: Stable bulk supply; lead time 3~7 working days for in-stock goods
  • Supporting documents: Commercial invoice, packing list, CE certificate, factory test report, export customs file
6. Matching Notes for Foreign Trade
  1. IP65 protection only covers the front operation panel; the rear wiring area is non-waterproof, needs closed control cabinet installation
  2. All serial communication supports global mainstream PLC protocols, no extra adapter needed for European, Asian and American equipment
  3. Resistive touch supports glove operation, widely recognized for heavy-duty factory overseas projects
