Weinview MT6070iH1WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection

1 pcs
MOQ
Negotiable
Price
Weinview MT6070iH1WV 7-inch Touchscreen LCD HMI with 24V DC Operating Voltage and IP65 Front Panel Protection
Features Gallery Product Description Chat Now
Features
Specifications
Resolution: 800 X 480 Pixels
Storagetemperaturerange: -30°C To 70°C
Productname: Human-Machine Interface (HMI)
Memory: 128 MB RAM, 256 MB Flash
Mountingtype: Panel Mount
Inputmethod: Capacitive Touch
Displaytype: Touchscreen LCD
Screensize: 7 Inches
Dimensions: 190 Mm X 140 Mm X 40 Mm
Operatingtemperaturerange: -20°C To 60°C
Operatingsystem: Embedded Linux
Operatingvoltage: 24 V DC
Material: ABS Plastic
Highlight:

7-inch Touchscreen LCD HMI

,

24V DC Operating Voltage HMI

,

IP65 Front Panel Protection Touchscreen Panel
Basic Infomation
Brand Name: WEINVIEW
Certification: Brand new original
Model Number: MT6070iH1WV
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 999 PCS
Product Description

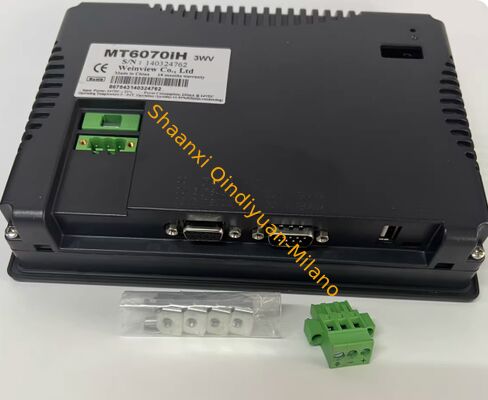

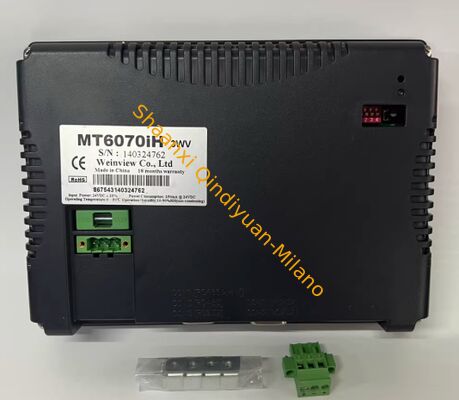

Weinview MT6070iH1WV Industrial Touchscreen HMI
The MT6070iH1WV is an industrial human-machine interface (HMI) from Weintek's classic MT6070iH series, featuring identical core hardware to the MT6070iH model. This HMI serves as an operation and monitoring panel for automated equipment in industrial environments.
Core Specifications
Display Features
Screen Size 7-inch widescreen TFT LCD
Resolution 800 × 480 pixels
Colors 65,536 colors
Backlight LED (30,000 hours lifespan)
Brightness 500 cd/m²
Contrast Ratio 500:1
Viewing Angle 70°/50°/70°/70° (T/B/R/L)
Processor & Memory
CPU 32-bit RISC 400MHz processor
Memory 64MB DDR2
Storage 128MB flash memory
Clock Built-in real-time clock (RTC)
Touch Interface
4-wire resistive touchscreen with >80% light transmittance and minimum 1 million touch cycles durability.
Communication Interfaces
  • Com1: RS-232/RS-485 2w/4w
  • Com2: RS-232
  • Com3: RS-232/RS-485 2w
  • USB 1.1 host port
  • USB 2.0 high-speed device port (program download)
Power Requirements
24VDC (±20% fluctuation), 250mA consumption at 24V with built-in power isolation protection.
Physical Dimensions & Protection
Dimensions 200 × 146 × 42.5mm
Panel Opening 192 × 138mm
Weight Approximately 0.85kg
Protection Rating IP65/NEMA4 front panel
Environmental Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Humidity 10% to 90% RH (non-condensing)
Cooling Fanless design
Software & Certifications
Compatible with EB8000 V2.0 and above programming software, running on Windows CE.NET 5.0 operating system. Compliant with CE and FCC Class A electromagnetic compatibility standards.
Applications & Compatibility
Ideal for visual operation, data monitoring, and parameter setting with industrial controllers including PLCs and frequency converters. Compatible with Weintek original products and equivalent models from brands such as MEINTEK. Commonly used as equipment accessories or direct replacement parts for maintenance and upgrades.
