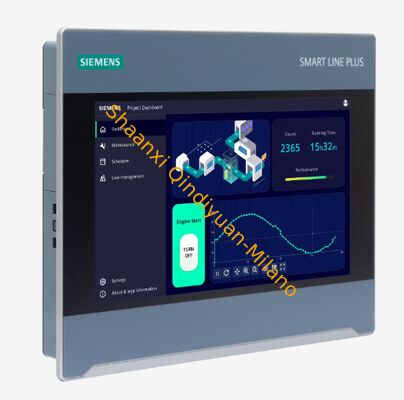

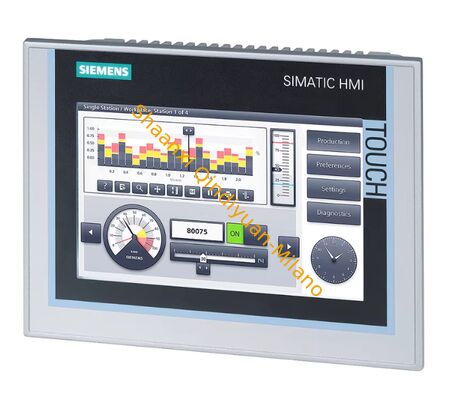

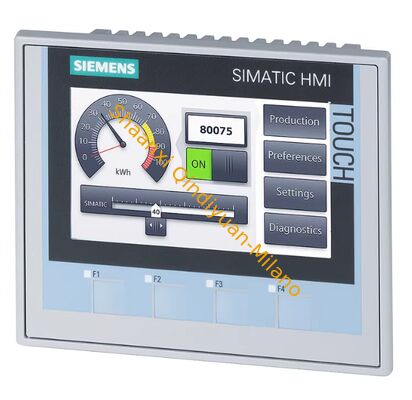

Siemens 6AV2124-0JC01-0AX0 SIMATIC HMI Comfort Panel 9" widescreen TFT display, touch operation, 16 million colors, PROFINET interface

1pcs
MOQ
Negotiable
Price
Siemens  6AV2124-0JC01-0AX0 SIMATIC HMI Comfort Panel 9" widescreen TFT display, touch operation, 16 million colors, PROFINET interface
Features Gallery Product Description Chat Now
Features
Specifications
Communicationports: Ethernet, RS232, RS485
Operatingtemperaturerange: -20°C To 60°C
Supportedprotocols: Modbus, Profibus, CANopen
Mountingtype: Panel Mount
Inputmethod: Capacitive Touch
Productname: Human-Machine Interface (HMI)
Screensize: 7 Inches
Displaytype: Touchscreen LCD
Operatingsystem: Embedded Linux
Operatingvoltage: 24 V DC
Enclosurerating: IP65
Memory: 128 MB RAM, 256 MB Flash
Dimensions: 190 Mm X 140 Mm X 40 Mm
Storagetemperaturerange: -30°C To 70°C
Resolution: 800 X 480 Pixels
Highlight:

Siemens HMI Comfort Panel 9 inch

,

SIMATIC HMI touch screen display

,

PROFINET interface HMI panel

Basic Infomation
Place of Origin: Germany
Brand Name: SIEMENS
Model Number: 6AV2124-0JC01-0AX0
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
SIMATIC HMI Comfort Panel TP900
Product Overview

The Siemens 6AV2124-0JC01-0AX0 SIMATIC HMI Comfort Panel features a 9-inch widescreen TFT display with touch operation and 16 million colors. This industrial panel offers PROFINET, MPI/PROFIBUS DP interfaces, and comprehensive connectivity options for robust automation applications.

Key Specifications
Display
9" TFT widescreen, 800×480 WVGA, 16 million colors
Touch Operation
Projected capacitive touch with onscreen keyboard
Memory
12 MB configuration, 256 MB RAM, 512 MB Flash
Interfaces
PROFINET, PROFIBUS DP, MPI, 2×USB, 2×SD card slots
Power Supply
24 V DC, 18 W typical power consumption
Protection Rating
IP65 front, IP20 rear
Technical Details
Parameter Specification
Product Series SIMATIC HMI Comfort Panel
Order Number 6AV2124-0JC01-0AX0
Product Type TP900 Comfort
Operating System Windows CE 6.0
Display Dimensions 195 mm × 117 mm
Backlight LED, dimmable 0-100%, 80,000 hours MTBF
Direct Touch Buttons 40 as S7 I/O
Variables Capacity 2,048 per device, 400 per screen
Recipe Memory 2 MB (expandable), 300 recipes, 500 data records each
Mechanical Dimensions 274 mm × 190 mm × 63 mm (W×H×D)
Weight 1.9 kg (without packaging)
Operating Temperature 0°C to 50°C (vertical mounting)
Connectivity & Protocols
  • Industrial Ethernet with 2-port switch
  • PROFINET (supports IO and IRT from WinCC V12)
  • PROFIBUS DP and MPI interfaces
  • RS 485/422 combined interface
  • 2× USB 2.0 ports (Mini B and Type A)
  • 2× SD card slots
  • Protocols: TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, MODBUS, EtherNet/IP
Software & Configuration
  • Configuration via WinCC Comfort/Advanced/Professional (TIA Portal) from V11
  • 32 online and project languages
  • Web browser, PDF viewer, and media player
  • SIMATIC WinCC Sm@rtServer support
  • User management: 50 user groups, 32 user rights, 50 users
  • Archive capability: 50 archives with 20,000 entries each
  • Data storage formats: CSV, TXT, RDB
Certifications & Approvals
  • CE Mark
  • cULus Certification
  • ATEX Zone 2/22
  • IECEx Zone 2/22
  • Marine: GL, ABS, BV, DNV, LRS, Class NK
  • Class I Division 2 (cULus/FM)
