SIEMENS 6AV6648‑0EE11‑3AX0

Product Title

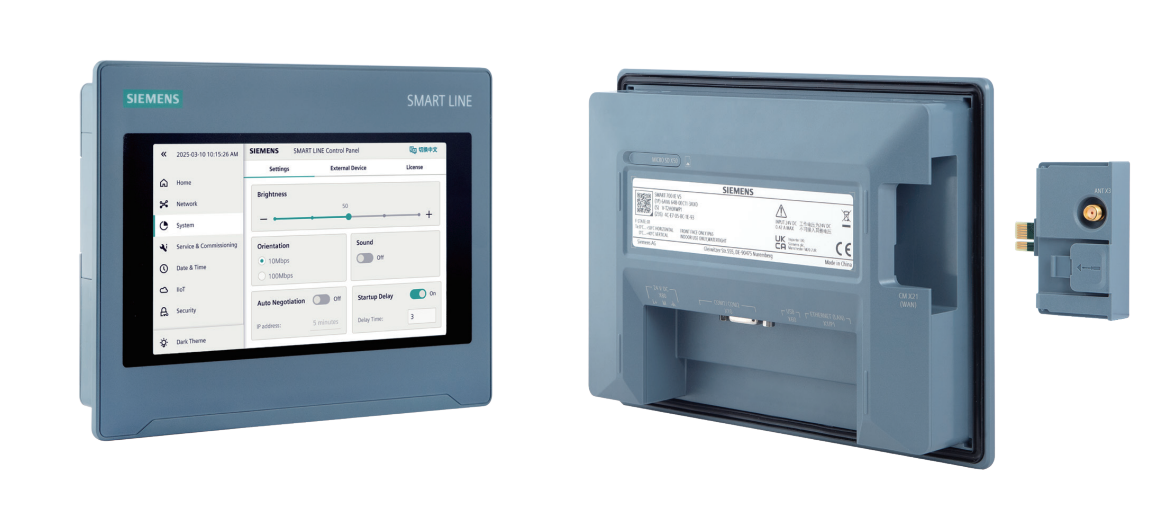

SIEMENS 6AV6648‑0EE11‑3AX0 SIMATIC HMI SMART 1000 IE V5 10.1" Widescreen TFT Touch Panel 16‑Million Colors

1. Product Overview

SIEMENS 6AV6648‑0EE11‑3AX0 is SIMATIC SMART 1000 IE V5 from SMART LINE V5 series, cost‑effective industrial touch HMI panel. It features 10.1‑inch widescreen TFT display with 16‑million true colors, resistive touch input, powered by DC 24V. Equipped with Ethernet RJ45, RS422/485 serial port, USB‑A host and Micro‑SD card slot. Supports JavaScript script, MQTT protocol and optional IoT expansion modules (WIFI /4G) for SIMICAS cloud remote access. Realizes machine parameter setup, real‑time monitoring, alarm notification, data logging and recipe management. Perfectly compatible with S7‑200 SMART, S7‑200CN, LOGO! and third‑party controllers via Modbus RTU/TCP. Configured by WinCC flexible SMART V5 software; projects from V3/V4 version can be migrated directly. Widely applied in small‑medium automation equipment for local operation and IoT‑enabled remote monitoring.

2. Core Advantages & Key Features

• ✅ 10.1‑Inch 16‑Million‑Color TFT Widescreen 10.1" widescreen, resolution 1024×600, 16‑million colors, LED backlight, clear visual effect for workshop field operation.
• ✅ Complete Interfaces & Micro‑SD Storage Expansion Ethernet RJ45 + RS422/485 serial + USB Host Type‑A + Micro‑SD slot; supports data logging storage, project backup without PC.
• ✅ IoT & JavaScript Script Support Built‑in JavaScript script function; optional WIFI/4G IoT expansion module, supports MQTT and SIMICAS cloud connection for remote equipment monitoring.
• ✅ Full‑feature Runtime Functions Real‑time alarm, historical data log, recipe management, trend curve, multi‑language switching, hardware RTC real‑time clock.
• ✅ Convenient On‑site Maintenance USB flash drive & Micro‑SD card for project upload/download and data backup, easy commissioning on site.
• ✅ Project Compatibility WinCC flexible SMART V5 configuration software; supports migration of V3/V4 project files, no full redesign required.
• ✅ Industrial‑grade Reliability IP65 front panel for cabinet installation, CE certified, stable performance for harsh factory environment. Cut‑out dimension 259 × 201 mm, same as V3/V4 for direct replacement.
• ✅ Wide PLC Compatibility Communicate seamlessly with S7‑200 SMART / S7‑200CN / LOGO!, support Modbus RTU/TCP for third‑party controllers.

3. Technical Parameters

4. Application Industries & Typical Scenarios

Main Industries

• Packaging Machinery
• Water Treatment & Pump Control
• HVAC Ventilation Equipment
• Textile Machinery
• Food & Beverage Machinery
• Printing & Labeling Equipment
• Conveyor & Material Handling Equipment
• General‑purpose Non‑standard Automation
• Projects requiring IoT remote monitoring

Typical Application Scenarios

Machine operation panel, production‑line monitoring system, pump‑fan control station, packaging machine HMI, small assembly equipment, water‑treatment operator terminal, equipment with cloud remote access demand.

5. Packing & Logistics & Reference Market Price

• Original brand‑new unit, original factory export carton
• Manufacturer standard 12‑month warranty
• Suitable for automation warehouse stocking, FOB / DDP bulk export shipment
