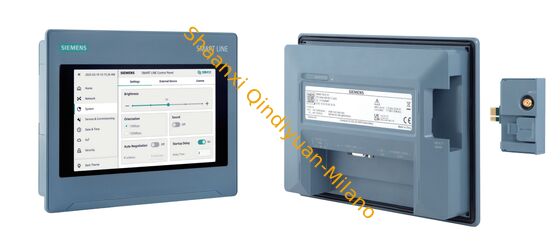

Home /Products/Human Machine Interface HMI/Siemens 6AV6648-0EE11-3AX0 SIMATIC HMI Smart LINE V5 Smart Panel, touch operation, 10.1" widescreen TFT display

Siemens 6AV6648-0EE11-3AX0 SIMATIC HMI Smart LINE V5 Smart Panel, touch operation, 10.1" widescreen TFT display

1pcs
MOQ
Negotiable
Price
Siemens 6AV6648-0EE11-3AX0 SIMATIC HMI Smart LINE V5 Smart Panel, touch operation, 10.1" widescreen TFT display
Features Gallery Product Description Chat Now
Features
Specifications
Output Method: Transistor
Color: Normal
Mounting_Type: DIN Rail
Condition: New Original With Sealed
Power_Consumption: 5 W
Output Points: 20
Number_of_Inputs: 14
Total Points: 60 Points.
Part Type: Sysmac CPM2A
Actual Value: Negotiabled Price
Operating_Temperature_Range: -20°C To 60°C
Model: S7-1200
Points: 40 (24DI+16DO)
Input Points: 36 Points.
CPU_Speed: 100 MHz
Highlight:

Siemens SIMATIC HMI Smart Panel

,

10.1 inch widescreen HMI display

,

touch operation HMI with warranty
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6648-0EE11-3AX0
Document: 6AV6648-0EE11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
SIMATIC HMI Smart LINE V5 Smart Panel
Product Overview

10.1" widescreen TFT display Smart Panel with touch operation, designed for industrial automation and machine control applications. Features 16 million colors, multiple interfaces, and robust construction for demanding environments.

Technical Specifications
Display & Touch
Display Size: 10.1" Widescreen TFT LCD
Resolution: 1280 x 800 pixels
Colors: 16 million colors
Touch Technology: 5-wire resistive touch screen
Brightness: 300 cd/m²
Backlight Life: 50,000 hours
Interfaces & Connectivity
Interface Type Specifications
Ethernet 1 x RJ45 (10/100 Mbps)
Serial 1 x RS-422/485 (for S7-200 SMART PLC)
USB 1 x USB 2.0 Host (Type A)
Expansion 1 x IoT expansion slot (4G/WIFI modules)
Real-Time Clock Built-in with battery backup
Power Requirements
Supply Voltage: 24 V DC
Voltage Range: 20.4 V DC to 28.8 V DC
Power Consumption: 7.5 W typical, 10 W max
Current Consumption: 312 mA at 24 V DC
RTC Battery: CR2032 lithium
Physical Dimensions
Width: 262 mm
Height: 176 mm
Depth: 50 mm
Cutout Dimensions: 250 mm x 164 mm
Weight: 1.2 kg
Installation: Panel mounting (recessed)
Environmental & Protection
Parameter Specification
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 10% to 90% (non-condensing)
Altitude Up to 2000 m above sea level
Protection Class IP65 (front panel), IP20 (rear side)
Vibration Resistance 5-150 Hz, 0.5 g (IEC 60068-2-6)
Shock Resistance 10 g, 11 ms (IEC 60068-2-27)
Software & Capabilities
Configuration Software: WinCC flexible SMART V5
Compatible Controllers: S7-200 SMART, S7-1200, S7-1500
User Memory: 8 MB flash
Maximum Tags: 4000 tags
Maximum Screens: 1000 screens
Maximum Alarms: 1000 alarms
Advanced Features
  • Communication Protocols: PPI, MPI, Profinet, Modbus RTU
  • Data logging to USB disk
  • Recipe management (up to 1000 recipes)
  • Trend display (up to 10 trend curves)
  • Remote access via Ethernet
  • LED indicators for power, status, and communication
Certifications & Compliance
CE Mark: Yes
UL Certification: Yes
CSA Certification: Yes
CCC Certification: Yes
RoHS Compliance: Yes
IEC 61131-2: Yes
