Rexroth VCP20.2DUN-003-NN-NN-PW Control Panel With 5.7" FSTN Grayscale Screen

Rexroth VCP20.2DUN-003-NN-NN-PW (IndraControl VCP20) is a compact industrial operator HMI panel equipped with a 5.7-inch FSTN grayscale screen. It serves as the on-site human-machine interaction unit for automation systems, enabling machine parameter setting, real-time running status monitoring, fault alarm display, manual operation control and production data recording. It is widely matched with Rexroth motion control, PLC and drive systems to realize localized operation and data visualization for automated machinery and production lines.

• ✅ 5.7" FSTN grayscale LCD, 320×240 resolution, 5 gray levels, wide viewing angle, temperature-compensated contrast adjustment, long backlight service life up to 30,000 hours
• ✅ Integrated full physical function keypad, 16 programmable function keys, stable operation under industrial vibration environment
• ✅ Rich communication interfaces: Ethernet, USB, DeviceNet, compatible with mainstream industrial bus protocols
• ✅ Front panel IP65 protection grade, cabinet internal IP20, suitable for workshop harsh working conditions
• ✅ 24V DC SELV power supply, built-in reverse polarity protection and self-reset fuse
• ✅ Compact panel mounting design, easy embedded installation on machine cabinet
• ✅ High compatibility with Rexroth IndraControl control platform, seamless system debugging and data interaction

• CNC machine tools & metal processing equipment
• Packaging machinery, printing equipment
• Plastic injection molding & rubber machinery
• Material handling, automated assembly lines
• Hydraulic & motion control production equipment
• Textile machinery, woodworking automation

The panel is installed on the machine cabinet door for field operators to monitor equipment operating curves, modify motion parameters, reset fault signals and execute manual jog operation. It is the standard HMI for supporting Rexroth drive and control solutions.

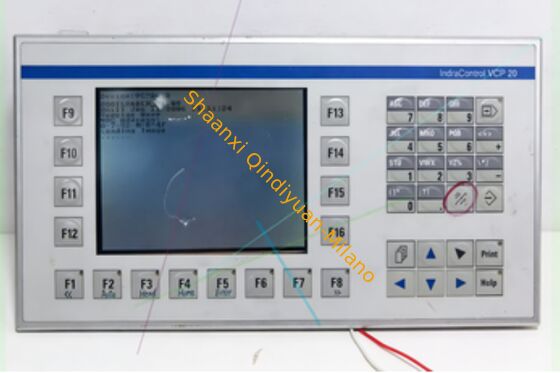

1. Main product photo: Rexroth VCP20.2DUN-003-NN-NN-PW physical panel (the attached picture)
2. Application scene: Installed on automatic machine cabinet / production line workstation
3. Warehouse picture: Original packaging stocked in industrial parts warehouse
4. Auxiliary diagram: Interface pinout diagram, installation cutout dimension drawing
