Schneider Electric Human Machine Interface HMI HMIST6400 7 Inch Touchscreen HMI

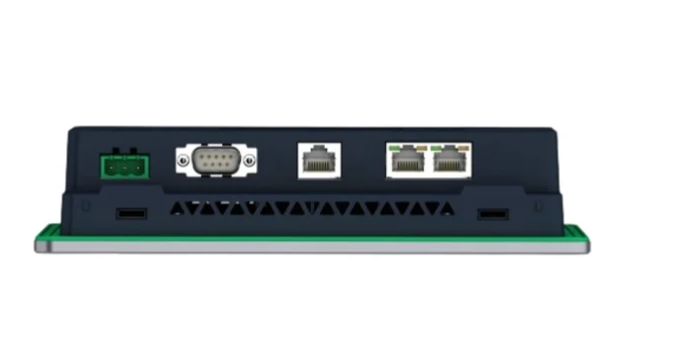

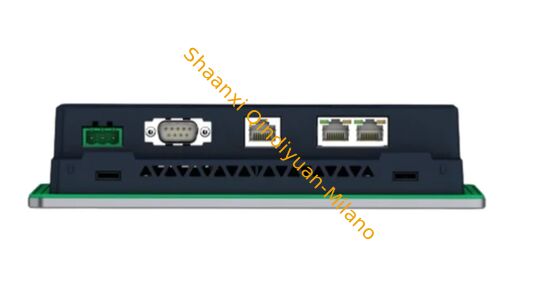

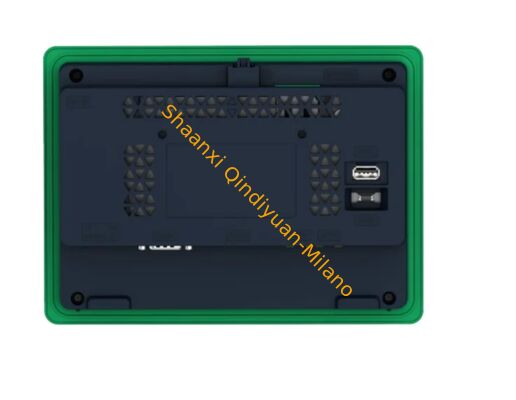

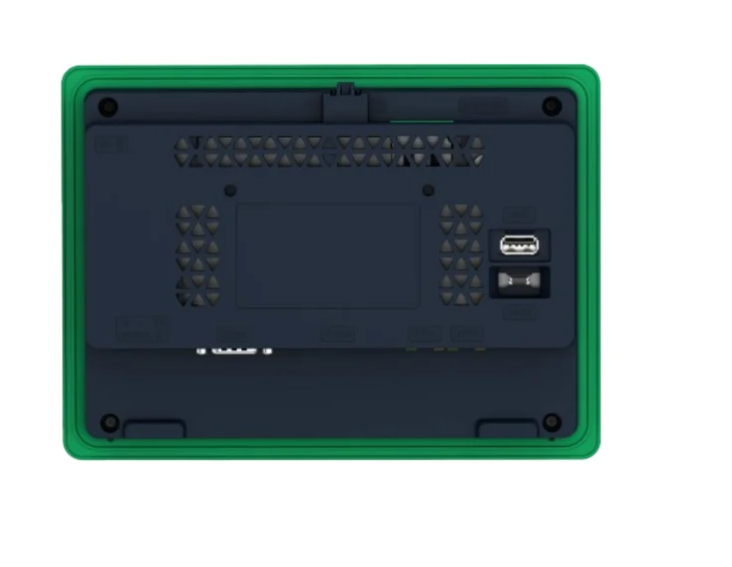

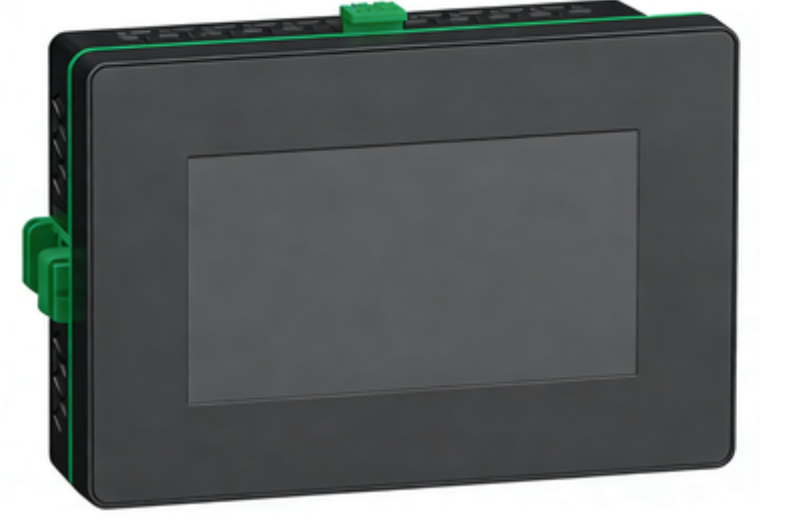

This basic HMI panel belongs to Schneider Electric's Harmony ST6 series. This one-touch resistive panel features an aluminum front panel with multi-color status indicators to display various operating modes. The HMI is 7 inches wide, supports 16 million colors, and has a resolution of 800x480 pixels (WVGA). It runs EcoStruxureOperator Terminal Expert software, providing an intuitive user experience. The panel is equipped with an 800 MHz ARM Cortex-A8 CPU, 1 GB of device memory, 128 MB of user data memory, and 512 KB of backup memory. The ST6 HMI supports two Ethernet ports, COM1 (RS-232C), COM2 (RS-485), one USB 2.0 Type-A port, and one USB 2.0 Micro-B port. Its dimensions are 208 mm (W) x 153 mm (H) x 45 mm (D), and it weighs 0.80 kg. This product is suitable for industries such as packaging, food and beverage, textiles, HVAC equipment, and compressors, as well as end users who need to maintain their network equipment. It complies with EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201, and has obtained CSA, CE, China RoHS, KC, and REACH certifications. This product series is designed to meet the needs of simple machine operators for good visibility, connectivity, EcoStruxure SecureConnect Advisor network security, and cost-effective equipment. Protection ratings include IP65F, Type 1, Type 4X (indoor use only), and Type 13 (front panel protection rating when properly installed in a chassis).
