Permanent Magnet Excited Synchronous Servo Motor Siemens 1FK7101-2AF71-1QA0 SIMATIC 1FK7

1
MOQ
1498USD
Price
Permanent Magnet Excited Synchronous Servo Motor Siemens 1FK7101-2AF71-1QA0 SIMATIC 1FK7
Features Gallery Product Description Chat Now
Features
Specifications
Size: 90x29x42mm
Lead Time: Approx 7 Days Normally
Continuous Current: 3.5 Arms
Protection Class: IP65
System Chipset: Intel 845GV
Sample: Charged Sampled Available
Maximum Operating Voltage: 325v
Working Viscosity: 16 ~ 25 Mm²/s
Payment: TT
Length: 15CM/30CM/50CM/100CM
Thermal Time Constant: 150s
Package: Standard
Peak Torque: 1.9 Nm
Frequency: 50HZ/60HZ
Highlight:

1FK7101-2AF71-1QA0

,

Permanent Magnet Excited Synchronous Servo Motor

,

Synchronous Servo Motor SIMATIC 1FK7
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 1FK7101-2AF71-1QA0
Document: 1FK7101-2AF71-1QA0.pdf
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 5PCS 1WEEK
Product Description

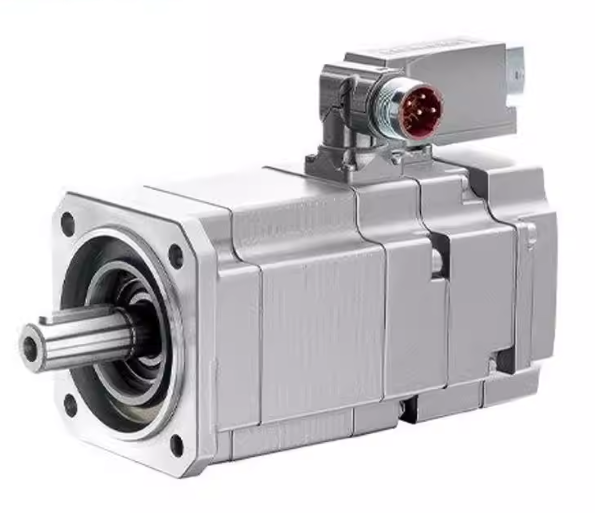

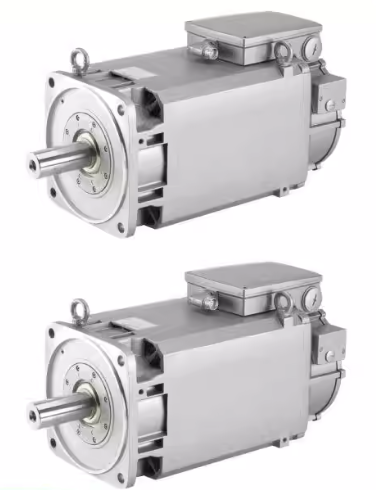

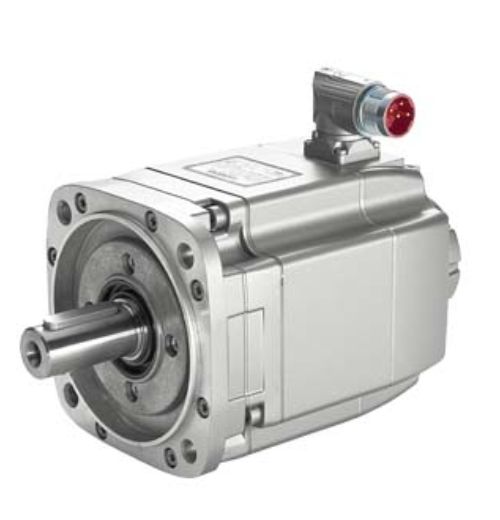

Siemens 1FK7101-2AF71-1QA0 SIMATIC 1FK7 Compact Servo Motor
Permanent magnet-excited synchronous servo motor designed for high-performance industrial applications with compact construction and advanced cooling technology.
Product Identification
Order Number 1FK7101-2AF71-1QA0
Product Series Siemens SIMATIC 1FK7 Compact Servo Motor
Motor Type Permanent magnet-excited synchronous servo motor
Electrical Specifications
Rated Power 1.0 kW
Rated Voltage 3AC 400 V (DC 600 V bus supply), 50/60 Hz
Rated Current 2.3 A
Rated Speed 3000 rpm
Rated Torque 3.18 Nm
Peak Current 6.9 A
Peak Torque 9.55 Nm
Peak Speed 6000 rpm
Mechanical Design
Design Compact construction, water-cooled
Mounting Type Flange mounting (IM B5 / IM V1), smooth shaft
Shaft Diameter 19 mm
Shaft Length 30 mm
Flange Size 100 mm (compliant with IEC 60034-7)
Cooling Method Closed-circuit water-cooled (double jacket)
Net Weight Approx. 12.5 kg
Encoder & Feedback System
Encoder Type 20-bit multi-turn absolute encoder
Interface EnDat 2.2
Multi-turn Resolution 4096 revolutions (battery-free)
Single-turn Resolution 20-bit (128000 steps/rev)
Incremental Signal Resolution 1024 pulses/rev
Environmental & Protection
Sealing Rating IP65 (motor housing), IP67 (shaft seal)
Operating Temperature -20 °C to +40 °C (no derating)
Storage Temperature -40 °C to +70 °C
Vibration Resistance 10 g (10 - 2000 Hz)
Shock Resistance 30 g (11 ms half-sine pulse)
Key Features
  • High-efficiency IE4 (Super Premium Efficiency) class
  • Advanced water-cooling system with G1/4 internal thread interfaces
  • PT1000 temperature sensor for real-time stator monitoring
  • Maintenance-free permanently lubricated shaft bearings
  • Comprehensive protection features: overcurrent, overvoltage, undervoltage, overtemperature, short-circuit
  • Bidirectional rotation (clockwise/counterclockwise)
  • Compatible with SINAMICS S120/S210/S220 servo drives
Compliance & Certification
CE, UL Recognized, cUL Recognized, RoHS compliant. Meets EN 61800-3, EN 61000-6-2, EN 61000-6-4, IEC 60034, and IEC 61800-7 standards.
