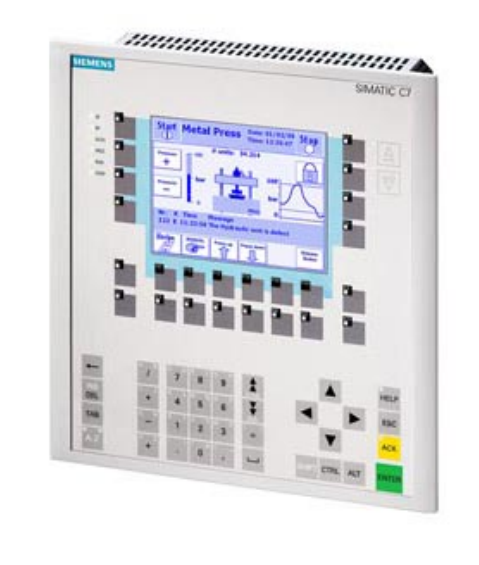

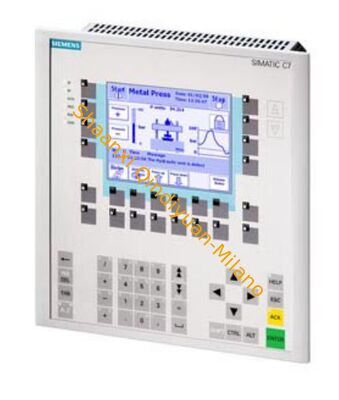

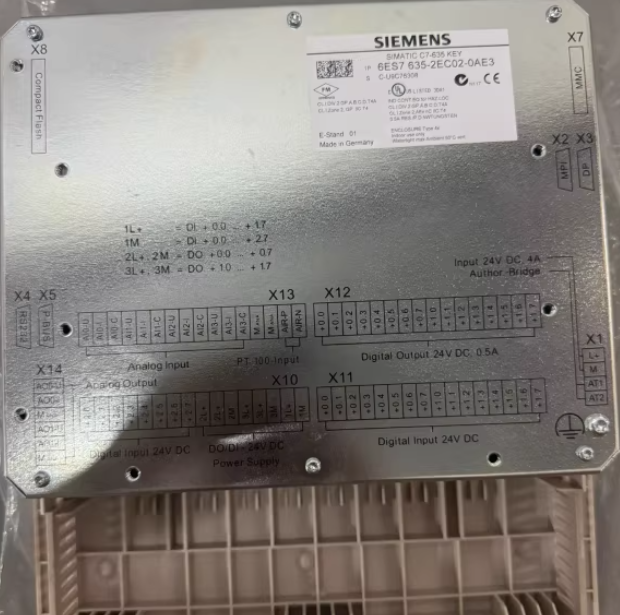

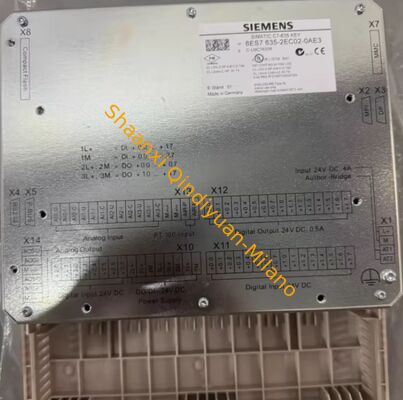

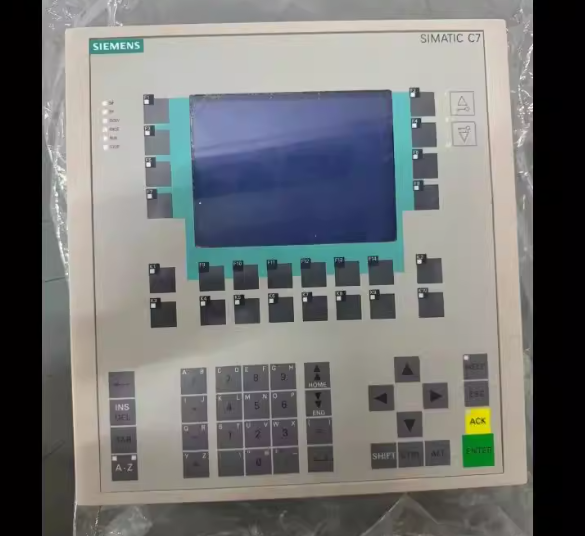

6ES7635-2EC02-0AE3 SIMATIC C7-635 KEYS Compact Unit With Integrated Components

6ES7635‑2EC02‑0AE3 is a discontinued all‑in‑one compact control unit from Siemens SIMATIC C7 series. It integrates S7‑300 CPU314C‑2DP PLC + OP170B keypad‑type operator panel into one single device, built‑with rich onboard I/O resources. It can accomplish logic control, motion positioning, data acquisition and on‑site human‑machine operation in one unit, no need to buy separate PLC and HMI panels. Equipped with MPI / PROFIBUS‑DP communication port, it can connect to other automation devices for distributed control.

Note: Micro Memory Card and terminal connectors are required for normal operation.

• All‑in‑One Integrated Design (PLC + Keypad HMI) Combines controller, I/O and keypad operation display panel in one unit, greatly save cabinet installation space and reduce wiring workload.
• Rich Built‑in I/O Resources 24 digital inputs,16 digital outputs,5 analog inputs,2 analog outputs, meets most mid‑small automation control requirements.
• Powerful Onboard Technological Functions 4‑channel high‑speed counter(max.60kHz),4 pulse outputs(2.5kHz),1‑axis positioning function, built‑in PID closed‑loop control.
• MPI & PROFIBUS‑DP Interface Can work as DP‑Master or DP‑Slave, realize high‑speed data exchange with remote I/O, drives and other controllers.
• Keypad Operation Mode Physical keys instead of touch screen, stable and anti‑interference, suitable for workshop environment with heavy dust, vibration.
• 96 KB Work Memory Enough storage space for medium‑complex control programs, support S7 standard communication functions.
• Industrial‑grade Stability Designed for long‑time non‑stop running in harsh workshop environment, widely used for retrofitting old production lines.

• Packaging machinery
• Conveyor & material‑handling equipment
• Water treatment system
• Textile production equipment
• Printing machinery
• Old‑factory automation retrofit projects
• Small process control equipment

Belt conveyors, mixer machines, pump control cabinets, packaging machines, textile processing machinery, legacy equipment upgrade.

• Net weight: 1.75 kg / pc
• Single export carton gross weight: 1.95 kg / pc
• Original brand‑new individual carton, 12‑month manufacturer warranty.
