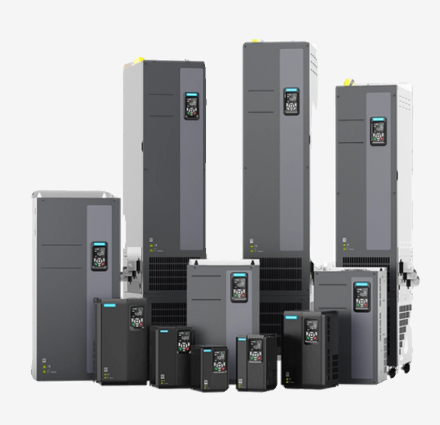

INOVANCE MD520-4T18.5B Compact Vector Drive High Torque Inverter

1
MOQ
660-750$
Price
INOVANCE MD520-4T18.5B Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Torque Response: <20ms (no PG Vector Control)
Output: Three-phase 0 - 220V
Overload Capacity: 150% For 1 Minute
Efficiency: Typically 95% To 98%
Highlight:

INOVANCE MD520 series frequency converter

,

three-phase 380V VFD drive

,

high-performance vector type inverter
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Certification: CO
Model Number: MD520-4T18.5B
Document: MD520_Br_EN_Singles_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model:INOVANCE MD520-4T18.5B
📦 Product Overview

The INOVANCE MD520-4T18.5B is a high-power compact variable frequency drive delivering 18.5 kW (25 HP) for heavy-duty three-phase AC motor control. As the top-tier model in the MD520 series, it combines advanced sensorless vector control (SVC) with a built-in braking unit and PID process control. Engineered for large industrial pumps, high-capacity fans, heavy-duty conveyors, compressors, and demanding OEM machinery, the MD520-4T18.5B delivers exceptional torque, efficiency, and connectivity for the most challenging industrial environments at an outstanding value proposition.

✨ Product Advantages
  • Compact Vector Drive — Advanced SVC delivers 150% starting torque at 0.5 Hz with ±0.5% speed accuracy for precision motor regulation under the heaviest loads
  • High Torque Inverter — Exceptional low-speed torque performance ensures smooth, stall-free startup of large machinery and high-inertia industrial loads
  • Built-in PID Process Control — Integrated closed-loop controller for precise flow, pressure, level, and temperature regulation without external PLC or PID modules
  • Built-in Braking Chopper — Integrated dynamic braking unit supports fast, controlled deceleration and precise stopping for rapid-cycle industrial applications
  • Industrial-grade Protection — Multi-layer safeguards including overcurrent, overvoltage, undervoltage, overload, phase-loss, short-circuit, and overtemperature protection
  • Full Automation Integration — Rich multi-function digital/analog I/O plus onboard RS485 Modbus RTU for seamless PLC, HMI, and SCADA connectivity
  • Energy Optimization — Built-in energy-saving algorithm automatically reduces power consumption under light-load conditions for lower operating costs
  • Rugged Industrial Construction — Conformal-coated PCB, independent air duct cooling, detachable multi-language keypad, and wide -10°C to 50°C operating range
📐 Technical Parameters
Model MD520-4T18.5B
Rated Power 18.5 kW / 25 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 38 A
Overload Capacity 150% for 60s / 180% for 3s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 220 × 310 × 200 mm
Weight Approx. 7.5 kg
Certifications ✔ CE ✔ RoHS
