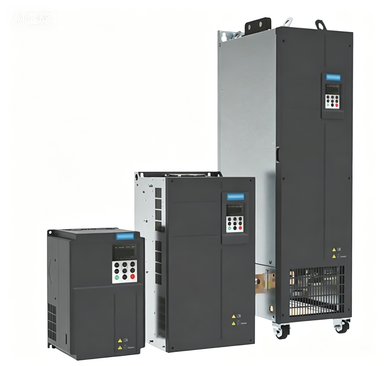

INOVANCE CS710-4T15GB Compact Vector Drive High Torque Inverter

1
MOQ
660-800$
Price
INOVANCE CS710-4T15GB Compact Vector Drive High Torque Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperaturerange: -20°C To 60°C
Inverter Power: 0.2kW~22kW
Scalability: Modular Expansion Supported
Inputvoltagerange: 100-240V AC
Highlight:

INOVANCE CS710 frequency converter

,

15KW three-phase VFD

,

lifting application VFD with warranty
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: CS710-4T15GB
Document: CS710_Br_EN_Spreads_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description

Model: CS710-4T15GB 15KW

Parameter Value
Brand HuiChuan INOVANCE
Rated Power 0.75 kW
Voltage Level Three-phase 380V (compatible with 400V power grid, supports 380~480Vac wide input range)
Series Positioning Special-purpose high-performance inverter for lifting equipment
Rated Output Current 2.1 A
Applicable Motor Power 0.75 kW (three-phase asynchronous motor)
Control Mode 📦 Product Overview

The INOVANCE CS710-4T15GB is a compact high-performance variable frequency drive delivering 15 kW (20 HP) of reliable motor control for three-phase asynchronous AC motors. Designed for demanding industrial environments, it combines sensorless vector control with a rugged hardware platform to deliver precise speed and torque regulation. As the mid-to-upper tier of the CS710 series, it is the go-to choice for heavy-duty pumps, large fans, high-inertia conveyors, and applications requiring substantial power in a compact footprint.

✨ Product Advantages
  • Compact Vector Drive — Advanced sensorless vector control (SVC) delivers superior dynamic response and steady-speed accuracy in a compact, easy-to-install form factor
  • High Torque Inverter — 150% rated torque at 0.5 Hz ensures confident startup of heavy and high-inertia loads without stalling or tripping
  • Built-in PID Process Control — Integrated closed-loop controller for pressure, flow, level, and temperature regulation, eliminating the need for external PID modules
  • Industrial-grade Protection — Multi-layer hardware and software safeguards including overcurrent, overvoltage, undervoltage, overload, phase-loss, short-circuit, and overtemperature protection
  • Rapid Auto-tuning — One-touch motor parameter identification minimizes commissioning time while maximizing control accuracy and energy efficiency
  • Versatile Connectivity — Rich multi-function digital/analog I/O terminals plus onboard RS485 Modbus RTU for seamless integration into automation networks
  • Built-in Braking Unit — Integrated braking chopper enables fast deceleration and precise stopping, reducing external component cost and panel space
  • Harsh Environment Ready — Conformal-coated PCB, independent air duct design, and wide -10°C to 50°C operating temperature for reliable operation in dusty, humid, or high-temperature settings
📐 Technical Parameters
Model CS710-4T15GB
Rated Power 15 kW / 20 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 32 A
Overload Capacity 150% for 60s / 180% for 10s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 200 * 290 * 190 mm
Weight Approx. 6.5 kg
Certifications ✔ CE ✔ RoHS
